DUCT TYPE ARGA30-60F

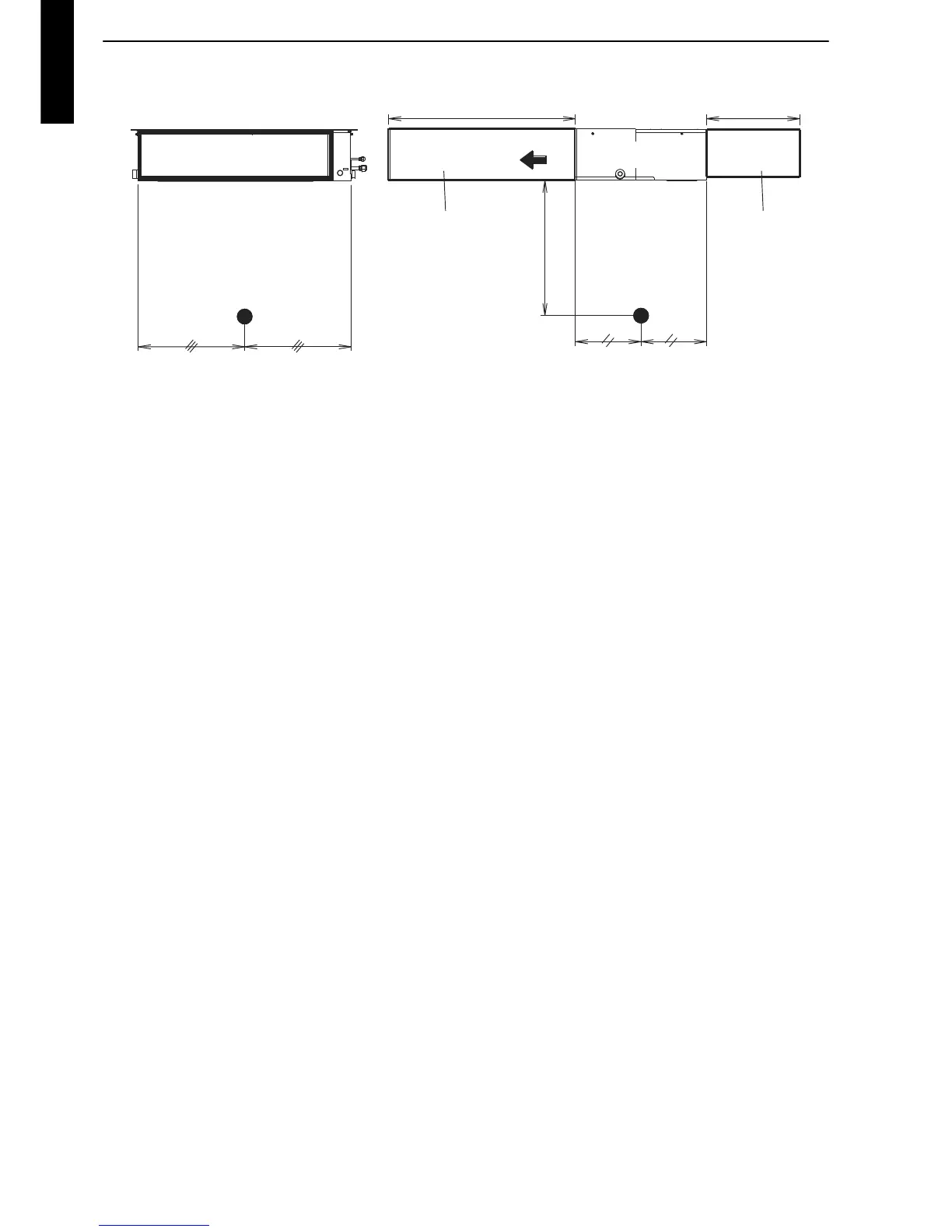

8-2. Sound level check point
Center
Front view
Microphone
Center
Side view
Product
Air
1.5 m
2 m 1 m
Microphone
Measuring duct
(Set the static pressure
as rating in this area.)
Measuring duct
