- 41 -
DUCT TYPE
ARGA30-60F
Model: ARGA60FHTA
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings
Component location

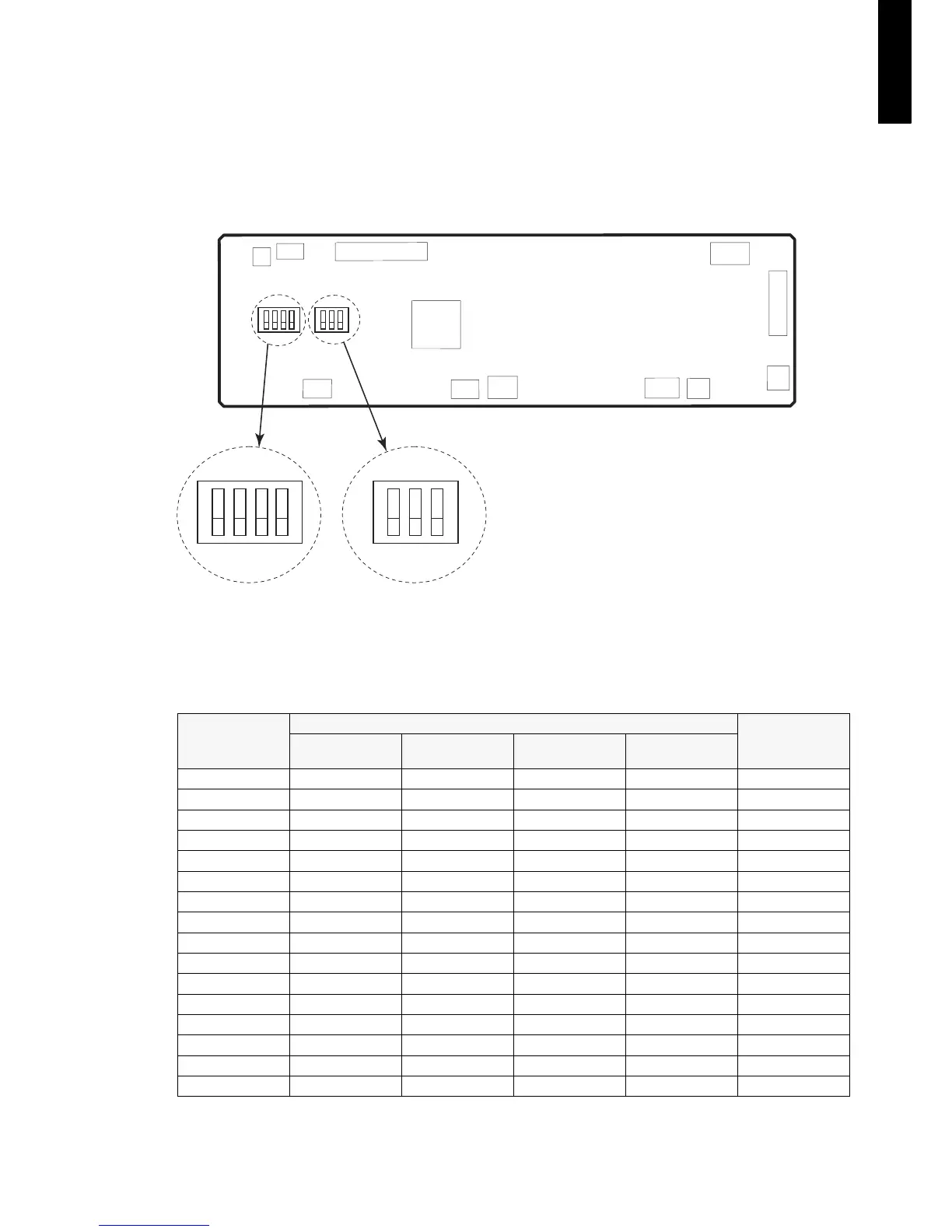

Components on the indoor unit main PCB used for the function settings are located as shown in
the following figure.
DIP switch setting
• Remote controller address setting (SW100)
When operating a number of indoor units by using a wired remote controller, DIP switch setting
for assigning unit number to each indoor unit is required.
DIP switches are normally set to make the unit number 00.
Remote
controller
address
DIP switch number
Factory
setting
1 2 3 4
00 OFFOFFOFFOFF ♦
01 ON OFF OFF OFF
02 OFF ON OFF OFF
03 ON ON OFF OFF
04 OFF OFF ON OFF
05 ON OFF ON OFF
06 OFF ON ON OFF
07 ON ON ON OFF
08 OFF OFF OFF ON
09 ON OFF OFF ON
10 OFF ON OFF ON
11 ON ON OFF ON
12 OFF OFF ON ON
13 ON OFF ON ON
14 OFF ON ON ON
15 ON ON ON ON
SW100
1234
SW101
123
