Fujitsu ARXG54KHTA Design & Technical Manual

8. External input and output
Connector Input Output Remarks
CN114 Control input —
See external input/output
settings for details.
CN115 — Operation status output
CN14 — Fresh air control output
CN15 — Auxiliary heater output
8-1. Preparation

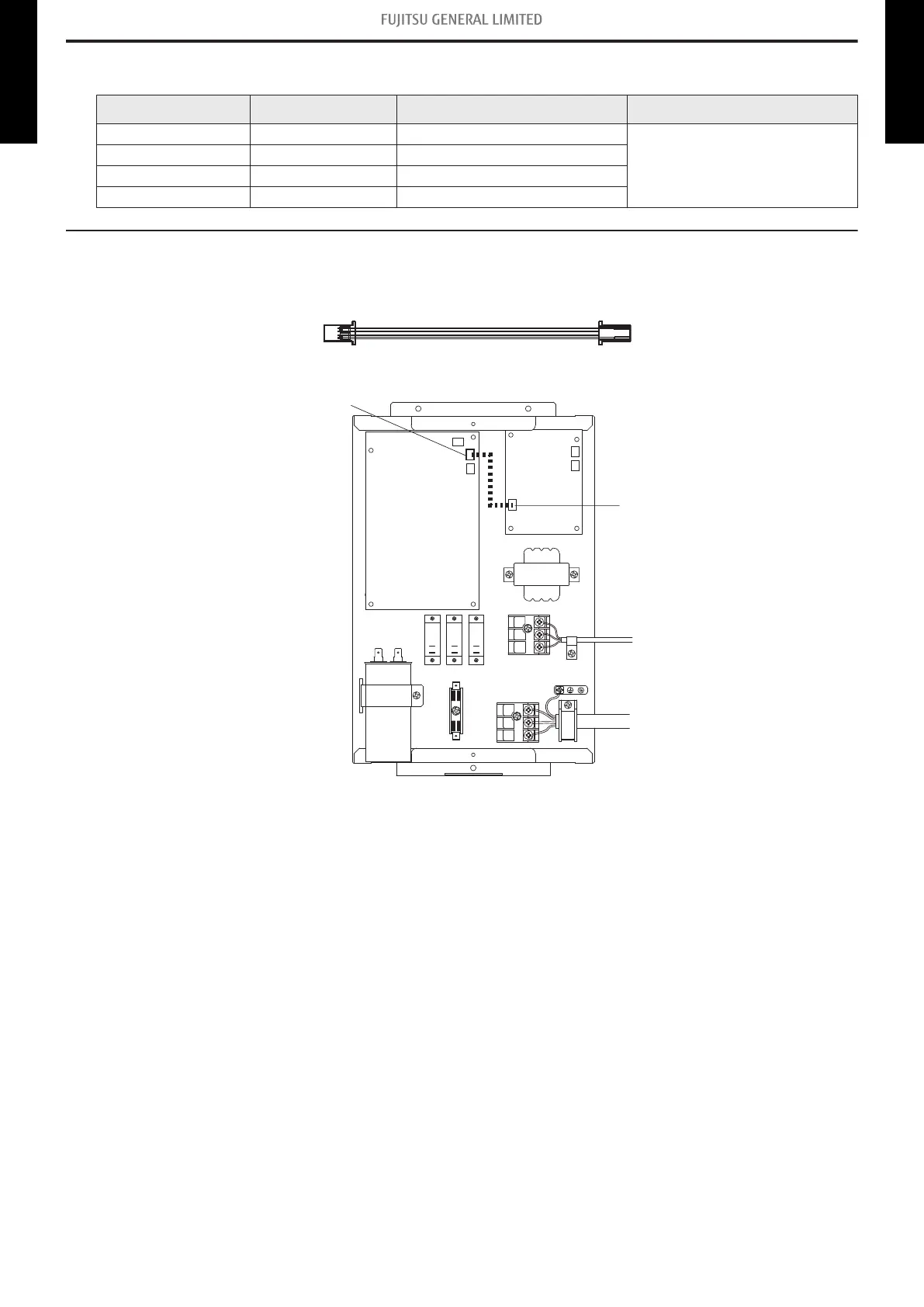

Before connecting the external input, preparation is necessary using the signal wire in the figure be-
low.
When the external input/output is used, connect the external signal wire as shown in the figure.
Power PCB
Control PCB
CN106
Black
CN5
Black
- 18 -
8-1. Preparation 8. External input and output
DUCT TYPE ARXG45, 54KHTA DUCT TYPE ARXG45, 54KHTA
