5. Wiring diagrams
5-1. Models: AOYG45KRTA and AOYG54KRTA
- 40 -

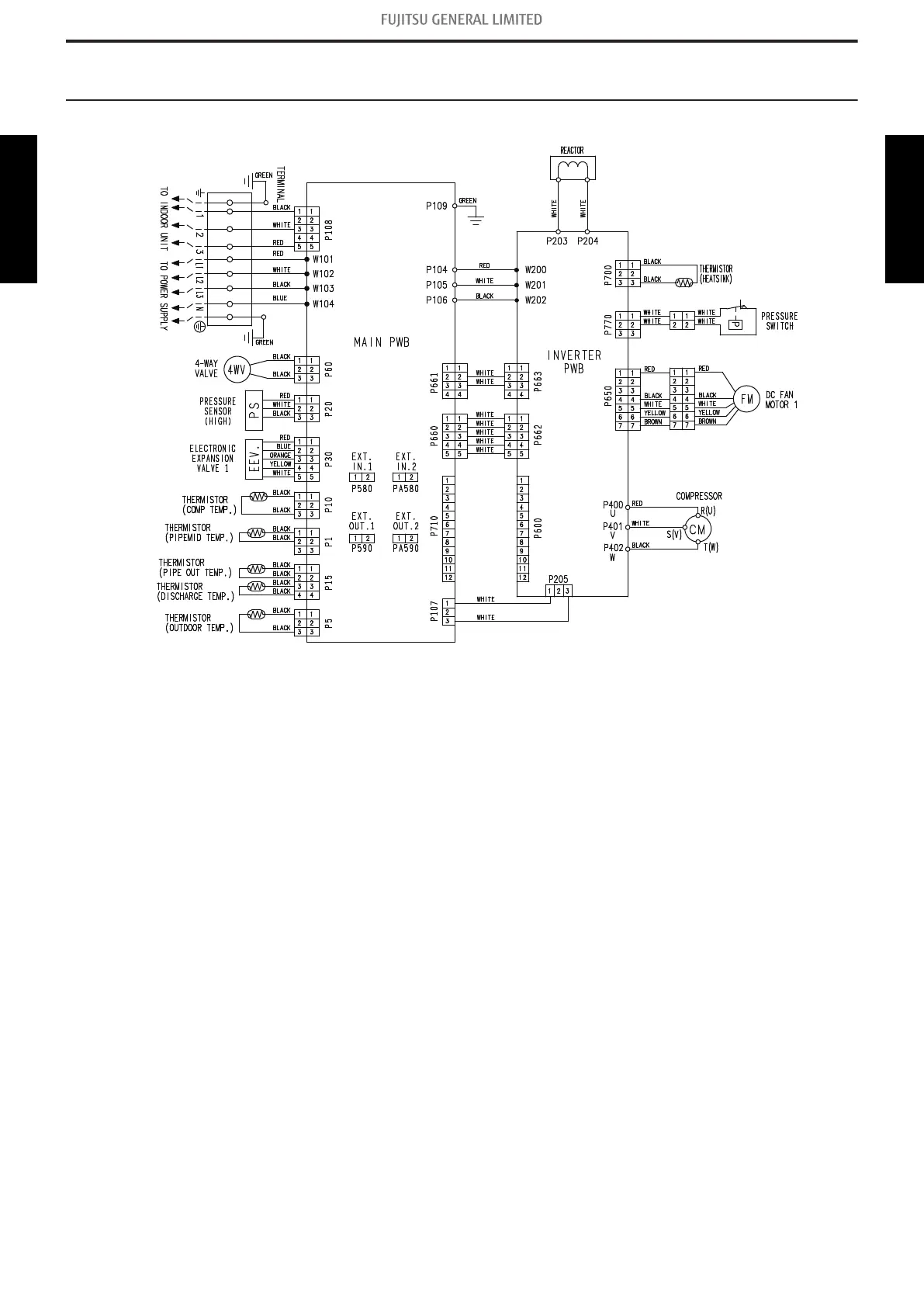

5-1. Models: AOYG45KRTA and AOYG54KRTA 5. Wiring diagrams
OUTDOOR UNIT
AOYG45, 54KRTA
OUTDOOR UNIT
AOYG45, 54KRTA
