Fujitsu AS*A09LKC Design & Technical Manual

- (01 - 10) -
WALL MOUNTED TYPE AS

A09-12LK
WALL MOUNTED TYPE AS

A09-12LK
FAN PERFORMANCE AND CAPACITY7.

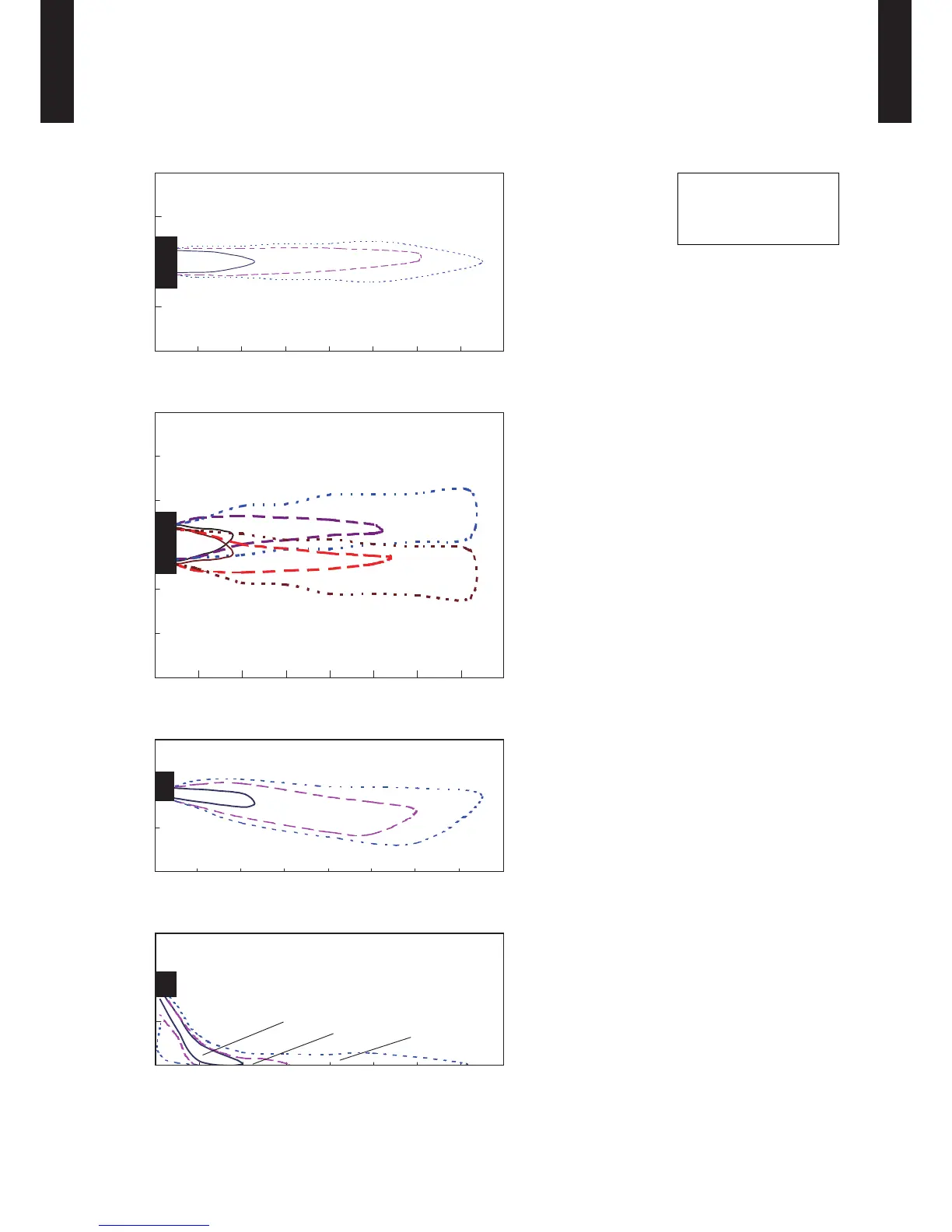

AIR VELOCITY DISTRIBUTION7-1.
MODEL

: AS

A09LK, AS

A12LK
Note:
Fan speed:High
Operation mode:FAN
Voltage:230V
2.0
1.0
0.5
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Center
0 1 2 3 4 5 6 7 8
2.0
1.0
1.0
0.5
0.5
3
2
1
0
1
2
3
Unit : m/s(m)
TOP VIEW
Vertical ap : Up
Horizontal ap : Right & Left
(m)
0 1 2 3 4 5 6 7 8
2.0
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Up
Horizontal ap : Center
(m)
0 1 2 3 4 5 6 7 8
2.0
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical ap : Down
Horizontal ap : Center
(m)
0 1 2 3 4 5 6 7 8
