OUTDOOR UNIT AO

R09-12LK
OUTDOOR UNIT AO

R09-12LK

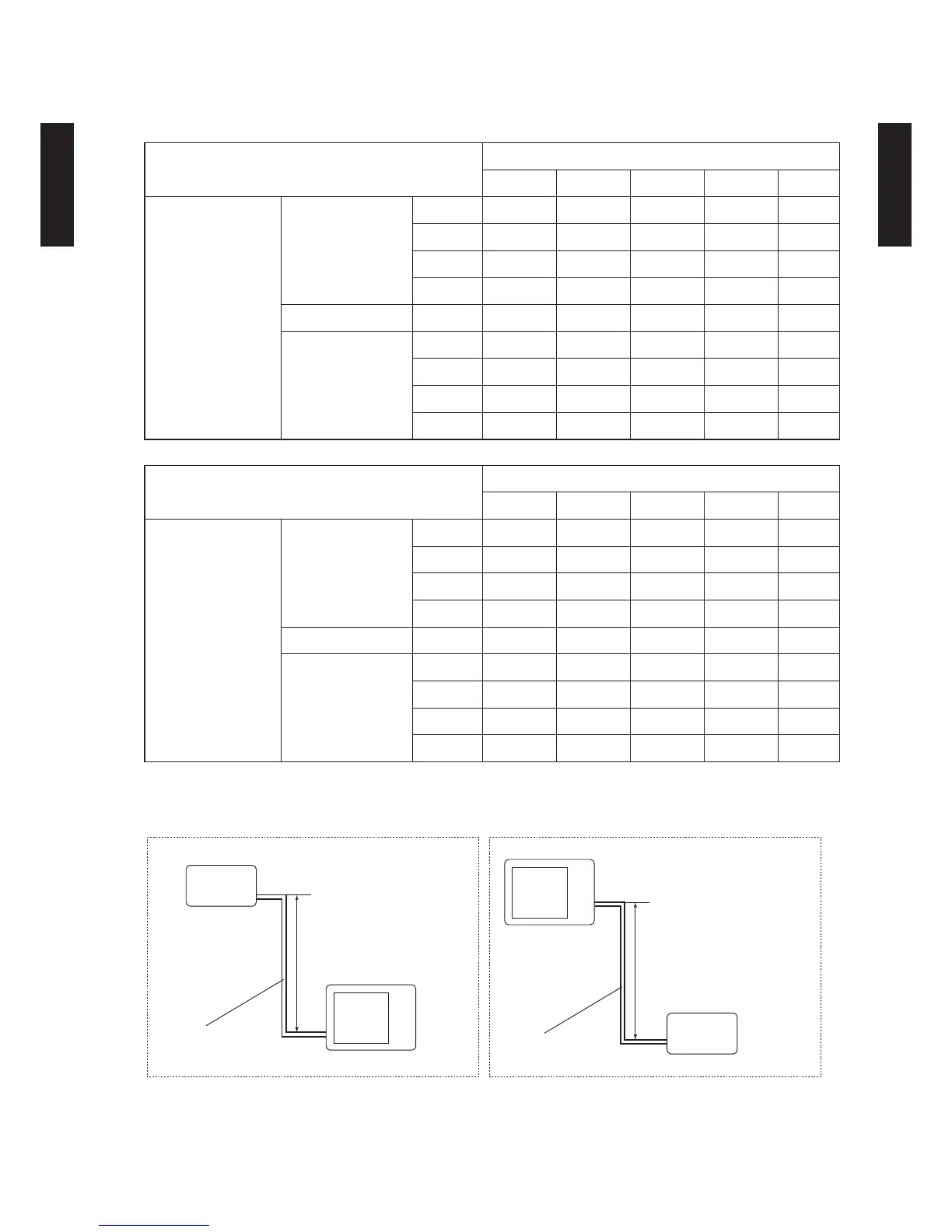

CAPACITY COMPENSATION RATE FOR PIPE LENGTH 5.
AND HEIGHT DIFERENCE
MODEL

: AO

R09LK
Height difference H

1 Indoor unit is upper than outdoor unit.

2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
5 7.5 10 15 20
Height difference H
(m)
Û
1
Indoor unit is upper
than outdoor unit.
15 - - - 0.832 0.822
10 - - 0.917 0.832 0.822
7.5 - 0.961 0.917 0.832 0.822
5 1.000 0.961 0.917 0.832 0.822
0 1.000 0.961 0.917 0.832 0.822
Û
2
Indoor unit is under
than outdoor unit
-5 0.995 0.956 0.912 0.828 0.818
-7. 5 - 0.954 0.910 0.826 0.816
-10 - - 0.908 0.824 0.814
-15 - - - 0.815 0.805
COOLING
Pipe length (m)
5 7.5 10 15 20
Height difference H
(m)
Û
1
Indoor unit is upper
than outdoor unit.
15 - - - 0.872 0.910
10 - - 0.961 0.886 0.925
7.5 - 0.979 0.965 0.890 0.929
5 0.992 0.983 0.969 0.893 0.933
0 1.000 0.991 0.976 0.901 0.940
Û
2
Indoor unit is under
than outdoor unit
-5 1.000 0.991 0.976 0.901 0.940
-7. 5 - 0.991 0.976 0.901 0.940
-10 - - 0.976 0.901 0.940
-15 - - - 0.901 0.940
