WALL MOUNTED TYPE AS

A09-12LK
WALL MOUNTED TYPE AS

A09-12LK
EXTERNAL CONNECT KIT11-2.
This kit allows to operate the air conditioner, such as stopping and starting, using an external
device, and output the operation status of the air conditioner.
Only operation and stop signals will be output. •
Use the remote control to check the operation mode, temperature, and airow.
Check the error information on the display area of the main unit.
Operation mode, temperature, and airow cannot be set by external input. Use the remote •
controller to set.
If the air-conditioner is activated by external input, it will operate in the settings before stop. •
To change the settings, use the remote controller.

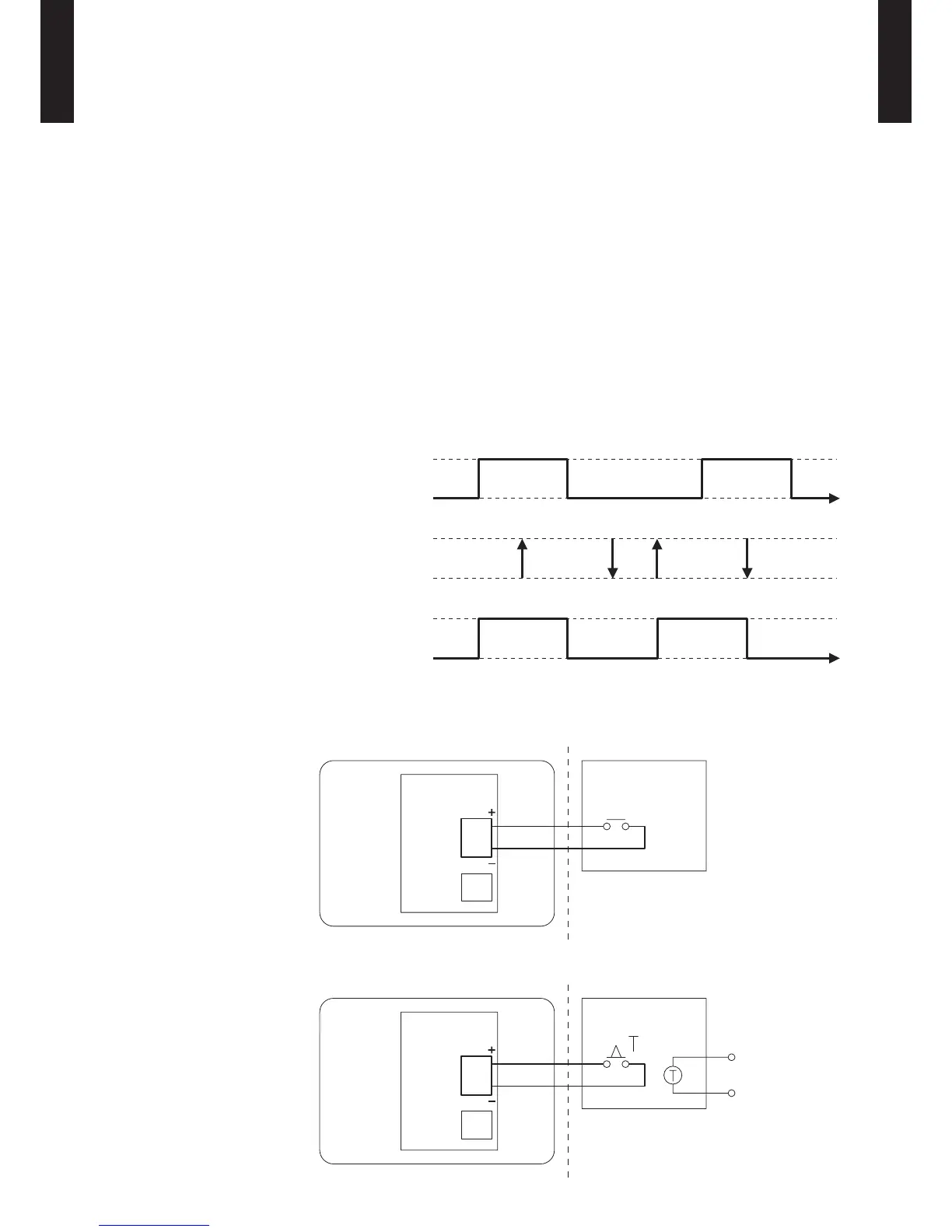

CONTROL INPUT SETTING11-2-1.
You can control air conditioner ON / OFF operation by external input. •
Signal specication
z
No voltage ON/OFF continuous signal. •
Contact capacity : DC12V 10mA •
ON
OFF
ON ONOFF OFF
OPERATION
STOP
External input signal
Remote controller signal
Indoor unit status
Installation example
z
For remote operation •
Orange
External
input
External
output
1
3
Yellow
Indoor unit External device
( Field supply )
Print circuit
board
For external timer operation •
Orange
External
input
External
output
1
3
Yellow
Indoor unit External device
( Field supply )
Print circuit
board
