WALL MOUNTED TYPE ASTG09-12KMCA WALL MOUNTED TYPE ASTG09-12KMCA
EXTERNAL OUTPUT11-2.
OPERATION STATUS OUTPUT

An air conditioner operation status signal can be output.

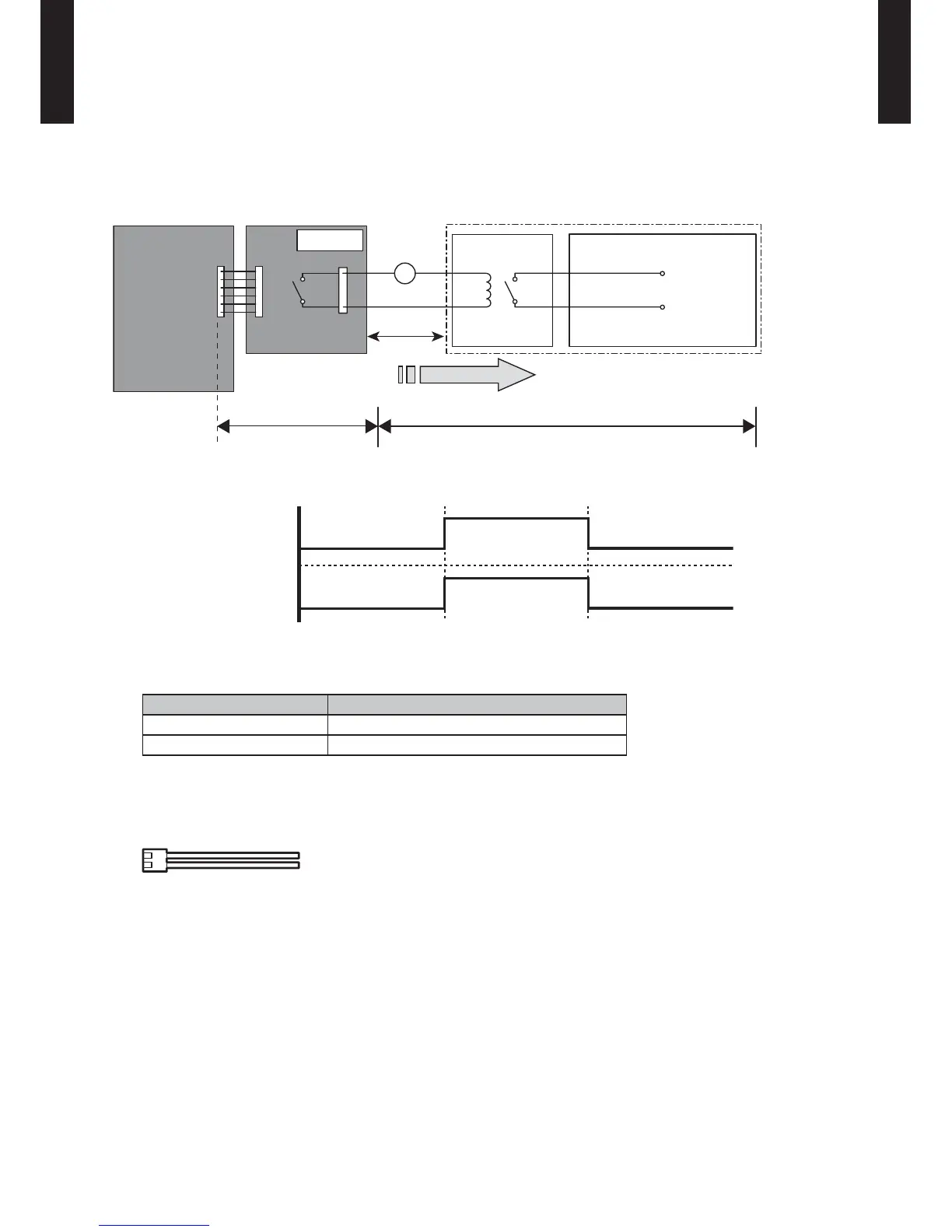

Circuit diagram example

*: Make the distance from the PC board to the connected unit within 10 m.
Relay spec.: Max. DC 24 V, 10 mA to less than 500 mA.
Field supplyOptional parts
Ex.) Display
Indoor unit
control PC board Communication kit Connected unit
Ex.) Relay unit
1
2
Signal
Relay
power
supply
V
Connector
10 m*
DC 24 V
ON
OFF
Operation
Stop
Indoor unit
Output signal
Parts (Optional)

Parts name
Model name
External connect kit UTY-XWZXZ5
Communication kit UTY-XCBXZ2
* For operating the EXTERNAL function, the wall mounted type requires the communication kit in addition to the wire
(UTY-XWZXZ5).
Wire (External output) : UTY-XWZXZ5
