Fujitsu ASTG09KMCA Design & Technical Manual

-
(
02 - 09
)
-
OUTDOOR UNIT AOTG09-12KMCA OUTDOOR UNIT AOTG09-12KMCA
OPERATION NOISE (SOUND PRESSURE)8.

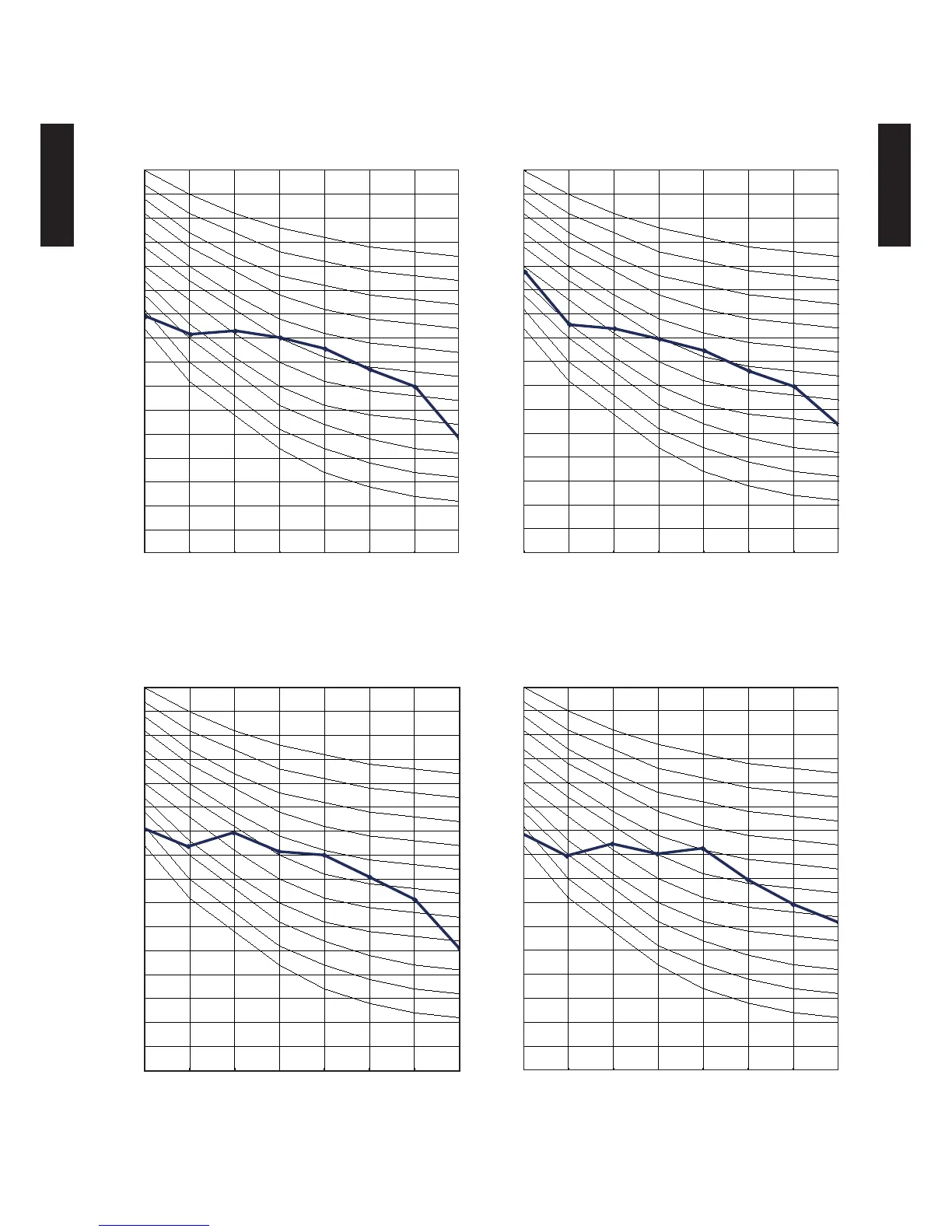

NOISE LEVEL CURVE8-1.
MODEL

:AOTG09KMCA
Cooling

Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating

Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating

Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
MODEL

:AOTG12KMCA
Cooling

NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
