Fujitsu ASTG09KMCA Design & Technical Manual

-
(
02 - 06
)
-

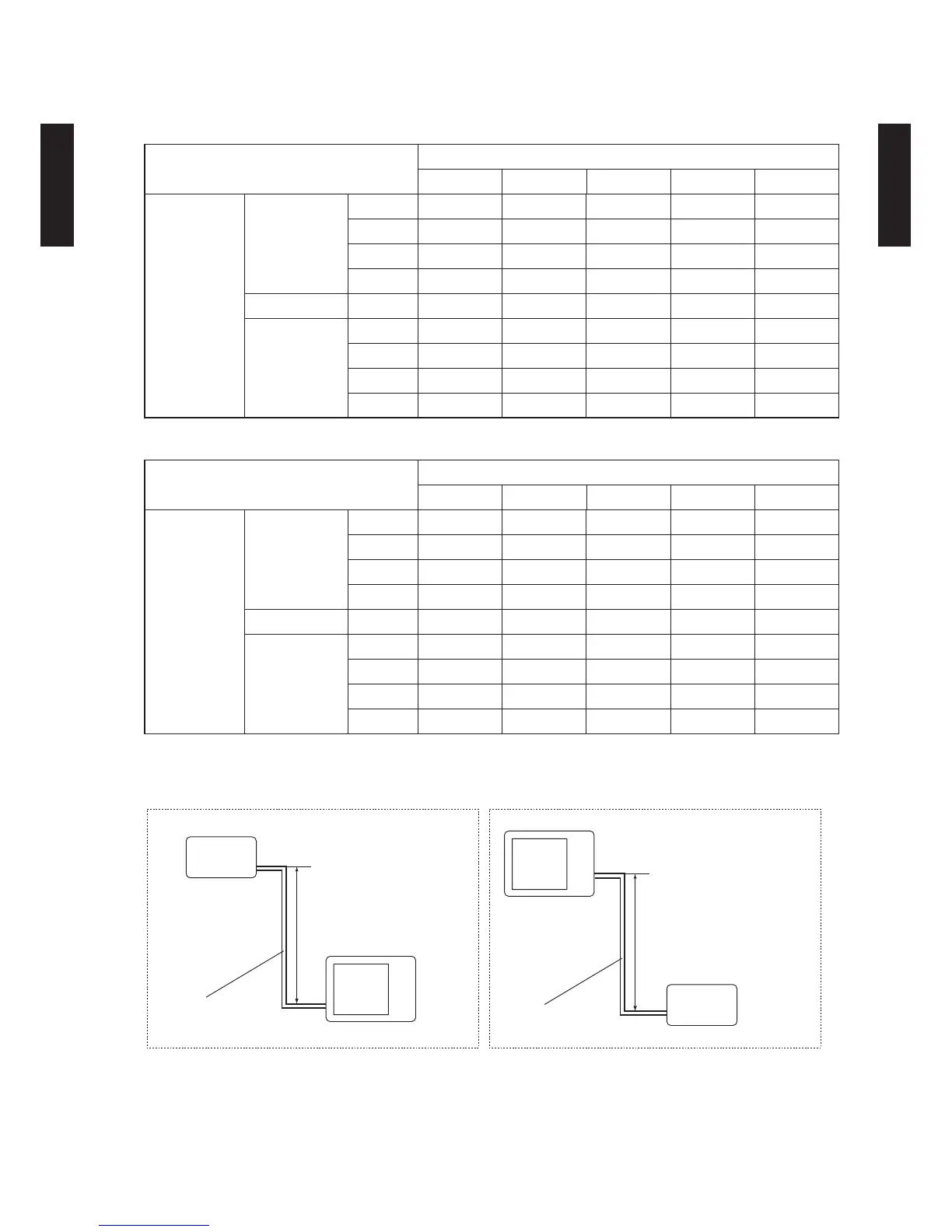

OUTDOOR UNIT AOTG09-12KMCA OUTDOOR UNIT AOTG09-12KMCA
MODEL

:AOTG12KMCA
Height difference H

1: Indoor unit is higher than outdoor unit.

2: Indoor unit is lower than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
57.5101520
Height
difference H
(m)

1
Indoor unit is
higher than
outdoor unit.
15 - - - 0.922 0.870
10 - - 0.974 0.922 0.870
7.5 - 1.000 0.974 0.922 0.870
5 1.006 1.000 0.974 0.922 0.870
0 1.006 1.000 0.974 0.922 0.870

2
Indoor unit is
lower than
outdoor unit.
-5 1.001 0.995 0.969 0.917 0.866
-7.5 - 0.993 0.967 0.915 0.863
-10 - - 0.965 0.913 0.861
-15 - - - 0.904 0.853
COOLING
Pipe length (m)
57.5101520
Height
difference H
(m)

1
Indoor unit is
higher than
outdoor unit.
15---0.917 0.883
10 - - 0.966 0.932 0.897
7.5 - 0.988 0.970 0.936 0.901
5 1.010 0.992 0.974 0.938 0.905
0 1.018 1.000 0.982 0.947 0.912

2
Indoor unit is
lower than
outdoor unit.
-5 1.018 1.000 0.982 0.947 0.912
-7.5 - 1.000 0.982 0.947 0.912
-10 - - 0.982 0.947 0.912
-15 - - - 0.947 0.912
H
H
