WALL MOUNTED TYPE
ASTG09-22LV
WALL MOUNTED TYPE
ASTG09-22LV

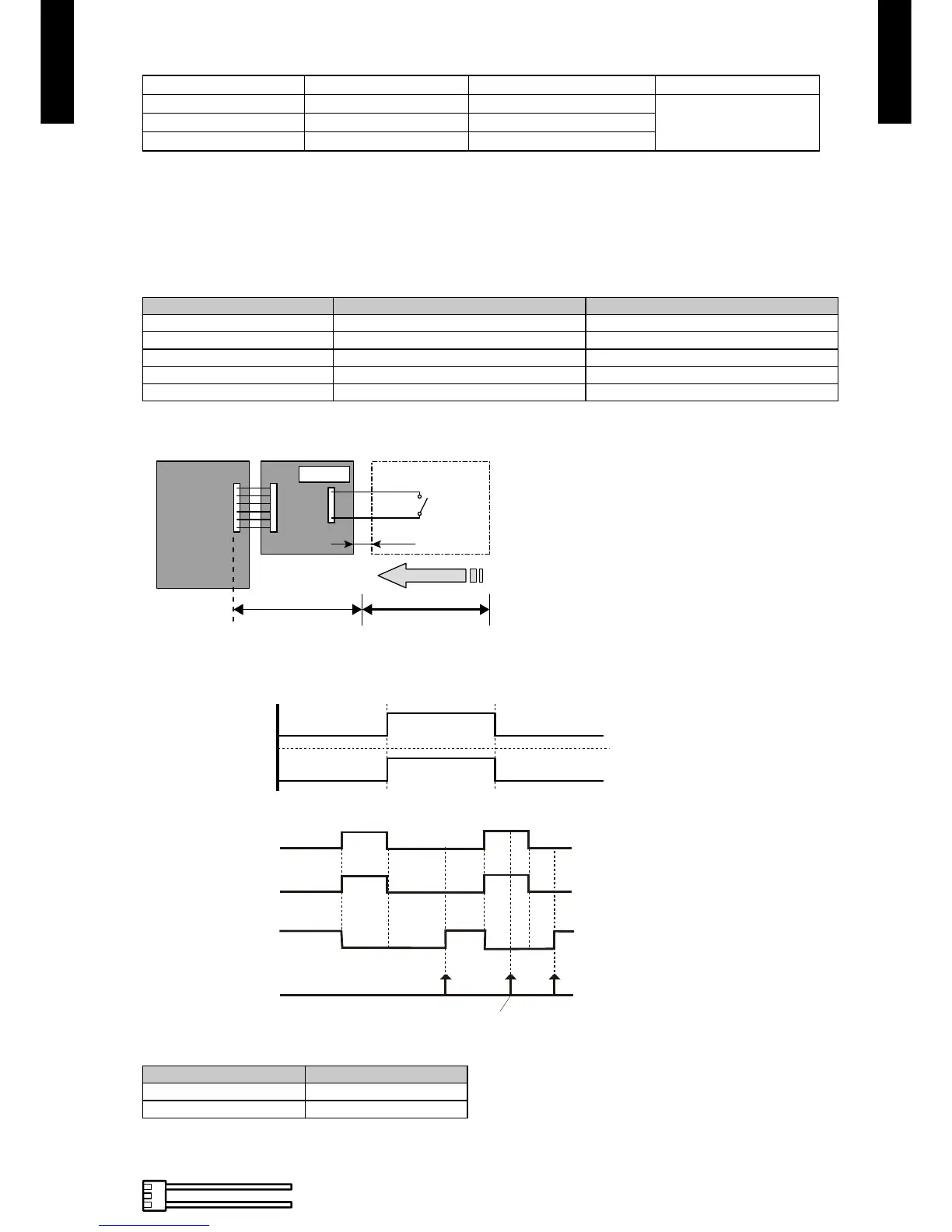

EXTERNAL INPUT & OUTPUT11.
Connector INPUT OUTPUT REMARKS
CNA01 Control input -
See external
input/output settings for
details.
CNB01 - Operation status output
CNB02 - Error status output
EXTERNAL INPUT11-1.
CONTROL INPUT (Operation/Stop or Forced stop)
The air conditioner can be remotely operated by means of the following on-site work.
"Operation/Stop" mode or "Forced stop" mode can be selected with function setting of indoor unit.
Unit operation is started at the following contents by adding the contact input of a commercial ON/OFF switch to a
connector on the external control PC board and turning it ON.
Unit operation Initial starting after turned power on Other than initial starting
Operation mode Auto changeover Mode at previous operation
Set temperature 24°C Temperature at previous operation
Air flow mode AUTO Mode at previous operation
Up-down air direction (swing) Standard air direction (swing OFF) Air direction at previous operation
Left-right air direction (swing) Standard air direction (swing OFF) Air direction at previous operation
Circuit diagram example
indoor unit
control PC board Communication kit Connected unit
Ex.) Switch
Connector
1
3
Signal
Field supply
Optional parts
*10 m
* Make the distance from the PC board to the connected unit within 10m.
Contact capacity : 24VDC or more, 10mA or more.
Please use the non-polar relays and switches.
When function setting is "Operation/Stop" mode ●
Operation
Stop
ON
OFF
Input signal
Indoor unit
When function setting is "Forced stop" mode ●
Remote controller
ON ON ON
Input signal
ON
OFF
Indoor unit
Operation
Stop
Command
Forced stop
Normal
Remote control
operation invalidity
Parts (Optional)
Parts name Model name
External connect kit UTY-XWZXZ5
Communication kit UTY-TWBXF
* For operating the EXTERNAL function, the Compact wall mounted type requires the communication kit in addition to
the wire (UTY-XWZXZ5).
Wire (External input) : UTY-XWZXZ5
