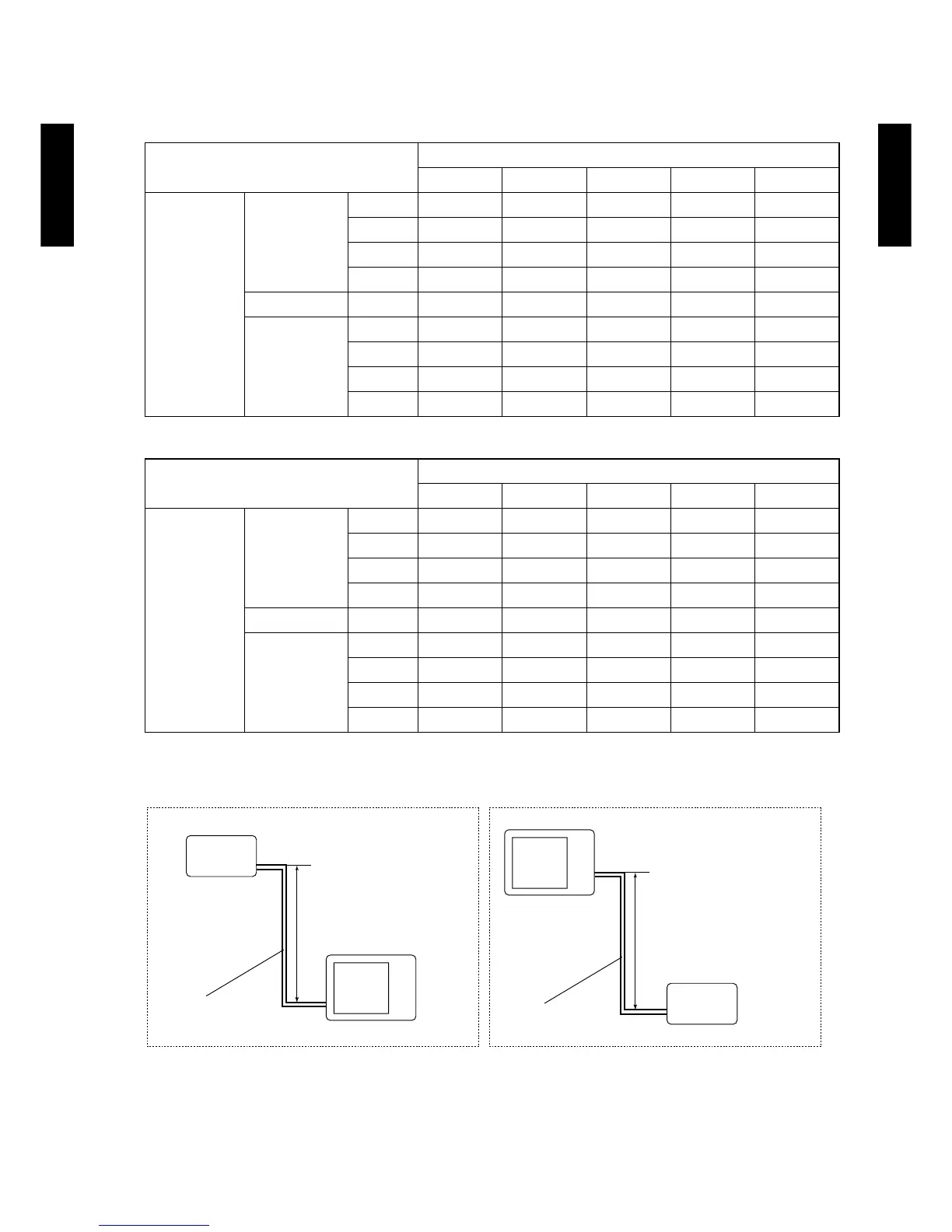

OUTDOOR UNIT AOTG09-22LV OUTDOOR UNIT AOTG09-22LV
CAPACITY COMPENSATION RATE FOR PIPE LENGTH 5.
AND HEIGHT DIFFERENCE
MODEL

: AOTG09LV
Height difference H

1 Indoor unit is upper than outdoor unit.

2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
57.5101520
Height
difference H
(m)

1
Indoor unit is
upper than
outdoor unit.
15 - - - 0.888 0.873
10 - - 0.959 0.888 0.873
7.5 - 1.000 0.959 0.888 0.873
5 1.035 1.000 0.959 0.888 0.873
0 1.035 1.000 0.959 0.888 0.873

2
Indoor unit is
under than
outdoor unit.
-5 1.030 0.995 0.954 0.883 0.869
-7.5 - 0.993 0.952 0.881 0.866
-10 - - 0.950 0.879 0.864
-15 - - - 0.870 0.856
COOLING
Pipe length (m)
57.5101520
Height
difference H
(m)

1
Indoor unit is
upper than
outdoor unit.
15 - - - 0.902 0.910
10 - - 0.963 0.917 0.925
7.5 - 0.988 0.967 0.921 0.929
5 1.009 0.992 0.971 0.924 0.932
0 1.018 1.000 0.979 0.932 0.940

2
Indoor unit is
under than
outdoor unit.
-5 1.018 1.000 0.979 0.932 0.940
-7.5 - 1.000 0.979 0.932 0.940
-10 - - 0.979 0.932 0.940
-15 - - - 0.932 0.940
