Fujitsu ASTG09LVCC User Manual

-
(
01 - 06
)
-
WALL MOUNTED TYPE ASTG09-22LV WALL MOUNTED TYPE ASTG09-22LV

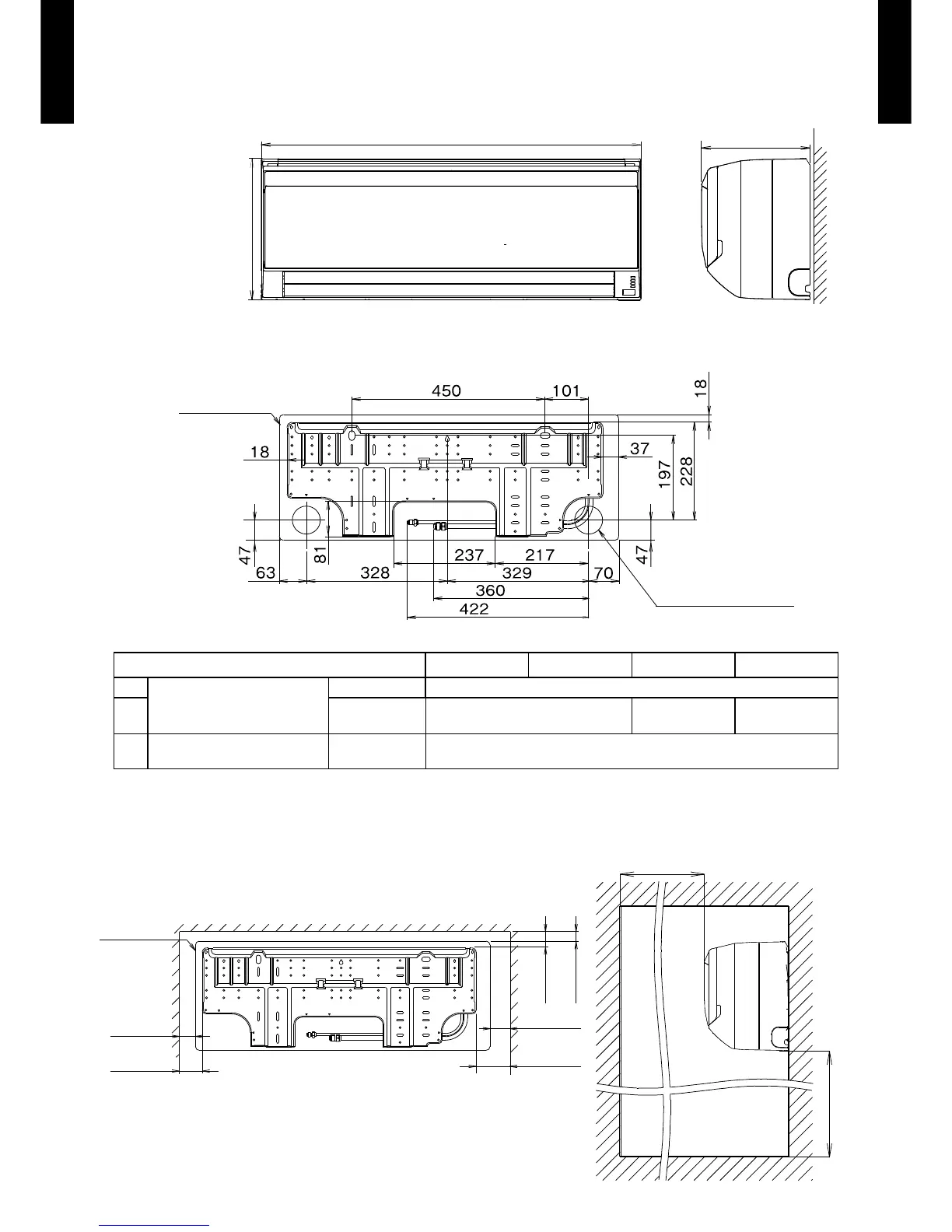

DIMENSIONS4.
MODEL

: ASTG09LV, ASTG12LV, ASTG18LV, ASTG22LV
(Unit : mm)
INSTALLATION PLACE

(Unit : mm)
52 or more
70 or more
48 or more
85 or more
63 or more 45 or more
1,500 or more
1,800 or more
Outline of unit
790
293
225
(Liquid pipe)
(Gas pipe)
Holes for piping (two)
65mm diameter
Outline of unit
ASTG09LV ASTG12LV ASTG18LV ASTG22LV
1
Refrigerant pipe flare
connection
Liquid ø 6.35 mm (ø 1/4 in.)
2
Gas
ø 9.52 mm
(ø 3/8 in.)
ø 12.70 mm
(ø 1/2 in.)
ø 15.88 mm
(ø 5/8 in.)
3
Drain hose connection Drain hose
I.D. ø 13.8 mm, O.D. ø 15.8 to ø 16.7 mm
Drain hose : L=420mm

Fujitsu ASTG09LVCC Specifications

General

Brand	Fujitsu
Model	ASTG09LVCC
Category	Air Conditioner
Language	English
