Fujitsu ASTG09LVCC User Manual

-
(
01 - 04
)
-

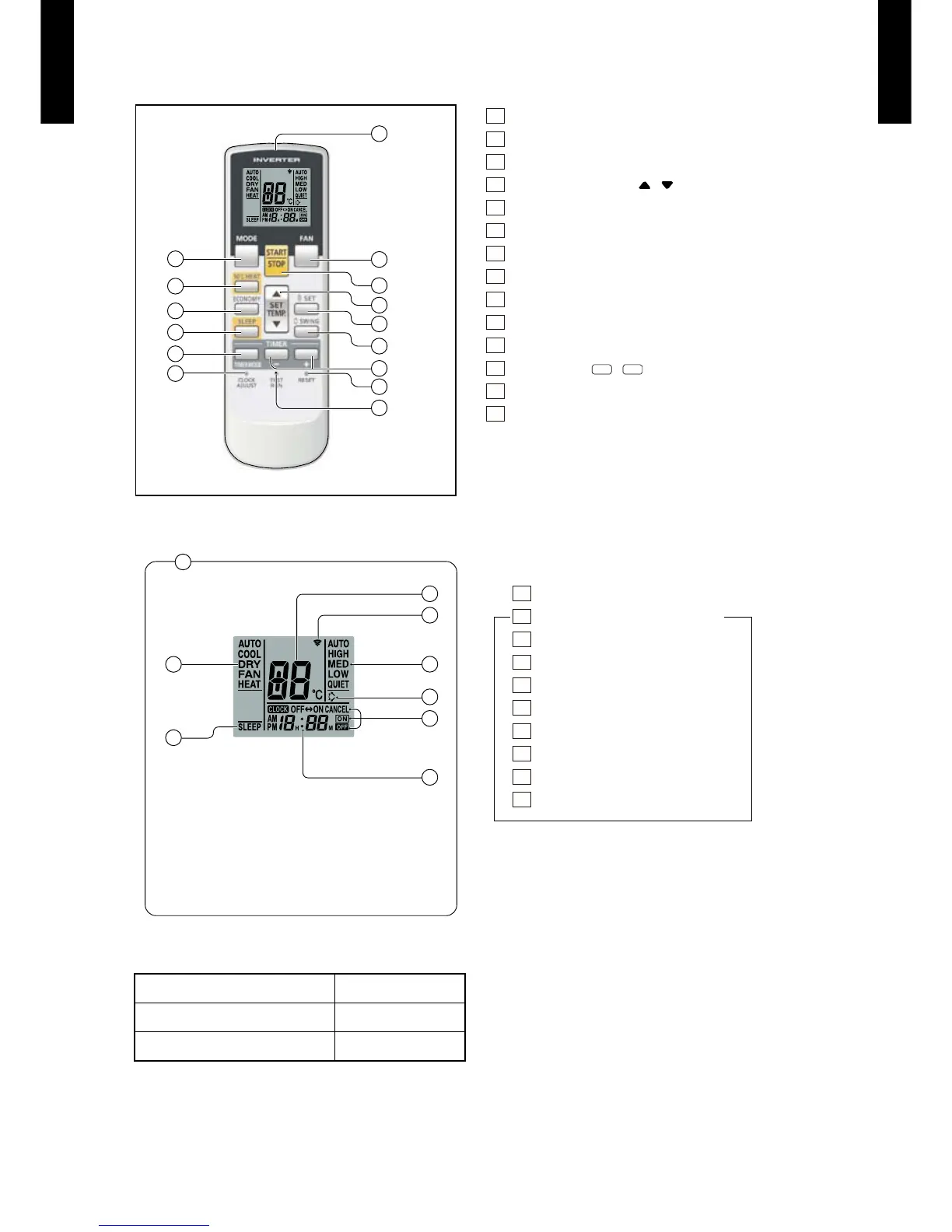

WALL MOUNTED TYPE ASTG09-22LV WALL MOUNTED TYPE ASTG09-22LV
1
Signal transmitter
2
MODE button
3
10°C HEAT button
4
SET TEMP. button

( / )
5
ECONOMY button
6
SLEEP button
7
TIMER MODE button
8
FAN button
9
START/STOP button
10
SET button (Vertical)
11
SWING button
12
TIMER SET (
+
/
-
) button
13
CLOCK ADJUST button
14
TEST RUN button
•This button is used when installing the air conditioner, and should
not be used under normal conditions, as it will cause the indoor
unit’s thermostat function to operate incorrectly.
•If this button is pressed during normal operation, the indoor
unit will switch to test operation mode, and the Indoor Unit’s
OPERATION Indicator Lamp and TIMER Indicator Lamp will
begin to flash simultaneously.
•To stop the test operation mode, press the SRART/STOP button
to stop the air conditioner.
15
RESET button
16
Remote controller display
17
Transmit indicator
18
Fan speed display
19
Swing display
20
Timer mode display
21
Clock display
22
Temperature set display
23
Operation mode display
24
Sleep display
Functions will be different due to type of indoor unit.
For details, please see operation manual.
FUNCTIONS

Display panel
16
23
24
19
17
22
18
20
21
To facilitate explanation, the accompanying
illustration has been drawn to show all possible
indicators; in actual operation, however,
the display will only show those indicators
appropriate to the current operation.
SPECIFICATION

2
7
13
5
6
4
10
11
15
12
14
1
8
9
3
SIZE (H x W x D mm) 170 x 56 x 19
WEIGHT ( g ) 85 (w/o batteries)
ACCESSORY Holder
