Peak cut mode
By performing following on-site work, operation that suppresses the current value can be enabled:
The air conditioner is set to the “Peak cut mode” when closing the contact input of a commercial
timer or on/off switch to a connector on the control PCB of the outdoor unit.

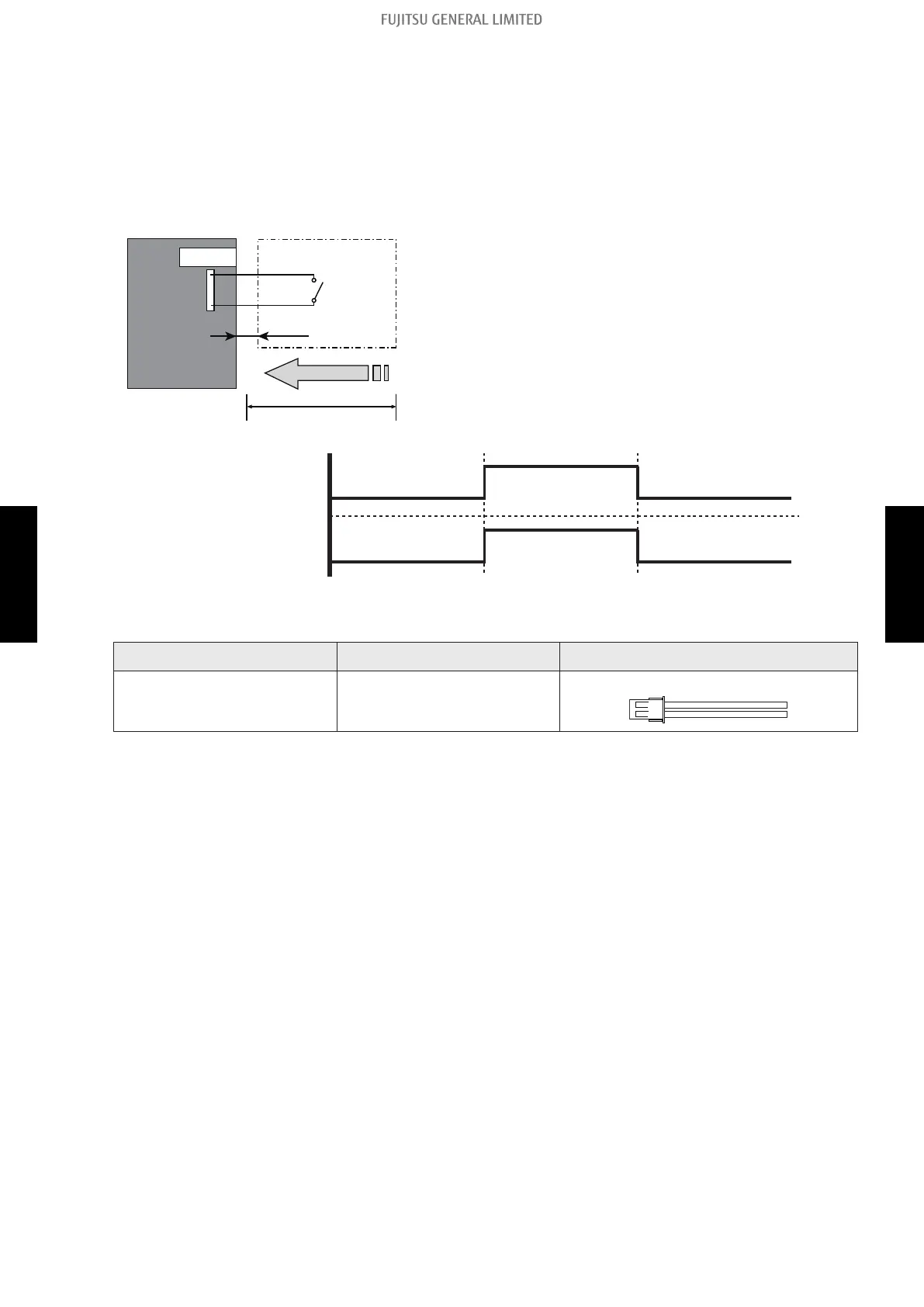

• Circuit diagram example
Outdoor unit
control PCB
Connected unit
Example: Switch
Connector
1
2
Signal
Locally purchased
*10 m
• Contact capacity: DC 24 V or more, 10 mA or more.
•
*: Make the distance from the PCB to the connected
unit within 10 m.
• Construct a circuit as shown in this figure with using
optional parts mentioned below.
• Input signal: On in “Peak cut mode”
• Input signal: Off in normal operation
• To set the level of “Peak cut mode”, refer to "Peak
cut mode" on page 05-14.
On
Off
On
Off
Input signal
Peak cut mode
• Optional part
Part name Model name Exterior
External connect kit UTY-XWZXZ3
External input wire
4-1. External input - (05-33) - 4. External input and output (For outdoor unit: AOTG34KMTC only)
