Peak cut mode
SW1
S
W2
SW3 SW4 SW5
(1) (2) (3) (4) (5)
LED lamps
Switch buttons

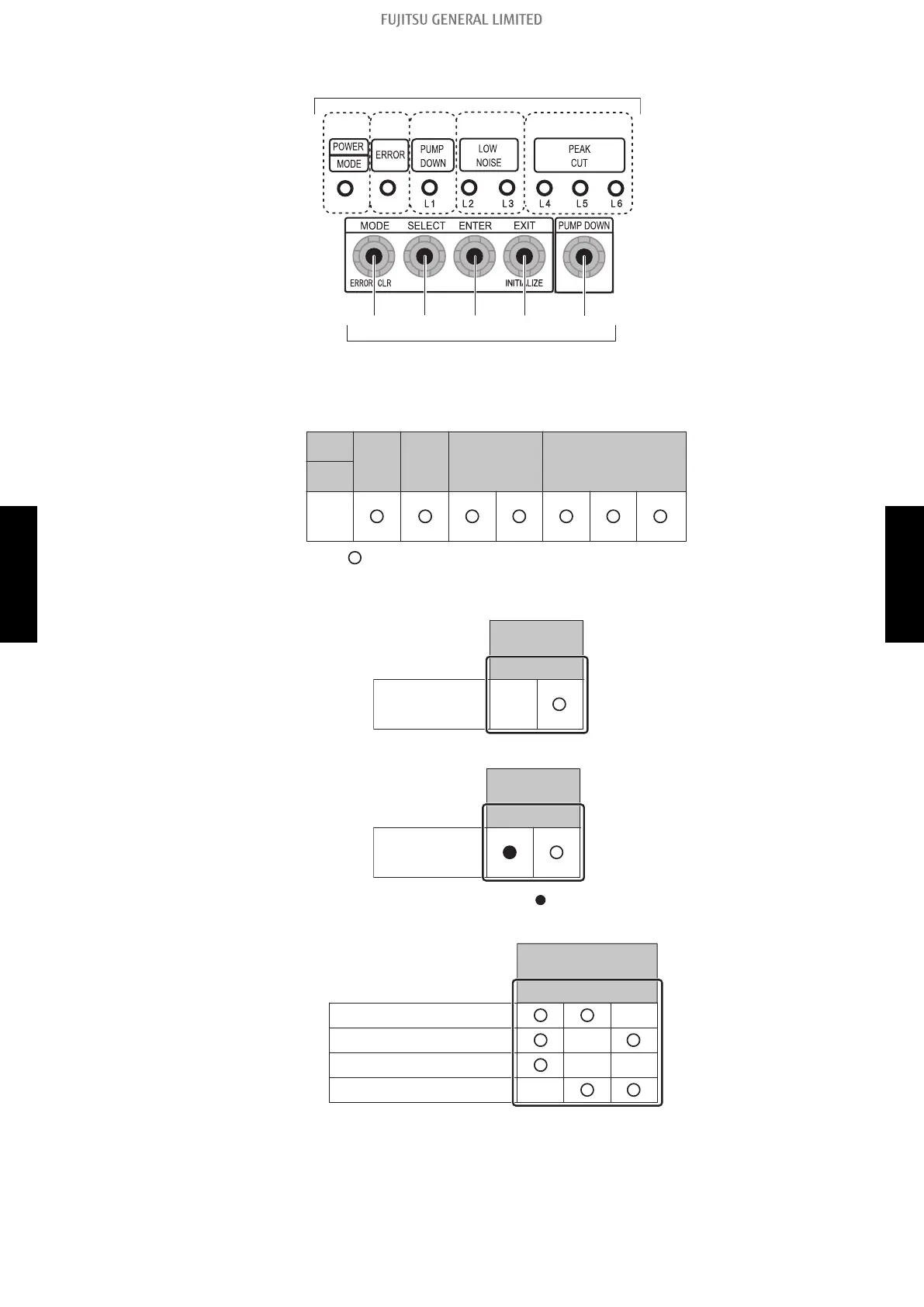

1. Press the MODE switch button (SW1) for 3 seconds or more to switch to “Local setting mode”.
2.
After confirming the LED lamp of POWER/MODE blinks 9 times, press the ENTER switch but-
ton (SW3).
POWER
MODE
ERROR
(L1) (L2) (L3) (L4) (L5) (L6)
PUMP
DOWN
LOW NOISE PEAK CUT
Blinks
(9 times
)
Sign “ ”: Lights off
3. Press the SELECT switch button (SW2), and adjust the LED lamp as shown below. Then the
LED lamp indicates the current setting.
(L2)
(L
3)
LOW NOISE
Blink
PEAK CUT
MOD E
4. Press the ENTER switch button (SW3).
(L2) (L3)
LOW NOISE
PEAK CUT
MODE
Sign “
”: Lights on
5. Press the SELECT switch button (SW2), and adjust the LED lamps as shown below.
0 % of rated input ratio
50 % of rated input ratio
75 % of rated input ratio
100 % of rated input ratio
Bl
ink
Blink Blink
Blink
Blink
PEAK CUT
(L4) (L5) (L6)
2-2. Local setting procedure - (05-14) - 2. Function settings (For outdoor unit: AOTG34KMTC only)
