OUTDOOR UNIT
AOU30RLXEH

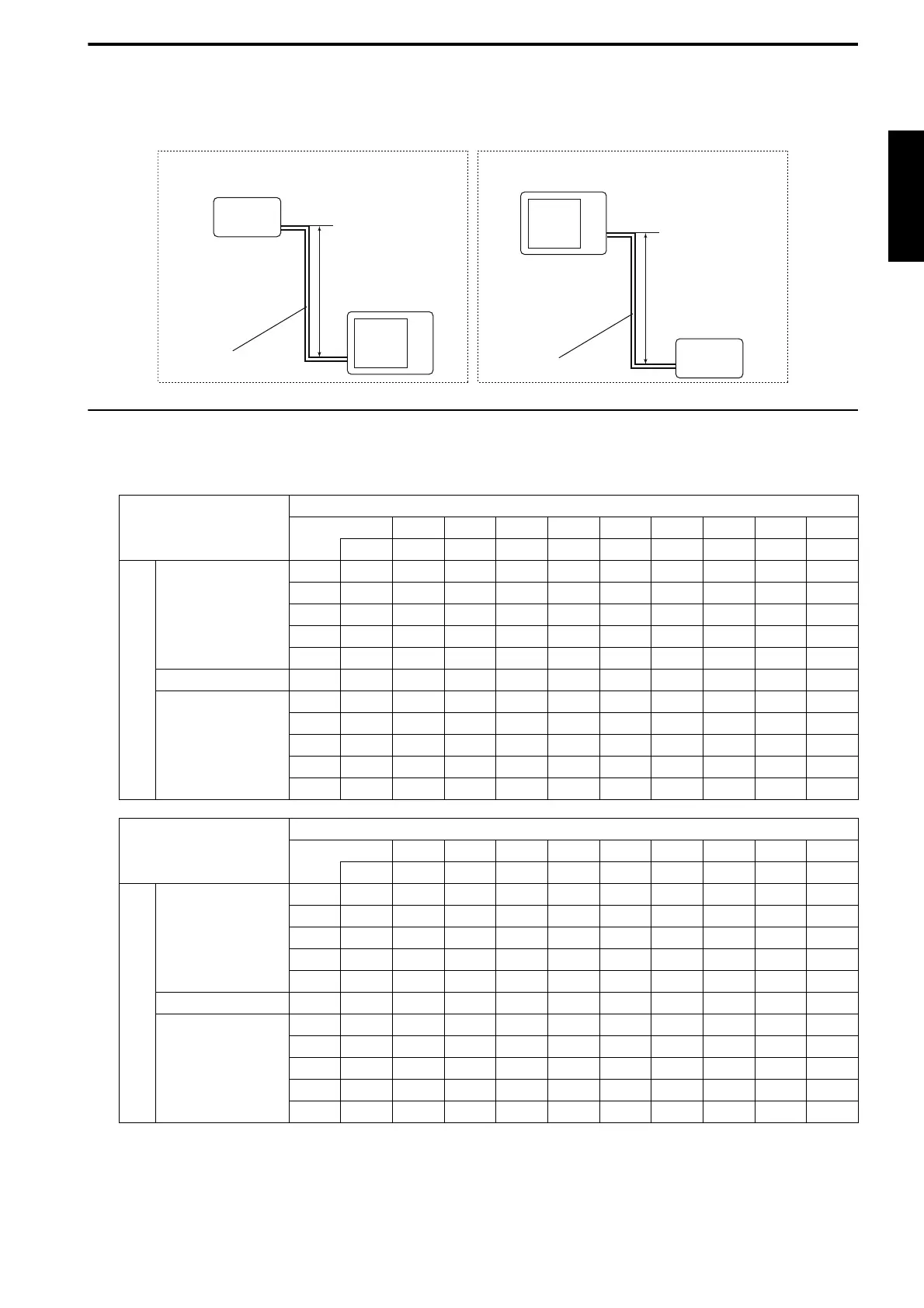

6. Capacity compensation rate for pipe length and height
difference
6-1. Model: AOU30RLXEH
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
COOLING
Pipe length
m 5 7.510203040506075
ft 16 24 32 65 98 131 164 196 246
Indoor unit is
higher than
outdoor unit *1
30 98 - - - - 0.912 0.893 0.875 0.857 0.823
20 65 - - - 0.945 0.927 0.908 0.890 0.872 0.837
10 32 - - 0.980 0.961 0.942 0.923 0.905 0.886 0.851
7.5 24 - 0.988 0.984 0.965 0.946 0.927 0.908 0.890 0.854
5 16 0.992 0.992 0.988 0.969 0.950 0.931 0.912 0.893 0.858
0 0 1.000 1.000 0.996 0.977 0.958 0.939 0.920 0.901 0.865
Indoor unit is
lower than
outdoor unit *2
-5 -16 1.000 1.000 0.996 0.977 0.958 0.939 0.920 0.901 0.865
-7.5 -24 - 1.000 0.996 0.977 0.958 0.939 0.920 0.901 0.865
-10 -32 - - 0.996 0.977 0.958 0.939 0.920 0.901 0.865
-20 -65 - - - 0.977 0.958 0.939 0.920 0.901 0.865
-30 -98 - - - - 0.958 0.939 0.920 0.901 0.865
HEATING
Pipe length
m 5 7.510203040506075
ft 16 24 32 65 98 131 164 196 246
Indoor unit is
higher than
outdoor unit *1
30 98 - - - - 0.978 0.968 0.958 0.948 0.935
20 65 - - - 0.988 0.978 0.968 0.958 0.948 0.935
10 32 - - 0.998 0.988 0.978 0.968 0.958 0.948 0.935
7.5 24 - 1.000 0.998 0.988 0.978 0.968 0.958 0.948 0.935
5 16 1.000 1.000 0.998 0.988 0.978 0.968 0.958 0.948 0.935
0 0 1.000 1.000 0.998 0.988 0.978 0.968 0.958 0.948 0.935
Indoor unit is
lower than
outdoor unit *2
-5 -16 0.995 0.995 0.993 0.983 0.973 0.963 0.953 0.943 0.930
-7.5 -24 - 0.993 0.990 0.980 0.970 0.960 0.950 0.940 0.928
-10 -32 - - 0.988 0.978 0.968 0.958 0.948 0.938 0.926
-20 -65 - - - 0.968 0.958 0.948 0.938 0.929 0.916
-30 -98 - - - - 0.948 0.939 0.929 0.919 0.907
Height difference H
Indoor unit is higher than outdoor unit
*
1
Indoor unit is lower than outdoor unit *
2
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HH
