OUTDOOR UNIT
AOU30RLXEH
3. Installation space
3-1. Model: AOU30RLXEH
Space requirement

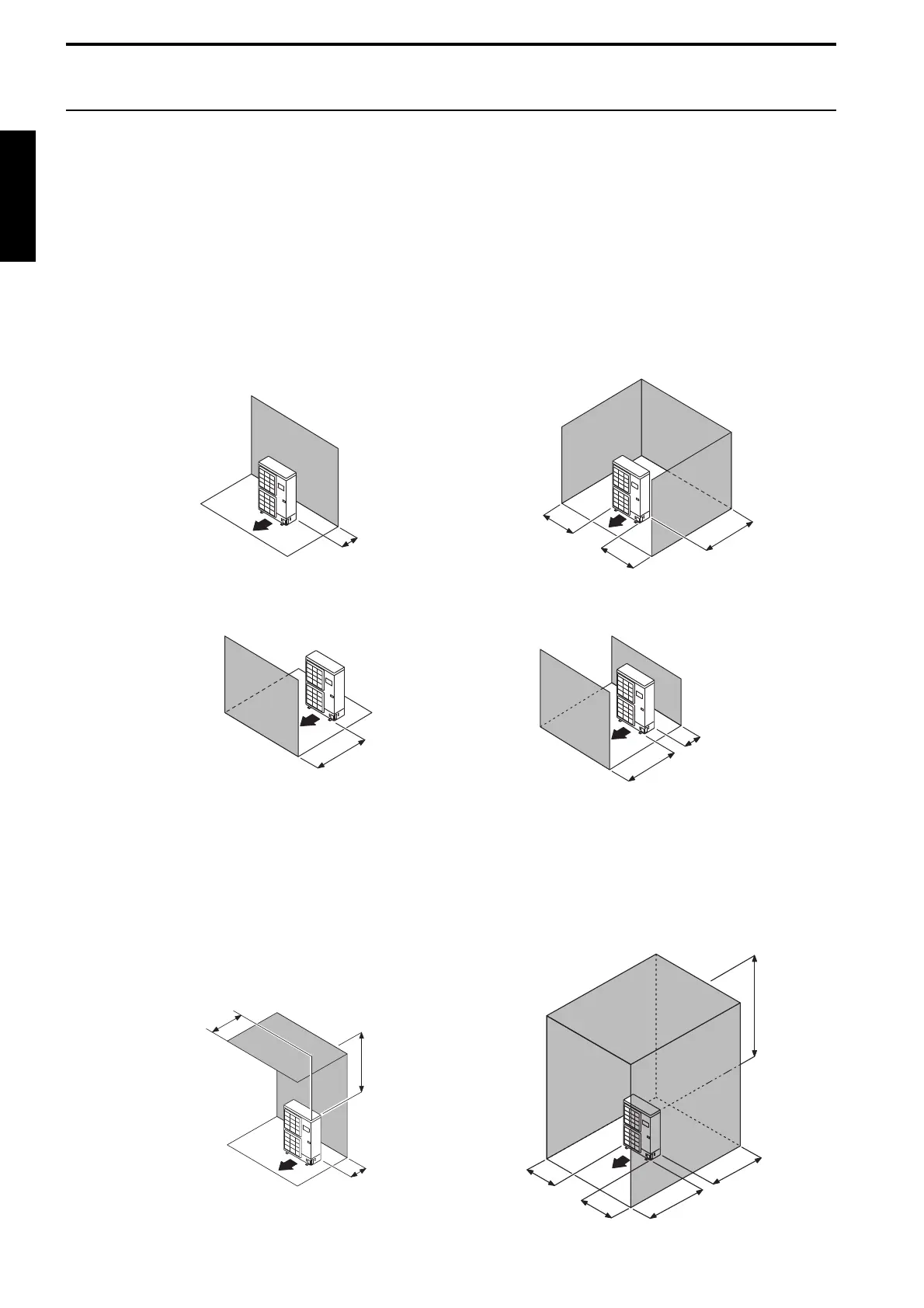

Provide sufficient installation space for product safety.
Single outdoor unit installation
• When the upper space is open:
• When there is an obstruction in the upper space:
Unit: in (mm)
When there are obstacles at the rear only. When there are obstacles at the rear and sides.
When there are obstacles at the front only. When there are obstacles at the front and rear.
Unit: in (mm)
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides, and
above.
8 (200) or more
8 (200) or more
12 (300) or more
40 (1,000) or more
6 (150) or more
12 (300) or more
Max. 19 (500)
40 (1,000)
or more
Max. 19 (500)
20 (500)
or more
10 (250) or more
10 (250)
or more
60 (1,500)
or more
To Next Page
