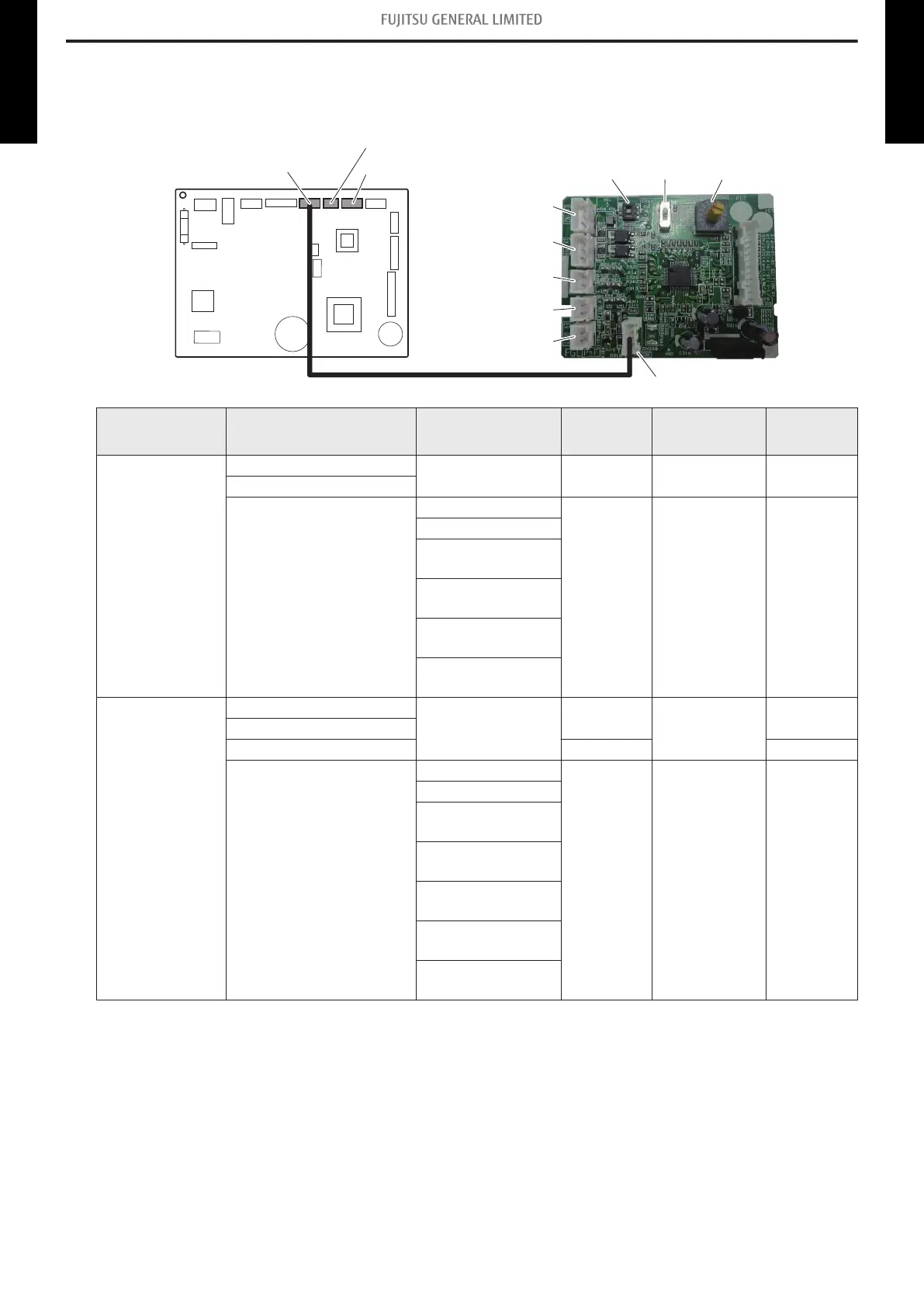

13. External input and output (LPAS series wall mounted type
indoor unit)
Rotary switchSW302
CN308
SW301
External input and output PCB
Indoor unit PCB
CN314
CN313
CN312
CN311
CN310
CN65
(Ext. in/out PCB)
CN47 (Ext. out)
CN46 (Ext. in)
PCB External input External output Connector Input select
Input
signal
Indoor unit
Operation/Stop
— CN46 Dry contact Edge
Forced stop
—
Operation status
CN47 — —
Error status
Indoor unit fan
operation status
Cooling thermostat
On
Heating thermostat
On
External heater
output
External input
and output (UTY-
XCSXZ2)
Operation/Stop
—
CN313/
CN314
Dry contact/
Apply voltage
Edge/Pulse
Forced stop
Forced thermostat off CN313 Edge
—
Operation status
CN310/
CN311/
CN312
— —
Error status
Indoor unit fan
operation status
External heater
output
Remote controller
output
Cooling high/low
output
Heating thermostat
On
- 126 -
13. External input and output (LPAS series wall mounted type indoor unit)
MULTI-SPLIT TYPE 5-unit type MULTI-SPLIT TYPE 5-unit type
