15-2. Wireless remote controller (AR-RPB1U)
¢

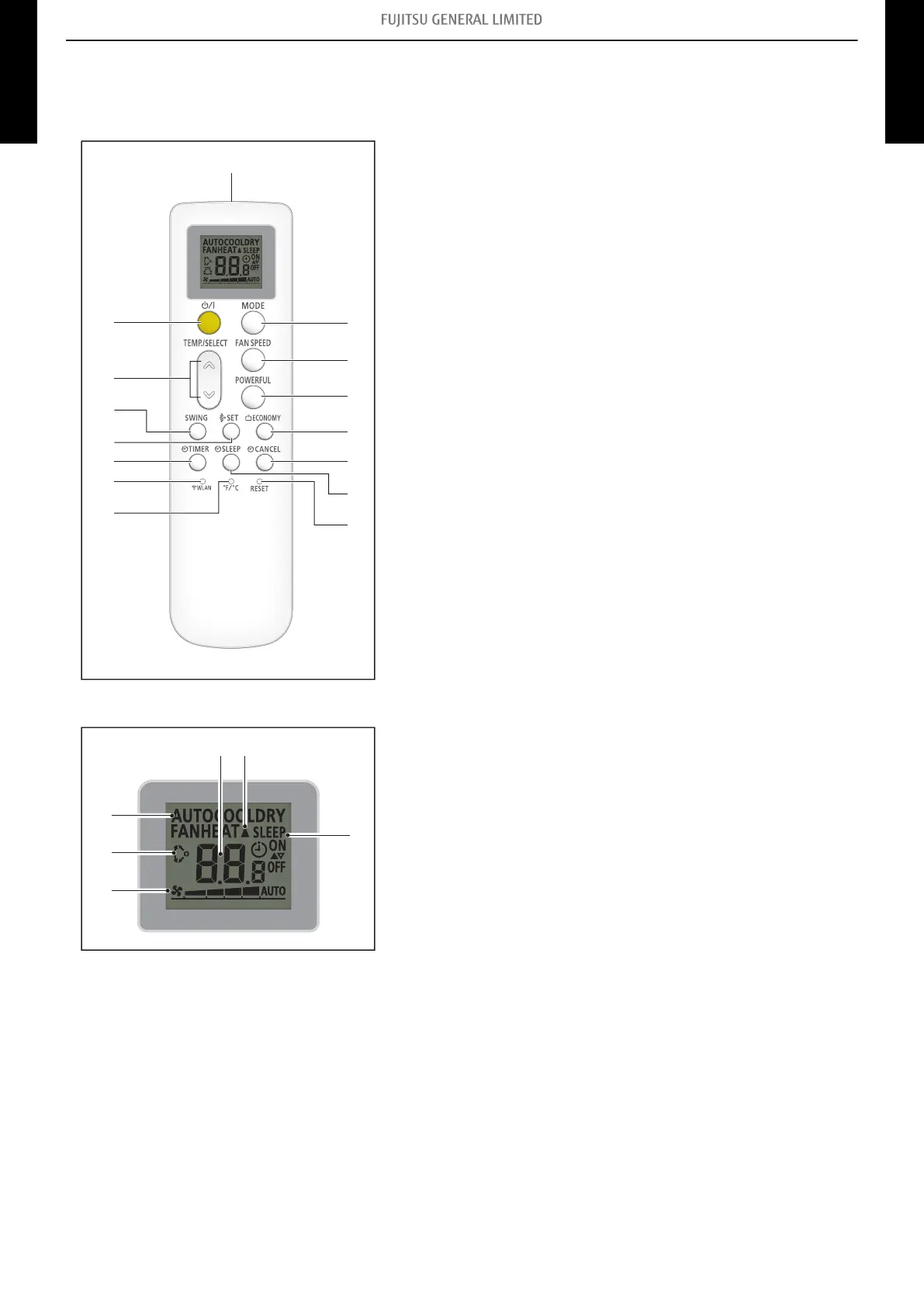

Overview
o
a
b
c
d
e
f
g
n
l
j
k
i
m
h
Display panel
p q
r
s
t
u
NOTE:
Functions may differ by type of
the indoor unit. For details, re-
fer to the operation manual.
a
MODE button
• Switches operation mode (AUTO, COOL, DRY, FAN, and HEAT).
• Starts/ends the remote controller custom code (max. 4 types)
change.
b FAN SPEED button
• Press the FAN SPEED button while the air conditioner is operating,
to control fan speed.
• Press and hold the FAN SPEED button for more than 5 seconds
while the air conditioner is stopped, switch the energy saving fan
control.
c POWERFUL button
d ECONOMY button
e CANCEL button
f SLEEP TIMER button
g RESET button
h °F/°C button
• Switches the temperature unit on the remote controller display.
• Press and hold the °F/°C button for more than 5 seconds to enter
Service check mode.
– Do not use Service check mode in normal use.
– If there seems to be a problem, check the error code by referring
to the Operation manual.
i WLAN button
• Starts the wireless LAN setting.
• Press and hold the WLAN button for more than 5 seconds while the
air conditioner is operating, to enter test run mode.
j TIMER button
k SET button (Up/down airflow)
l SWING button
m TEMP./SELECT button
• Adjusts the setting temperature.
• Adjusts the value of the timer settings.
• Sets the remote controller code.
n START/STOP button
o Signal transmitter
p Temperature and time indicator
• Displays set temperature.
• In timer setting, it displays the timer time. After finishing the timer
setting, set temperature will reappear.
q Signal transmit indicator
r Timer mode indicator
s Fan speed indicator
t Swing indicator
u Operating mode indicator
To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators;
in actual operation, however, the display will only show those indicators appropriate to the current oper-
ation.
