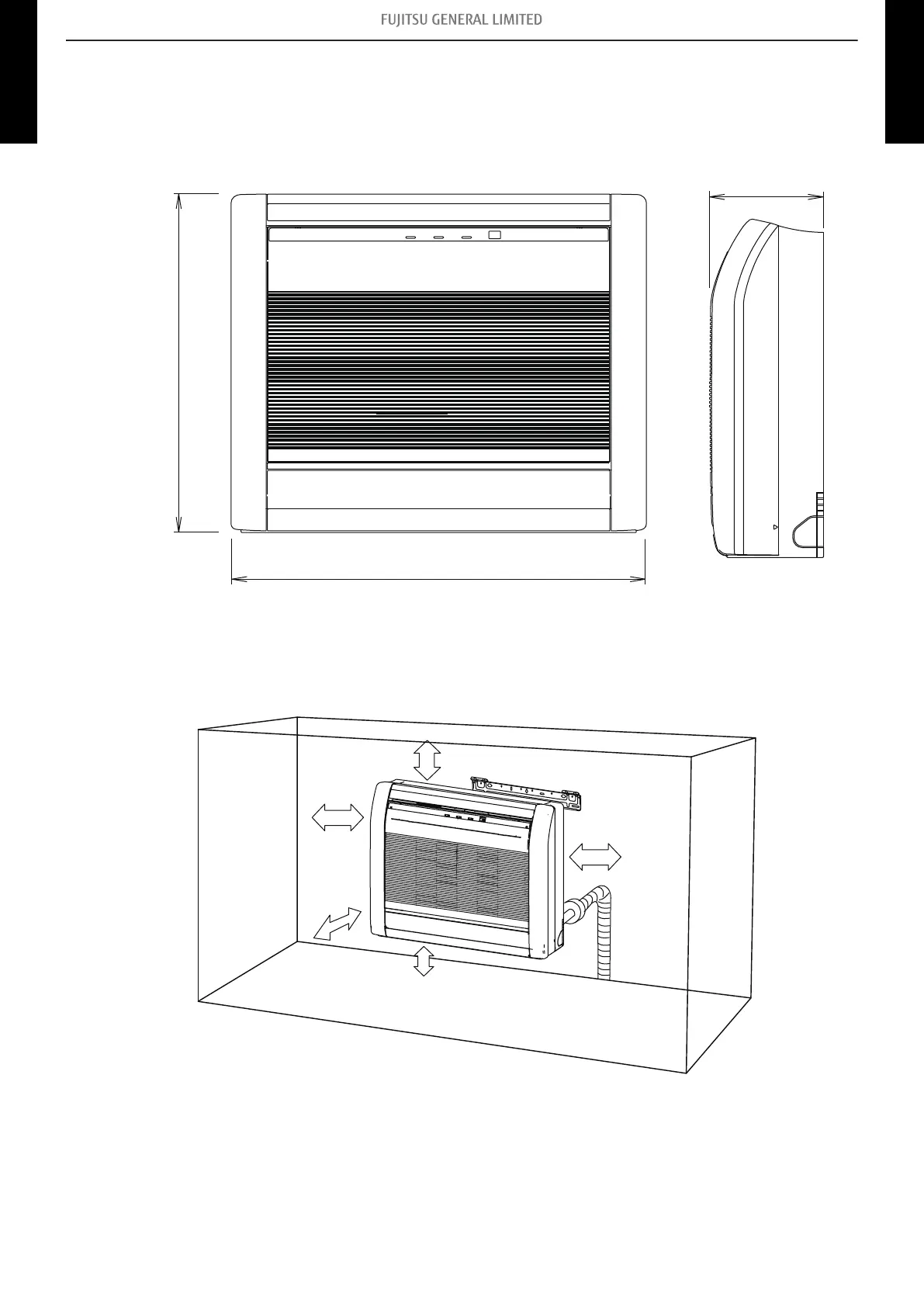

Fujitsu ASUH07LPAS - 3-4. Floor type; Installation space requirement

3-4. Floor type
¢ Models: AGU9RLF, AGU12RLF, and AGU15RLF
23-5/8 (600)
7-7/8 (200)
Side view
Front view
29-1/8 (740)
Unit: in (mm)
¢
Installation space requirement
4 (80)
or more
2 (50)
or more
4 (80) or more
4 (100) or more
5 (150) or less
Unit: in (mm)
