Fujitsu ASYG09KMCB Design & Technical Manual

 Multiple outdoor unit installation

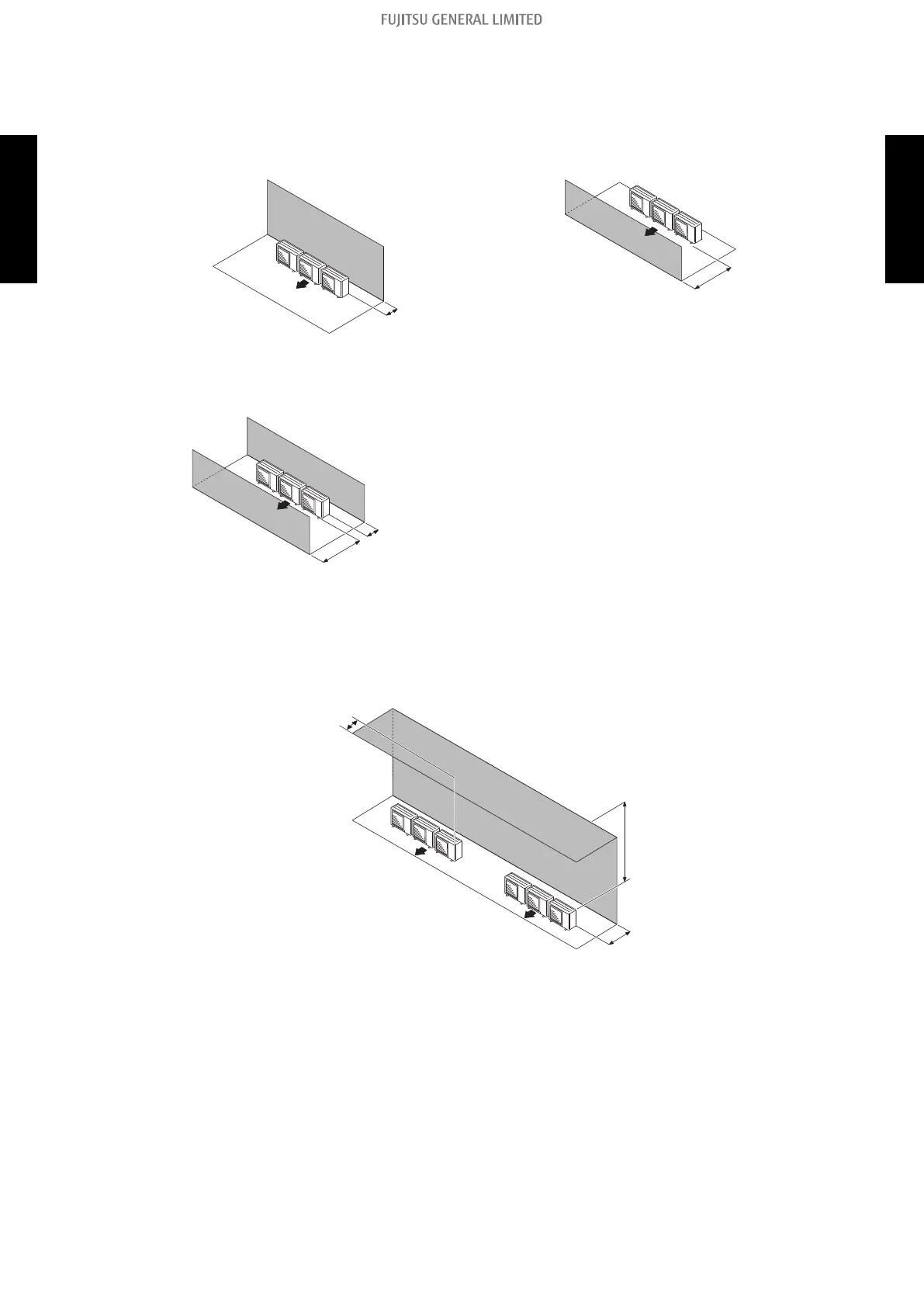

• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the front only.
200
or more
1,000 or more
When there are obstacles at the front and
rear.
200 or more
1,000 or more
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear and above.
1,500 or more
200 or more
Max. 300
- 37 -
3-1. Models: AOYG09KMCBN, AOYG12KMCBN, and AOYG14KMCBN 3. Installation space
OUTDOOR UNIT AOYG09-14KMCBN OUTDOOR UNIT AOYG09-14KMCBN
