Fujitsu ASYG09KMCB Design & Technical Manual

9. Operation noise (sound pressure)

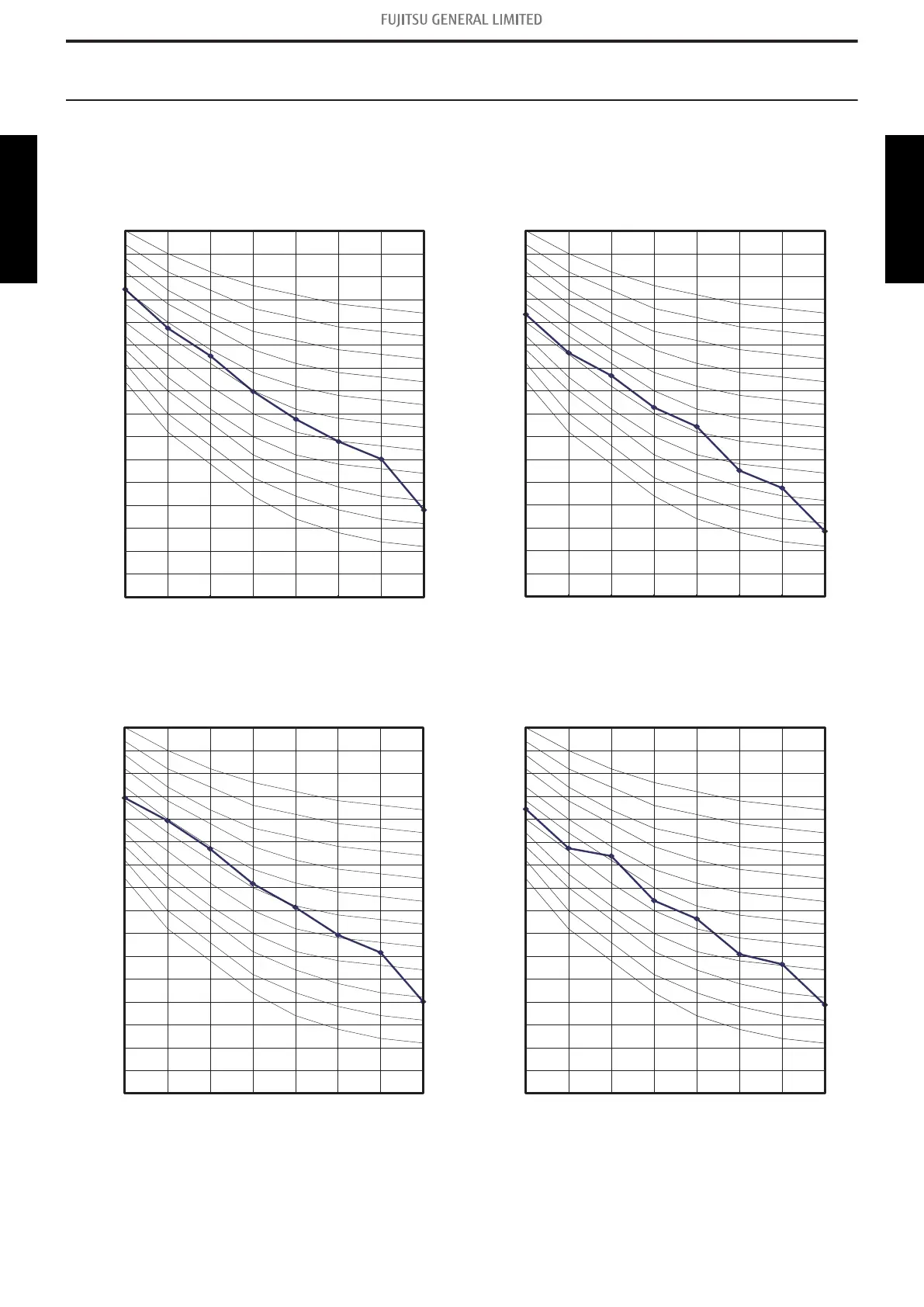

9-1. Noise level curve
¢
Model: AOYG09KMCBN
 Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
¢
M
odel: AOYG12KMCBN
 Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
- 45 -
9-1. Noise level curve 9. Operation noise (sound pressure)
OUTDOOR UNIT AOYG09-14KMCBN OUTDOOR UNIT AOYG09-14KMCBN

Fujitsu ASYG09KMCB Specifications

General

Type	Split System
Cooling Capacity	2.5 kW
Heating Capacity	3.2 kW
Energy Efficiency Class (Cooling)	A++
Energy Efficiency Class (Heating)	A+
Refrigerant	R32
Outdoor Unit Noise Level	46 dB
Power Supply	220-240 V, 50 Hz
Indoor Unit Weight	8.5 kg
Coefficient of Performance (COP)	4.00
