3. Installation space
3-1. Models: AOYG09KMCBN, AOYG12KMCBN, and
A
OYG14KMCBN
¢

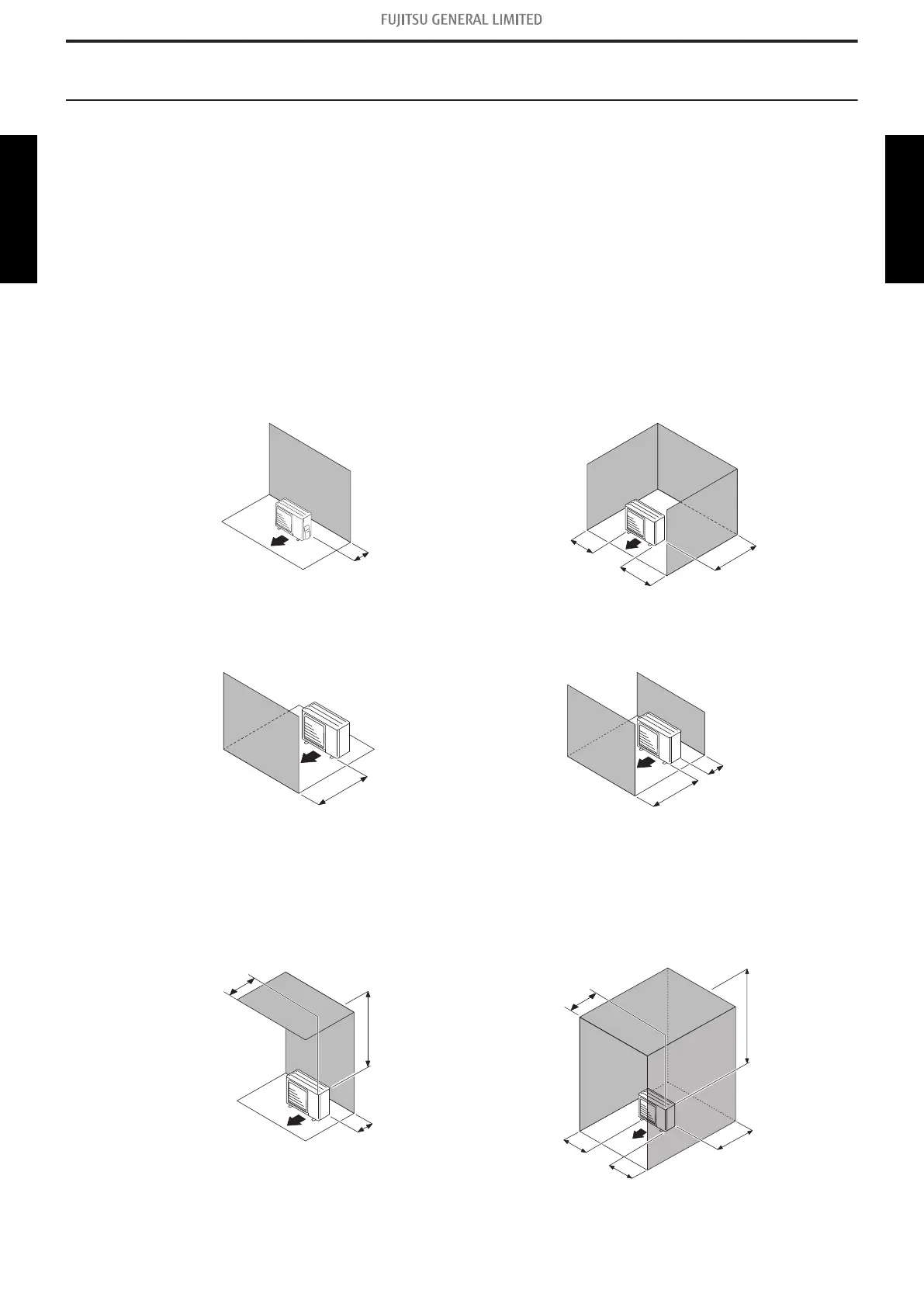

Space requirement
Provide sufficient installation space for product safety.
Single outdoor unit installation
• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
250 or more
100 or more
100 or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides,
and above.
100 or more
Max. 200
600 or more
600 or more
100 or more
250 or more
100 or more
Max. 200
- 36 -
3-1. Models: AOYG09KMCBN, AOYG12KMCBN, and AOYG14KMCBN 3. Installation space
OUTDOOR UNIT
AOYG09-14KMCBN
OUTDOOR UNIT
AOYG09-14KMCBN
