3. Wiring diagrams
3-1. Models: ASYG09KMCB, ASYG12KMCB, and ASYG14KMCB
- 5 -

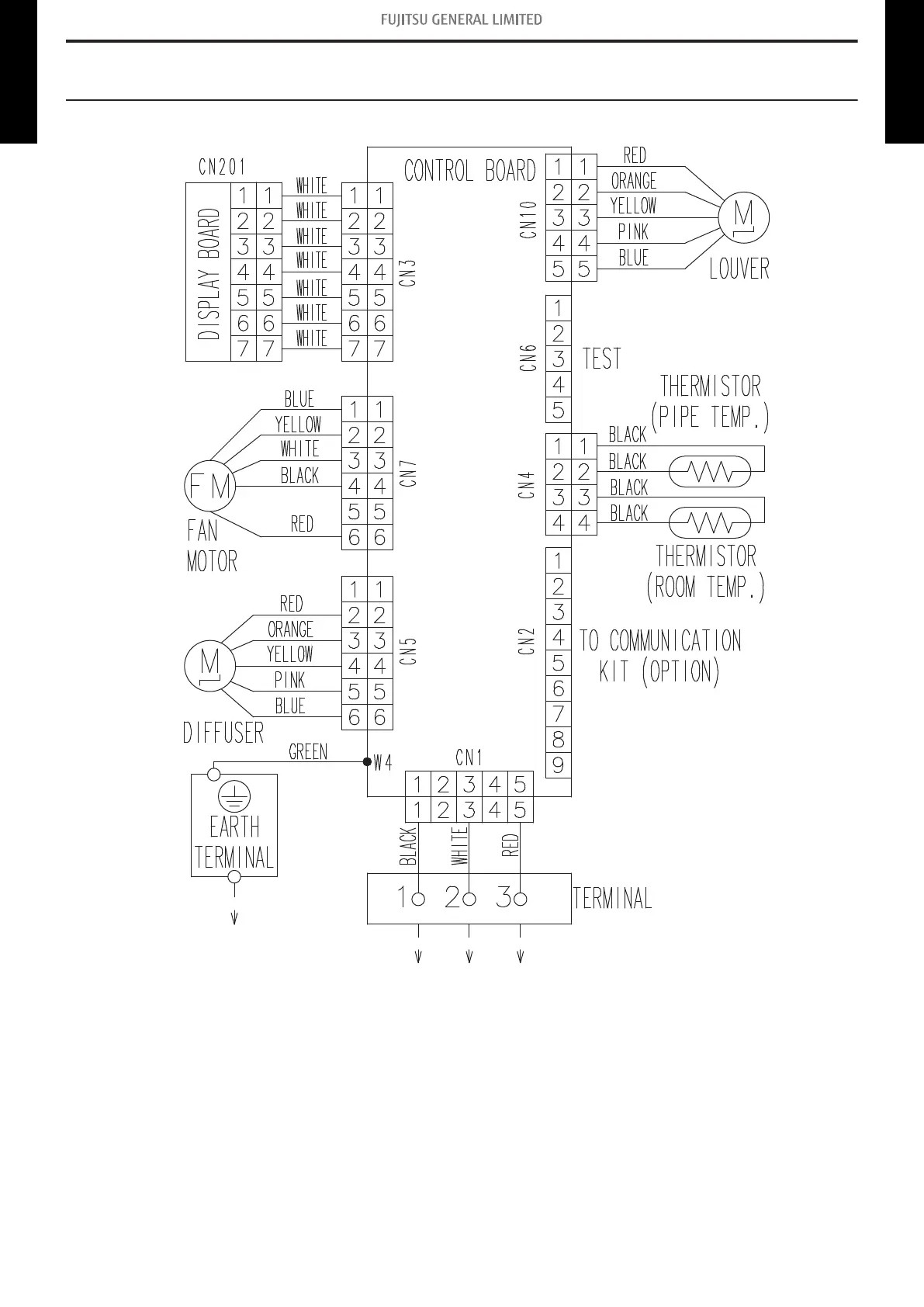

3-1. Models: ASYG09KMCB, ASYG12KMCB, and ASYG14KMCB 3. Wiring diagrams
WALL MOUNTED
ASYG09-14KMCB
WALL MOUNTED
ASYG09-14KMCB
