Fujitsu B24W-6 LED

Technical specification

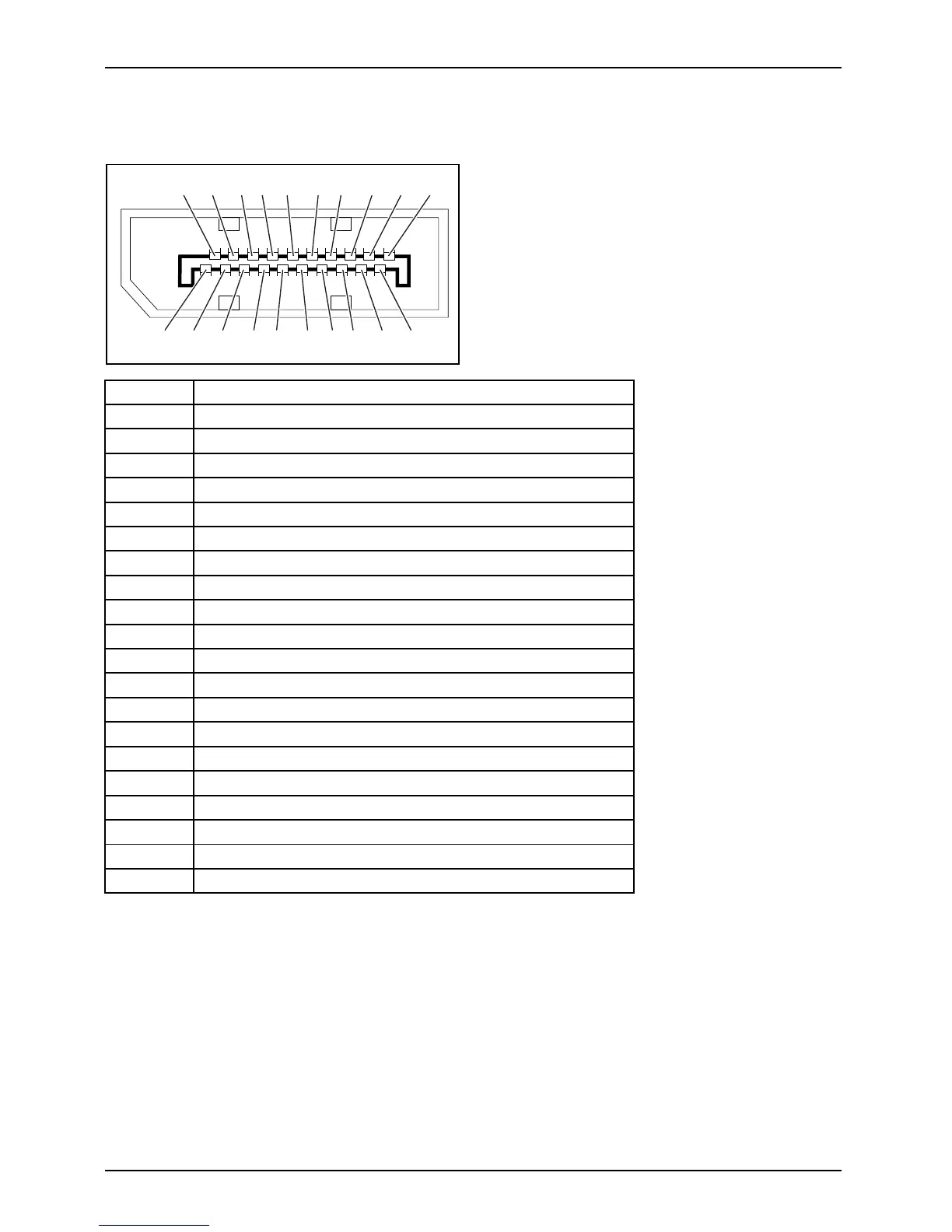

DisplayPort socket
1319 17 15 13 11 9 7 5
2420 19 16 14 12 10 8 6
Pin Meaning
1
Lane 3 (negative)
2Earth
3
Lane 3 (positive)
4
Lane 2 (negative)
5
Earth
6
Lane 2 (positive
)
7
Lane 1 (negative)
8Earth
9
Lane 1 (positive)
10
Lane 0 (nega
tive)
11 Earth
12
Lane 0 (positive)
13
Connected to earth
14
Connect
ed to ea rth
15
Auxiliary channel (positive)
16 Earth
17
Auxiliary c hann el (negative)
18 Hot Plug Detect
19
Ret
urn for Power
20
Power for connector (3.3 V 500 mA)
36 Fujitsu Technology Solutions
