Mainboard D3358 Deutsch - 23
Fujitsu 23
1

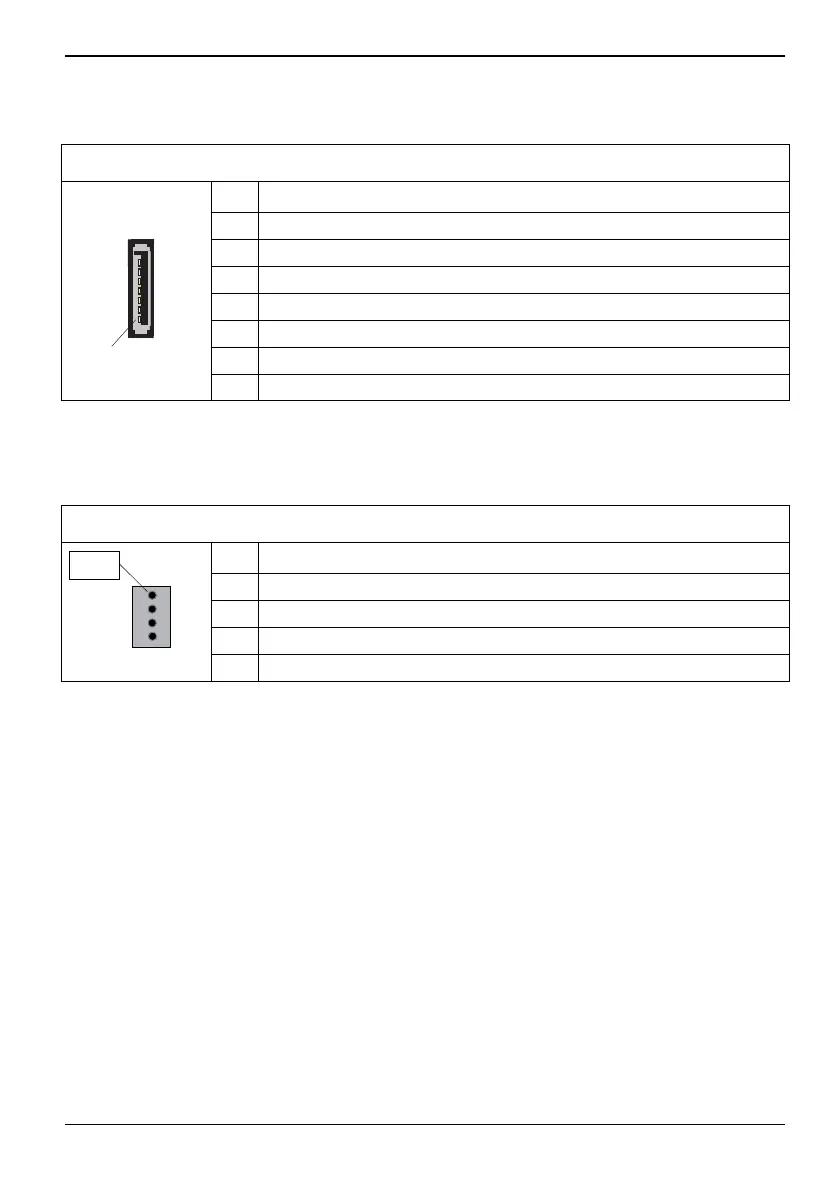

Anschlüsse für Speichergeräte
Serial ATA-Anschluss (Intern weiß)
POL Signal
1 GND
2 Transmit data negative
3 Receive data negative
4 GND
5 Transmit data positive
6 GND
7 Receive data positive
Anschlüsse für Systemüberwachung und
-verwaltung
SCSI LED-Anschluss (Intern)
POL Signal
1 Nicht angeschlossen
2 SCSI-ON LED (Low Aktiv)
3 SCSI-ON LED (Low Aktiv)
Pin 1
4 Nicht angeschlossen
