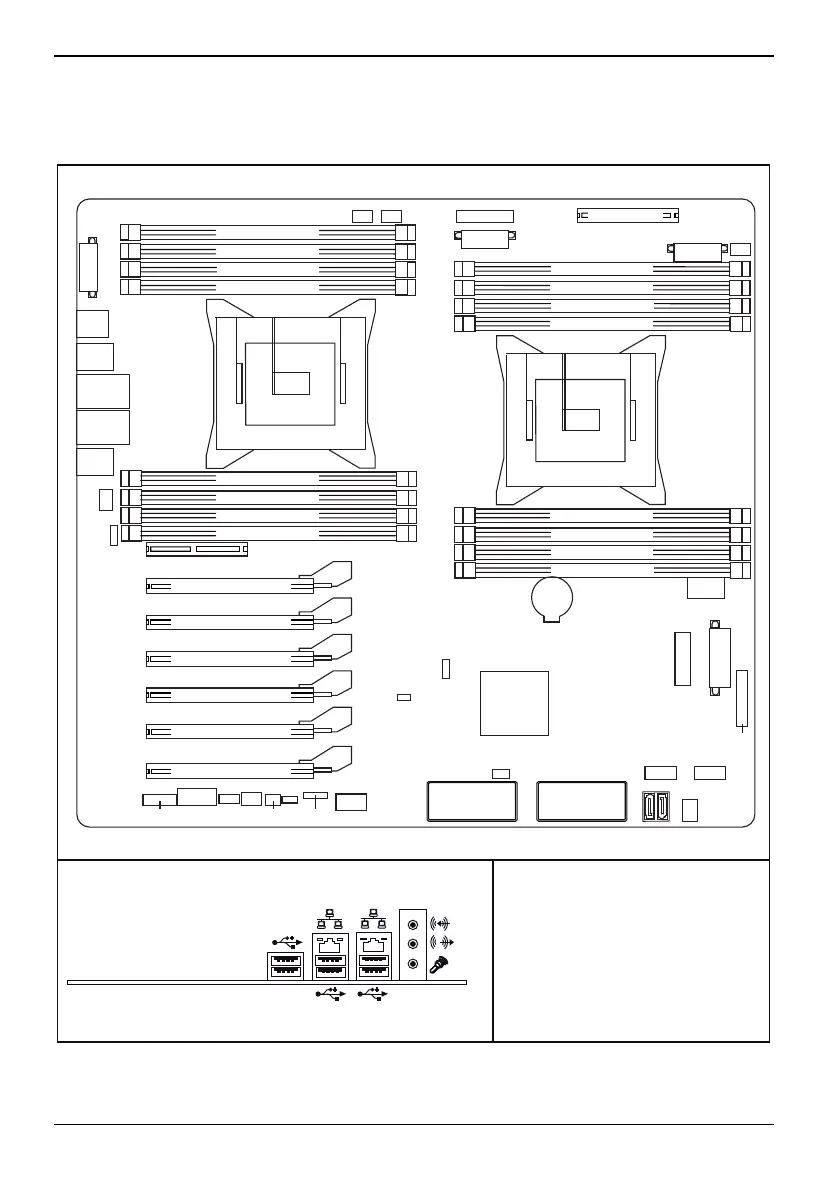

Overview Mainboard D3358
External connectors rear
Door-fan
FAN 1 = CPU0-fan
Battery
Drive PWR
Intrusion
CPU 1
CPU 0
Channel G Module 1
Channel G Module 2
Channel H Module 1
Channel H Module 2
Channel F Module 2
Channel F Module 1
Channel E Module 2
Channel E Module 1
Channel A Module 1
Channel A Module 2
Channel B Module 1
Channel B Module 2
Channel D Module 2
Channel D Module 1
Channel C Module 1
Channel C Module 2
PCIe x8 Gen 3
FAN 6 =
PC 2009 = PSU-fan
FAN 2 = CPU1-fan
FAN 3 = CPU1-fan
FAN 5 = Rear-fan
CPU 0
CPU 0
PCH
CPU 1
CPU 1
CPU 0
CPU 1
PCH
FAN 7 = Slotcard-fan
FAN 3 FAN 2
PC 2000
POWER
POWER
FAN 1
POWER
3CSI Frontpanel LED
2x USB 3.0 Front
FAN 7
Intern USB USB Front
PCH
32kHz Crystal
25MHz Crystal
ROM
SATA3 Ports
0-3
SATAX3 Ports
6-9
USB 2.0
12V AUX
Front
Audio
COM
FAN 6
SLOT1 PCle x1 (GEN2)
SLOT2 PCle x16 (GEN3)
SLOT3 PCle x16 (GEN3)
SLOT4 PCle x16 (GEN3)
SLOT5 PCle x4 (GEN2)
SLOT6 PCle x16 (GEN3)
SLOT7 PCle x8 (GEN3)
FAN 5
POWER
MSE/
KBG
2x
USB 2.0
Audio
LAN
2x USB 2.0
LAN
2x USB 3.0
25MHz
Crystal
(optional)
SATA3 Ports
5
4
