Fujitsu D3358 User Manual

Mainboard D3358 English - 23
Fujitsu 59
1

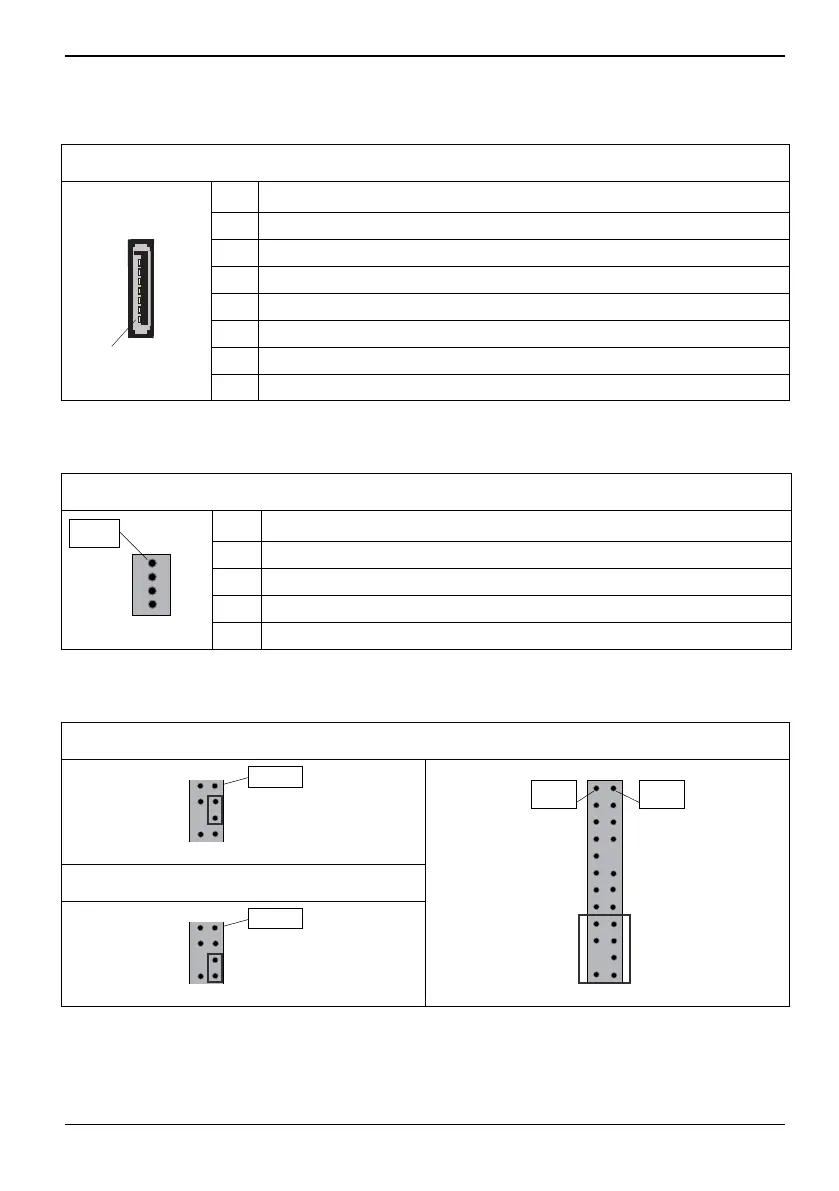

Ports for memory devices
Serial ATA port (internal, white)
POL Signal
1 GND
2 Transmit data negative
3 Receive data negative
4 GND
5 Transmit data positive
6 GND
7 Receive data positive
System monitoring and management connectors
SCSI LED connector (Internal)
PIN Signal
1 Not connected
2 SCSI-ON LED (low active)
3 SCSI-ON LED (low active)
Pin 1
4 Not connected
Configuration jumper on front panel pin connector
Standard jumper position (Recovery BIOS deactivated)
Pin 18
Recovery BIOS enabled
Pin 18
Pin 2
Pin 1
