6.2 Replacing the Pad ASY
75
6
REPLACING CONSUMABLES
3.

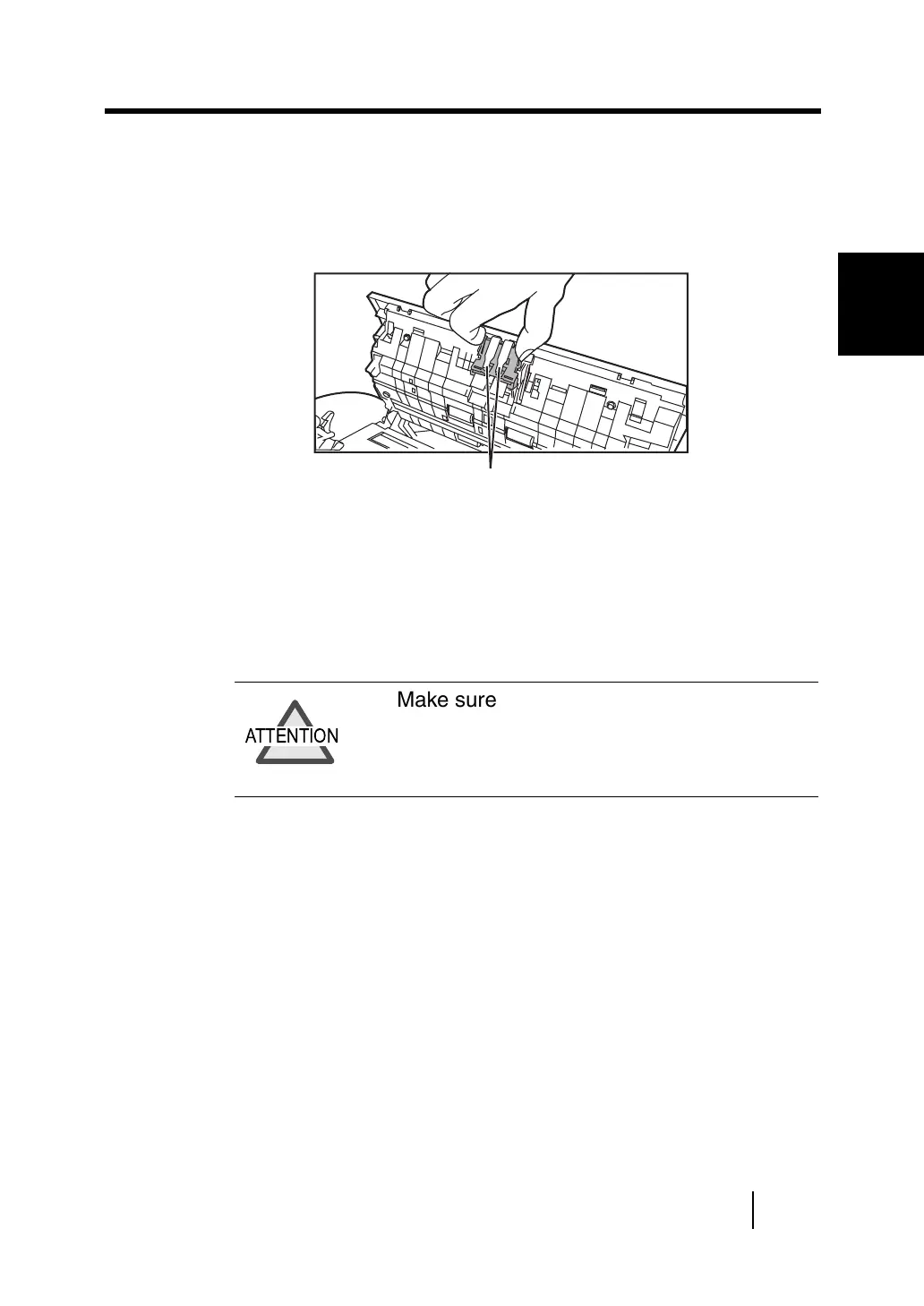

Remove the Pad ASY.
Press in the knobs on both ends of the Pad ASY, and pull the
Pad ASY upwards and towards you.
When doing this, take care not to catch the pick springs.
4.
Attach the new Pad ASY.
Hold both ends of the new Pad ASY and attach it to its
installation location.
When doing this, take care not to catch the pick springs.
ATTENTION
Make sure that the Pad ASY is completely
attached. An incompletely attached Pad
ASY might cause document jams or other
feed errors.
