Getting to Know Your Computer
9
Left-Side Panel Components
The following is a brief description of your
LifeBook notebook’s left-side components.
(Figure 2-4)
Microphone Jack
The microphone jack allows you to connect an
external mono microphone.
Headphone Jack
The headphone jack allows you to connect
headphones or powered external speakers.
ExpressCard™ Slot
The ExpressCard™ Slot allows you to install an
ExpressCard™ module.
PC Card Slot
The PC Card Slot allows you to install a Type I or
Type II PC Card.
USB 2.0 Port
The USB port allows you to connect Universal
Serial Bus 2.0 or USB 1.1 devices. Note that there
are three additional USB 2.0 ports on the rear of
the system.
Memory Stick/SD Card Slot
The Memory Stick/SD card slot allows you to
install a flash memory card for data storage. This
architecture allows you to transfer data from a
variety of different digital devices, such as SD
card, Memory Stick or Memory Stick Pro.

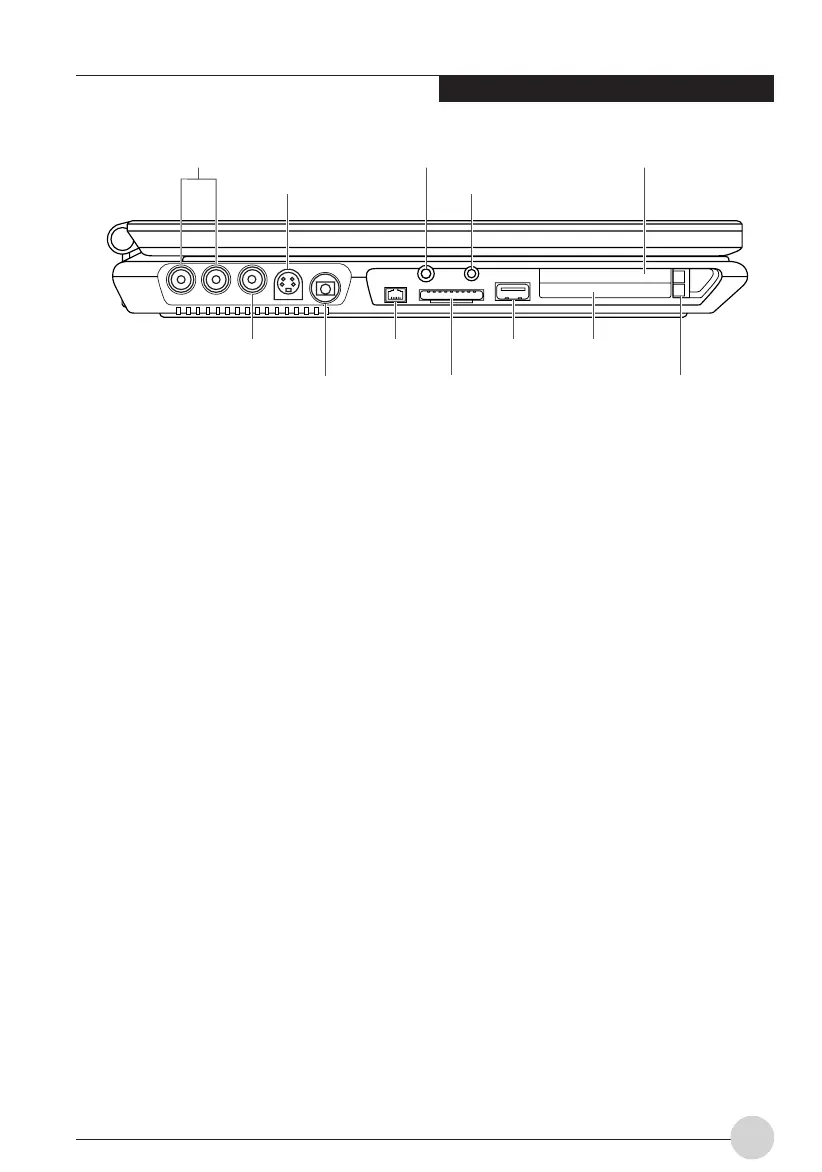

Figure 2-4. LifeBook notebook left-side panel
Microphone Jack
PC Card Slots
IEEE 1394 (4-pin) Port
The 1394 port is used to connect between your
LifeBook notebook and a peripheral such as a
digital video camera.
Audio Input Jack*
This jack is used to connect to the audio output
of external devices such as video decks or set
top boxes.
S-Video Input Jack*
This jack is used to connect to the S-video output
port of external video devices. The image output
from a device connected to this jack is displayed
when “S-Video” input is selected.
Video Input Jack*
This jack is used to connect to the video output
of external video devices. The image output from
a device connected to this jack is displayed when
“Composite” input is selected.
Antenna Mini-Jack*
This jack is used to connect a TV or cable TV
using the Mini Antenna Cable and RF Coaxial
Cable included.
* Items marked with an asterisk (*) are found only in
models with the optional built-in TV Tuner. For
instructions on operating these features, refer to the
TV Tuner User’s Guide Section.
Headphone Jack
ExpressCard™ Slot
1394 Jack
Memory Stick/SD Card Slot
USB Port
Eject Buttons
Video Input Jack*
Antenna Mini-Jack*
Audio Input Jack*
S-Video Input Jack*
LB_Topaz 02 (05-18) 11/10/05, 8:31 AM9
