28
Left Side Features
For left side features related to the TV Tuner, refer
to Figure 2.
Audio Input Jacks
Used to connect to the audio output of external
devices such as video decks or set top boxes.
Video Input Jack (Composite)
Used to connect to the video output port of
external video devices. The image input from a
device connected to this jack is displayed when
“Composite” input is selected.

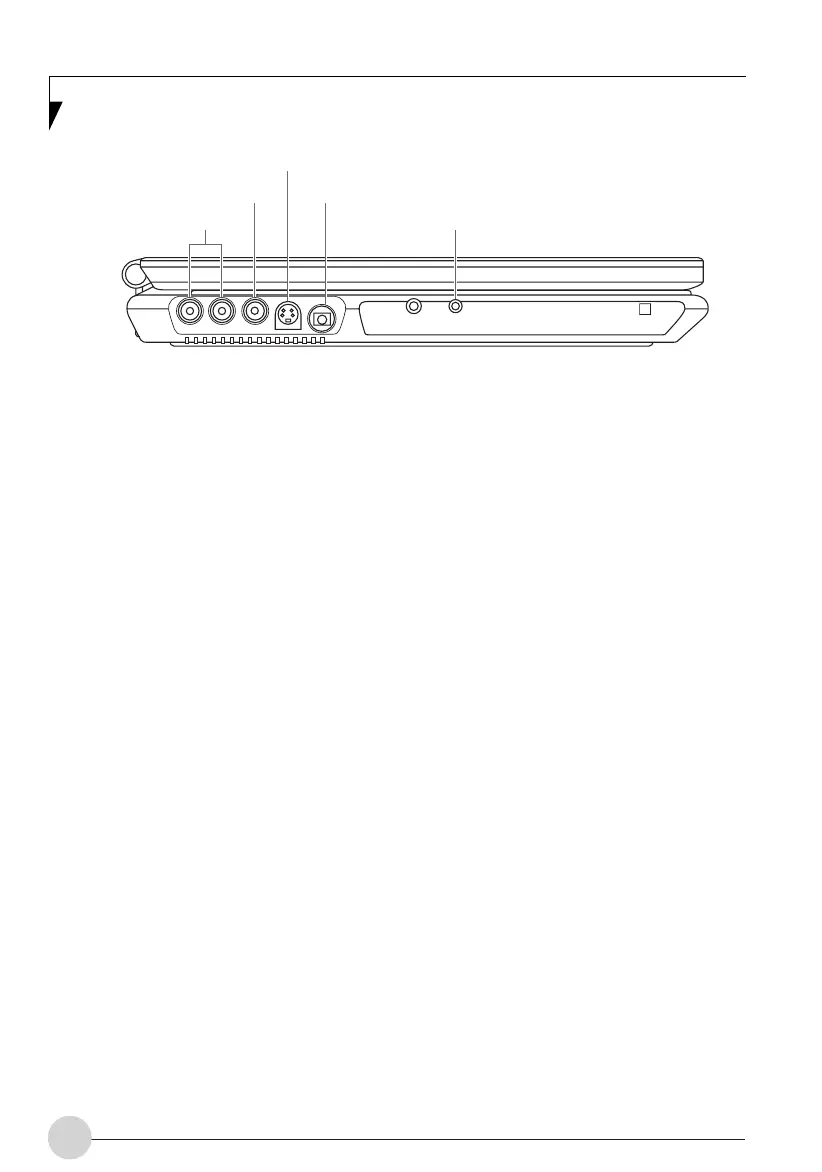

Figure 2. Left Side Features
S-Video Input Jack
Used to connect to the S-video output port of
external video devices. The image input from a
device connected to this jack is displayed when
“S-Video” input is selected.
Antenna Mini-Jack
Used to connect a TV or cable TV antenna using
the RF adapter cable included with the kit.
Headphone Jack
Used to connect to commercially available
headphones.
Audio Input Jacks
Video Input Jack (Composite)
S-Video Input Jack
Headphone Jack
Antenna Mini-Jack
LB_Topaz 04 (23-54) 11/10/05, 8:33 AM28
