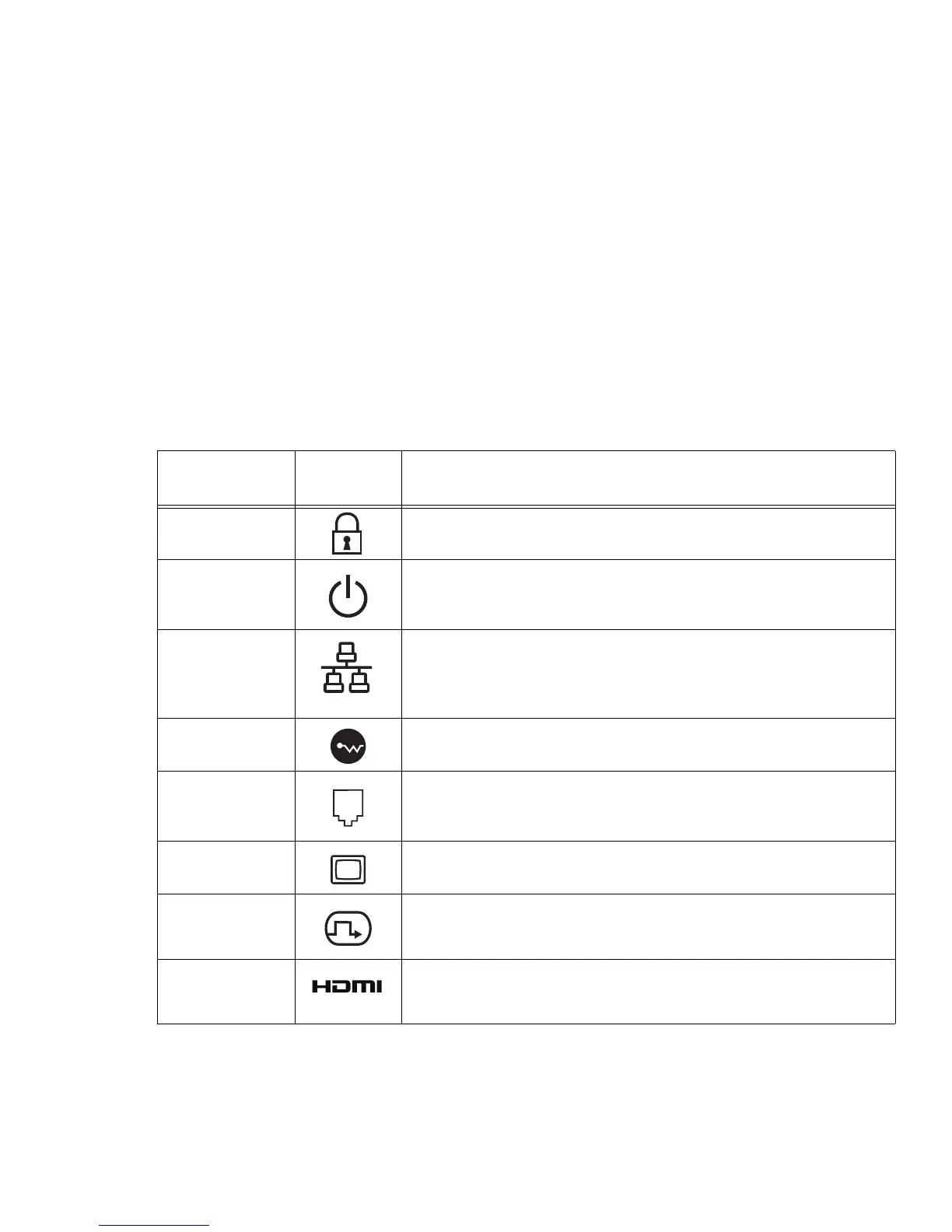

- Locating the Controls and Connectors
Security lock slot The security slot allows you to secure the Tablet PC using compatible
locking devices.
Suspend/
Resume button
The Suspend/Resume button allows you to suspend Tablet PC activity
without powering off, resume your system from suspend mode, and power
on the system when it has been shut down from Windows.
Local Area
Network (LAN)
The LAN (RJ-45) jack is used to connect the internal 10/100/1000* Base-
T/Tx Ethernet to a Local Area Network (LAN) in your office or home, or
broadband devices such as a cable modem, DSL, or satellite Internet.
*1000 Mbps, commonly referred to as Gigabit Ethernet.
Wireless Device
On-Off Switch
The wireless device switch allows you to turn power to the optional wireless
LAN, Bluetooth, and/or WWAN devices on and off.
Modem Connect a telephone line to the internal modem using a standard RJ-11
telephone plug. (Note that the modem is present only in non-WWAN
models.)
External Video
port
The external video port allows you to connect an external monitor or LCD
projector to your computer.
Digital Video
Interface
The DVI-D port on the optional port replicator allows you to connect a flat-
panel LCD monitor or television that is equipped with a DVI-D port for ultra-
crisp digital images and graphics.
HDMI
The HDMI port on the optional port replicator allows you to connect
compatible digital devices with your computer (such as a high-definition
television or AV receiver).
