35 - Display Panel
Holding the Tablet PC
Your computer can be used in tablet configuration in three different orientations (Figure 12).
• Portrait Orientation: Hold the system with the display positioned vertically with the latch on the
left.
• 2nd Portrait Orientation: Hold the system with the display positioned vertically with the latch on
the right.
• Landscape Orientation: Hold the system with the display positioned horizontally with the latch
on the top.
Note: Holding the system horizontally with the latch at the bottom is not a functional orientation.

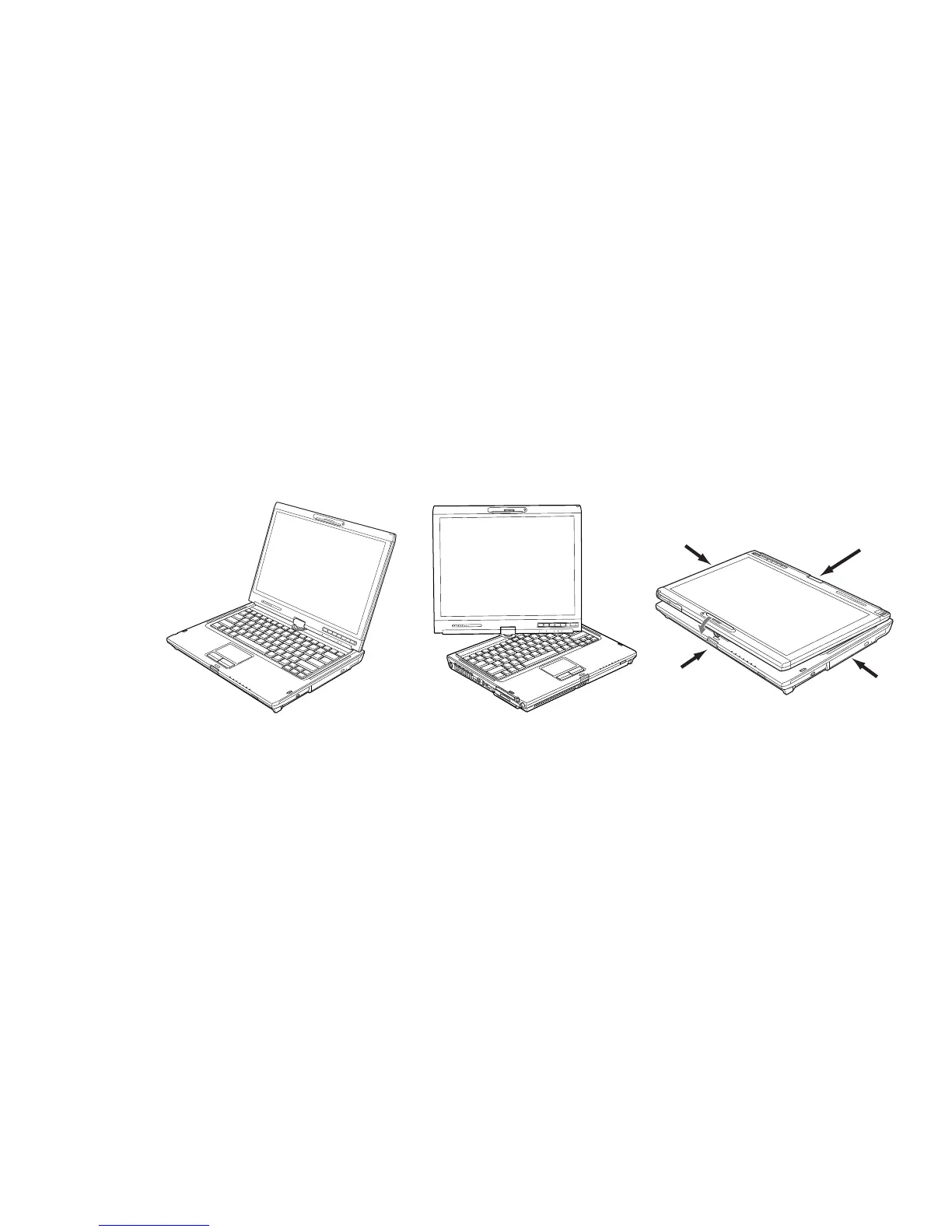

Figure 10. Fully Open Display
Figure 11. Rotating Display
Figure 12. Tablet Mode
2nd Portrait
Orientation
Landscape
Orientation
Non-functional
Orientation
Portrait
Orientation
