4.1 Mounting Requirements
4.1.3 Notes on mounting
Damage
Never remove any labels from the HDD or deface them in any way.
(1) Mounting screw
The mounting screws must use M3 × 0.5 metric
(2) Mounting frame structure
As for a system frame structure mounting the HDDs, the following attentions are required.
a) The frame never touches any components on the PCBA of the HDDs. For example as
shown in Figure 4.3, mount the HDDs with a gap of 2.5 mm or more from the frame.
b) As shown in Figure 4.3, the inward projection of the screw from the HDD frame wall at the
corner must be 2.5 mm ±0.5 mm.
c) Tightening torque of screw must be secured with 0.49 N·m (5 kgf·cm) ±12%.
d) The frame must not distort the HDDs.
e) The impact by an electric screwdriver must not exceed the HDD specifications.

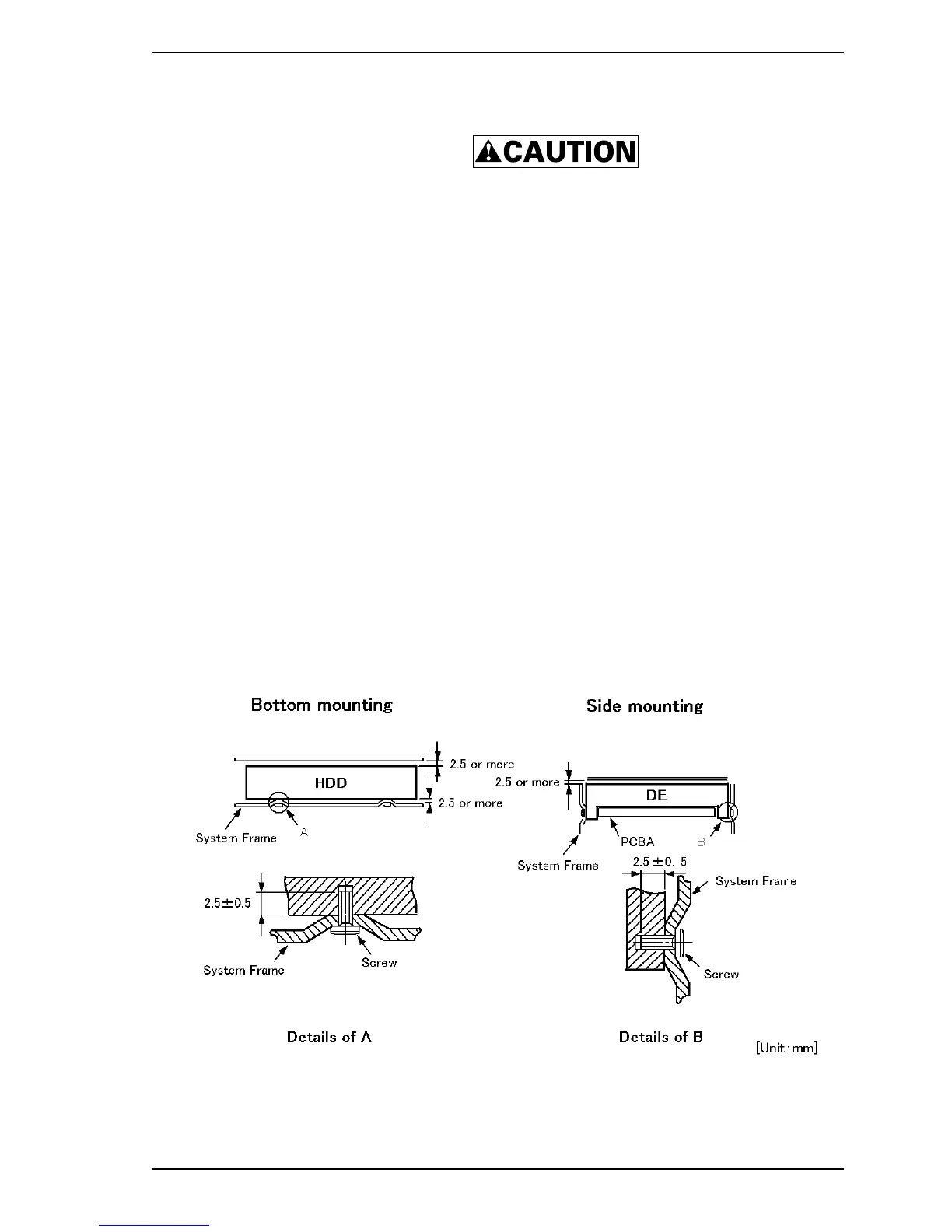

Figure 4.3 Mounting frame structure example
C141-E266 43
