Fujitsu PRIMERGY RX1330 M3

RX1330 M3 Operating Manual 51
Hardware installation
The standard connectors on the rear are marked with symbols, and some are
color-coded:

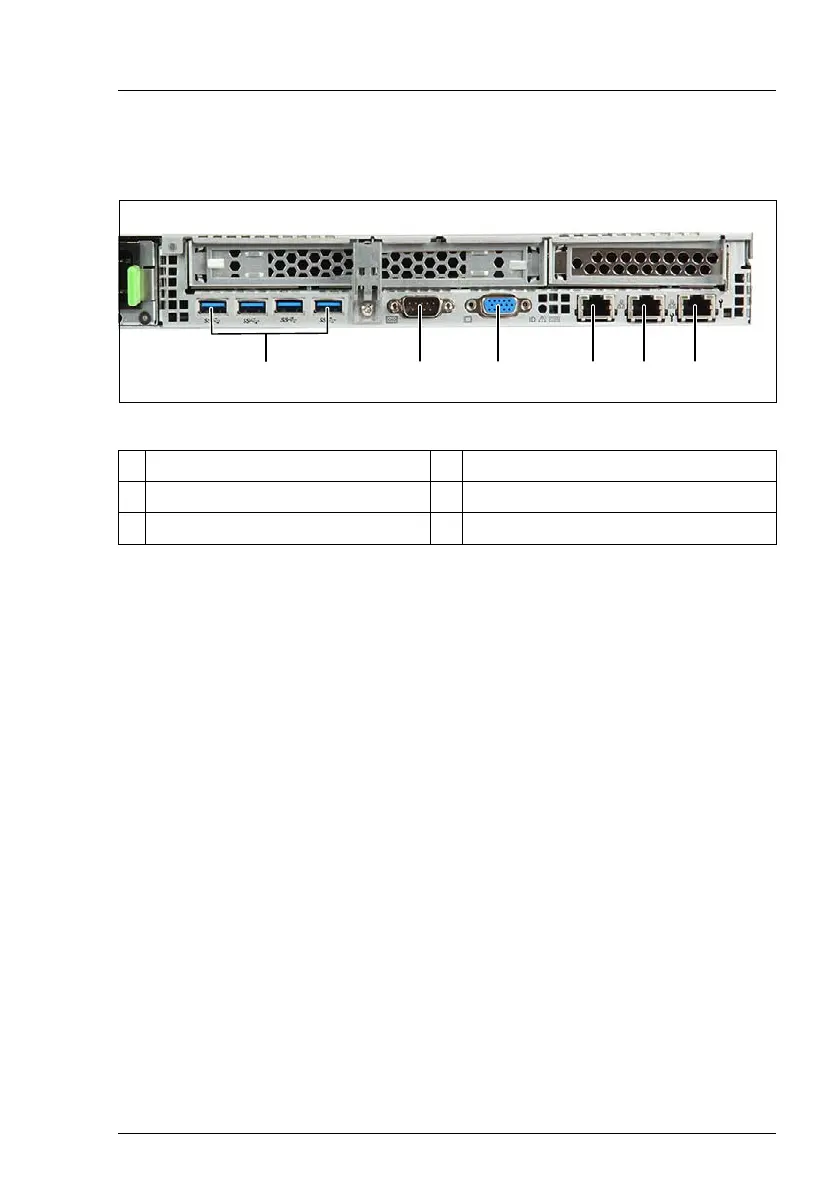

Figure 4: Connectors on the rear
I Shared LAN connector is displayed in the BIOS Setup Utility and on the
MAC addres
s label as LAN2. Standard LAN connector is displayed in the
BIOS Setup Utility and on the MAC address label as LAN1.
Ê Connect the data cables to the server and peripherals.
1 4 x USB 3.0 connectors 4 Standard LAN connector (LAN1)
2 Serial connector COM1 * 5 Shared LAN connector (LAN2)
3 Video connector (blue) 6 Management LAN connector
* The serial interface COM1 can be used as the standard interface or
for
c
ommunication with iRMC.
햲
햴 햷햶햵햳
