Fujitsu PRIMERGY RX1330 M3

54 Operating Manual RX1330 M3
Hardware installation
5.4.2 Using the cable clamps (hot-plug PSU)
You can secure the power cords in cable clamps to ensure that the insulated
connectors cannot be disconnected from the server accidentally.

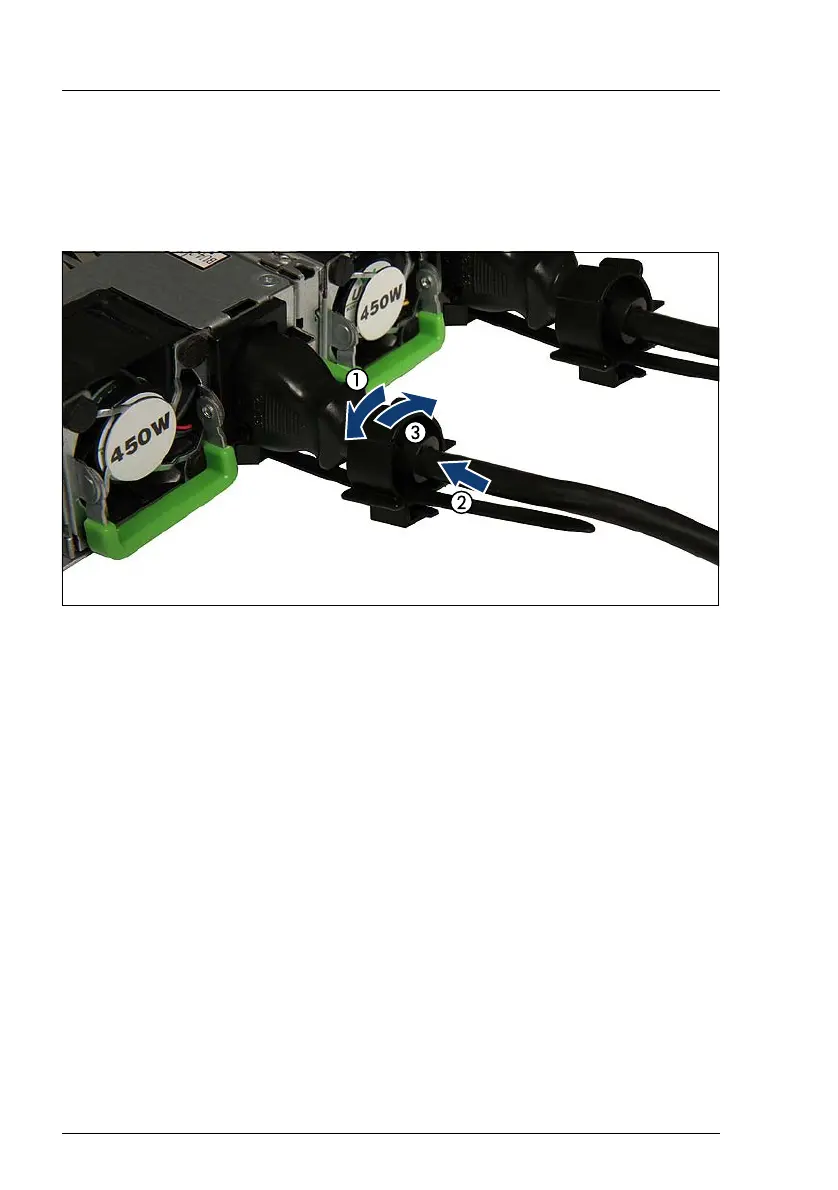

Figure 6: Using cable clamps
Ê Pull the cable clamp up (1).
Ê Thread the power cord through the cable clamp (2).
Ê Press the cable clamp down until it engages to secure the cable (3).
