28 Operating Manual RX1330 M4
3.3.1.2 Server rear

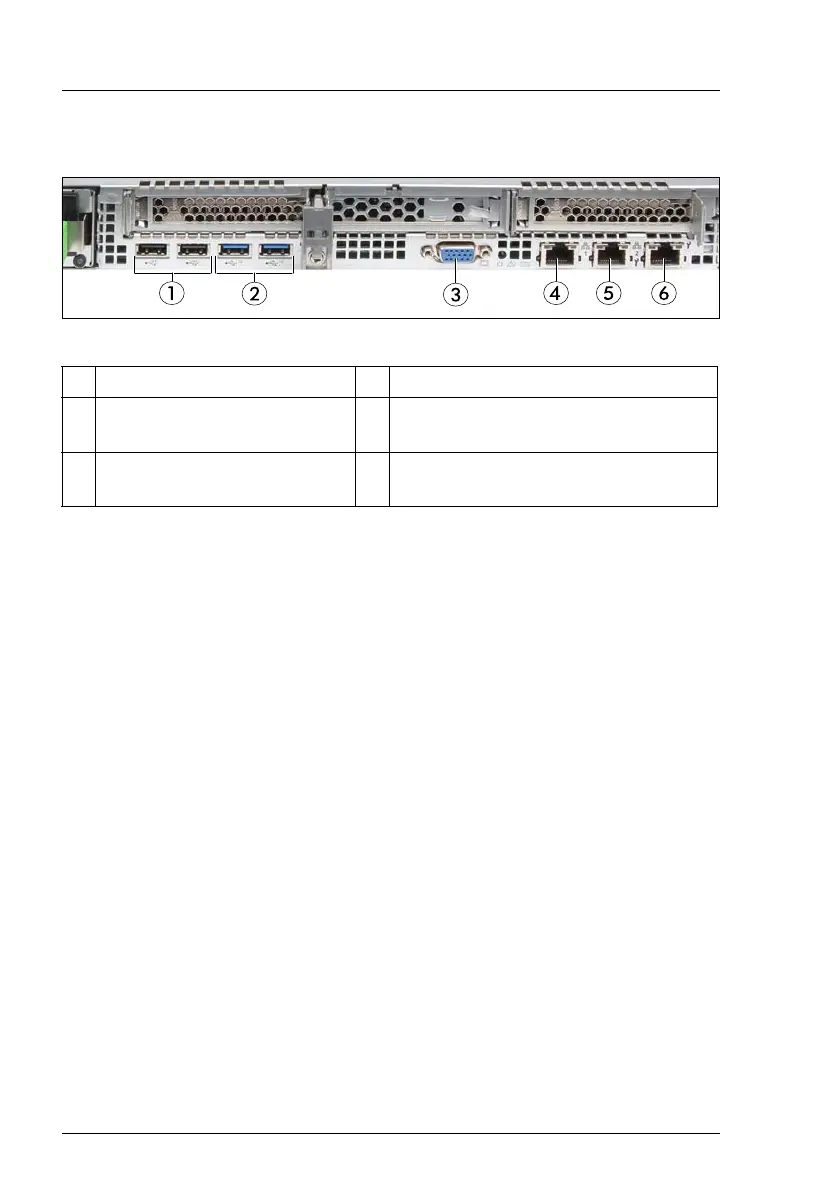

Figure 4: Connectors on the I/O panel
The corresponding indicators are explained in section "Indicators on the server
rear" on page 37.
I Depending on the BIOS settings, the shared LAN connector may also be
used as a management LAN connector. For more information, see the
corresponding BIOS Setup Utility reference manual.
I Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
1 2 x USB 2.0 connectors 4 Standard LAN connector (LAN1)
2 2 x USB 3.1 Gen 2
connectors
5 Shared LAN connector (LAN2)
3 Video connector (VGA) 6 Management LAN connector (for
iRMC server management function)
