82 Operating Manual RX1330 M4
6.2.2 Installing 3.5-inch HDD modules
6.2.2.1 Removing a 3.5-inch HDD dummy module

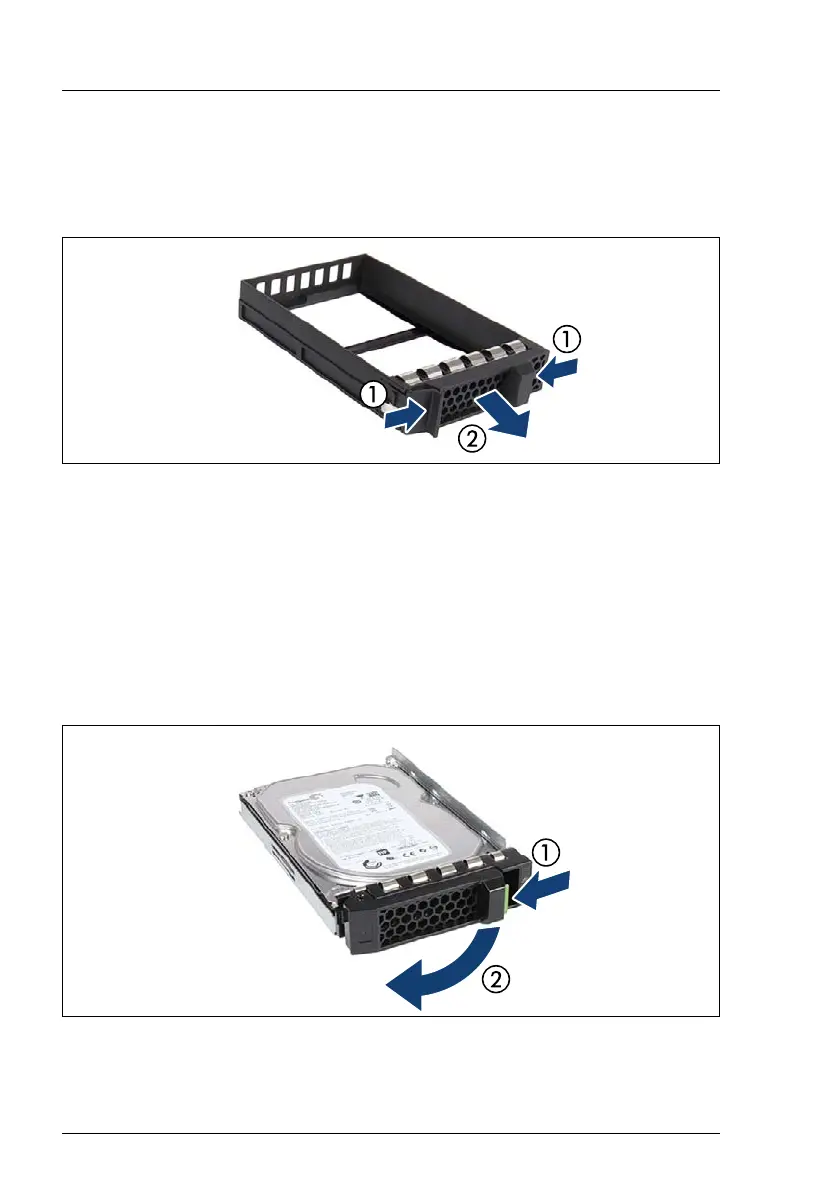

Figure 23: Removing a 3.5-inch dummy module
Ê Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Keep the dummy module for future use.
Always replace dummy modules into unused HDD bays to comply with
applicable EMC regulations and satisfy cooling requirements.
6.2.2.2 Installing a 3.5-inch HDD module
Figure 24: Opening the 3.5-inch HDD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
