6.2.1.2 Installing a 2.5-inch HDD/SSD module

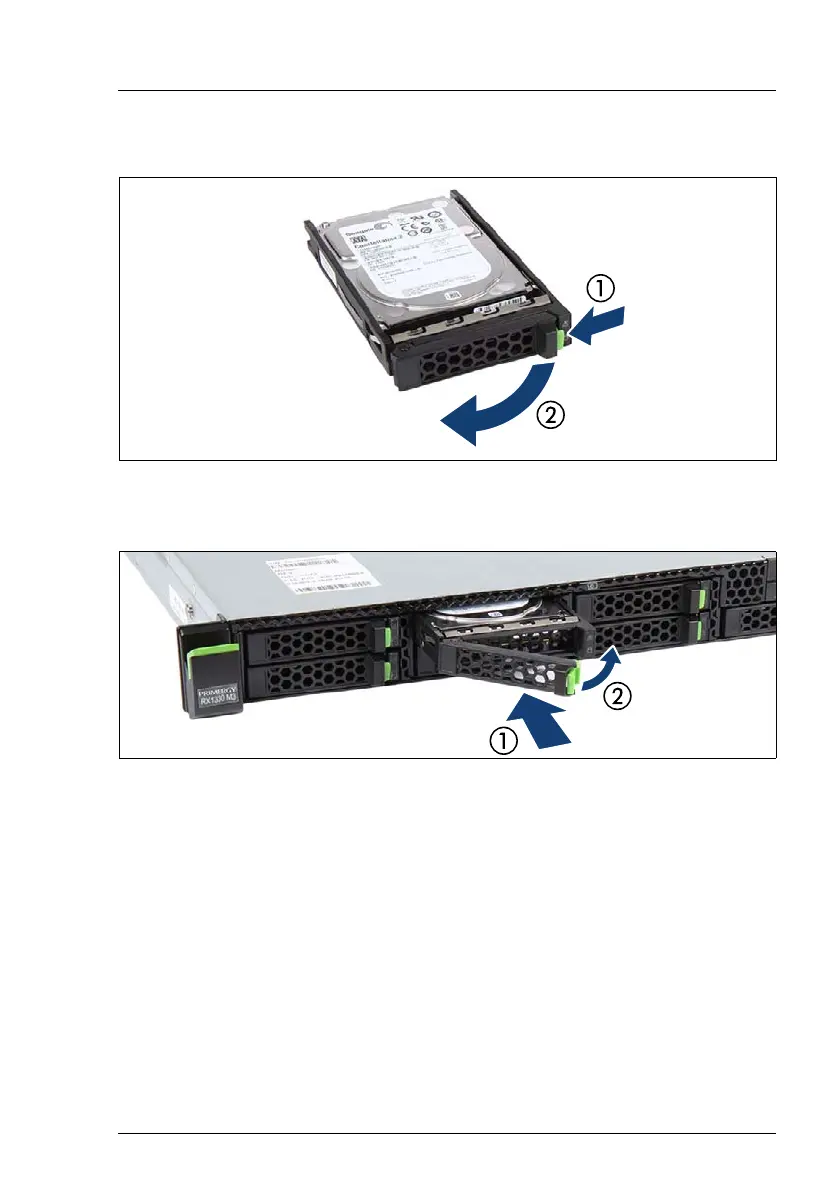

Figure 21: Opening the 2.5-inch HDD/SSD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
Figure 22: Installing the 2.5-inch HDD/SSD module
Ê Insert the HDD/SSD module into a drive bay and carefully push back as far
as it will go (1).
Ê Close the locking lever to lock the HDD/SSD module in place (2).
Ê When using a RAID array, add the additional HDD/SSD to the RAID array.
I Configuring the RAID array, see the documentation of the RAID
controller, used in your configuration, see section "Documentation
overview" on page 13.
