RX1330 M4 Operating Manual 85
Ê Push the handle of the PSU halfway upward in the direction of the arrow.

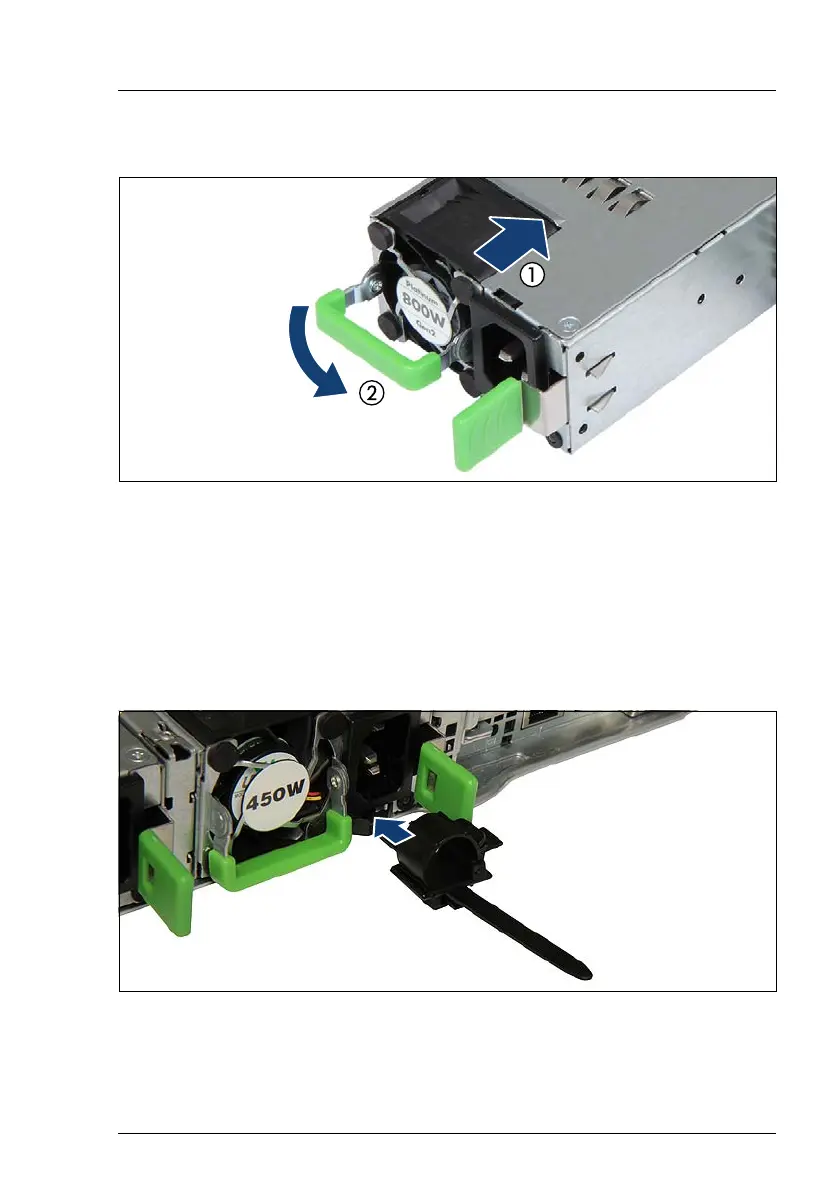

Figure 28: Installing a PSU
Ê Push the PSU into its bay (1) as far as it will go until the release latch snaps
in place.
Ê Fold down the handle on the PSU (2).
I Ensure that the PSU engages correctly in the bay and is locked in
position. This is the only way to prevent the PSU from sliding out of its
bay and being damaged during transportation.
Figure 29: Installing the cable tie
Ê Push the cable tie into the corresponding hole until it clicks in.
Ê If applicable, configure the redundant power supply.
