Fujitsu PRIMERGY TX100 S2 - Connecting Devices to the Server

40 Options Guide TX100 S2
Non-accessible drives
Ê Align the three pins on the Easyclick rails with the screw holes on the hard
disk drive.

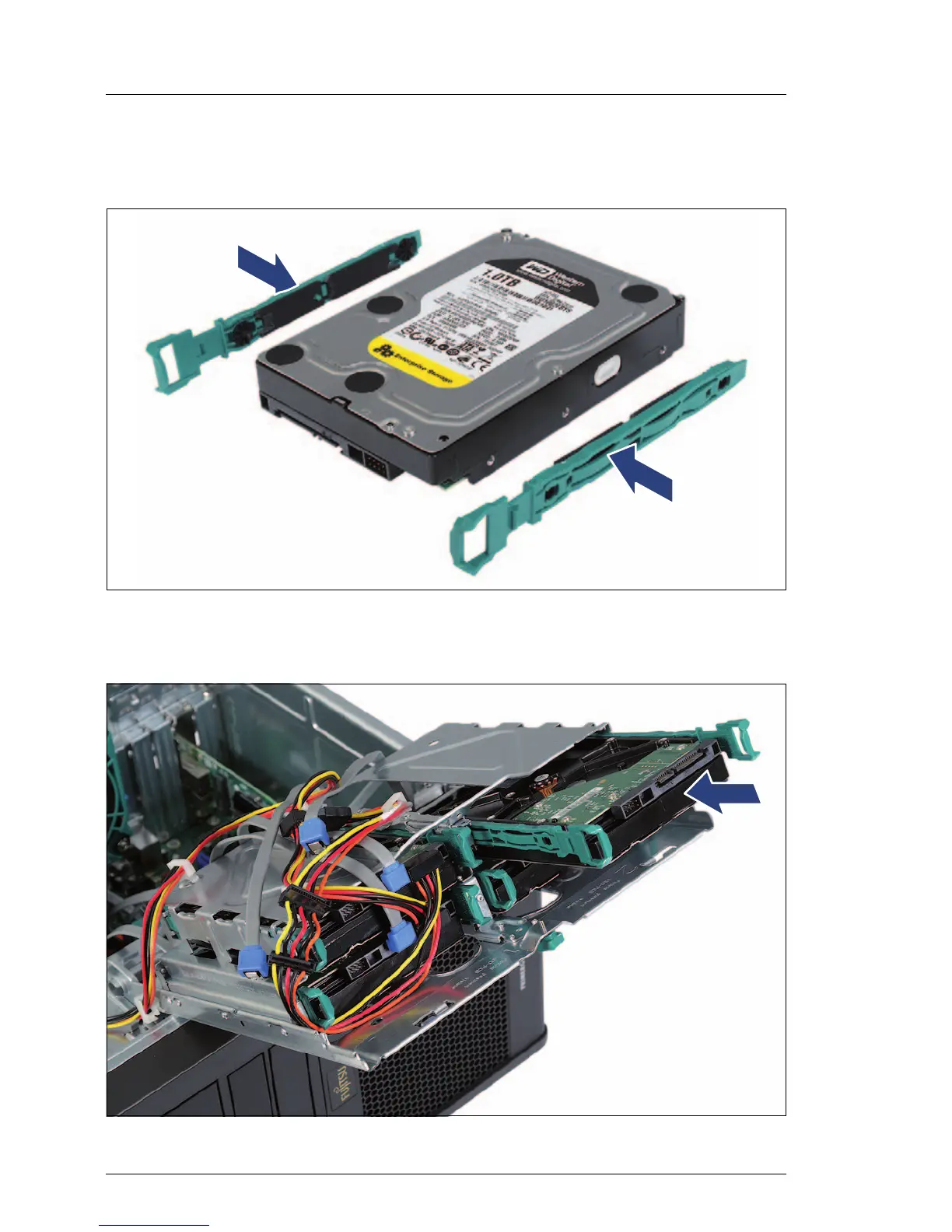

Figure 18: Mounting HDD Easyclick rails (B)
Ê Attach an Easyclick rail on each side of the new hard disk drive.
Figure 19: Installing an HDD
