Fujitsu PRIMERGY TX100 S2 - Configuring the Server and Operating System

TX100 S2 Options Guide 51
Expansion cards and parallel interface

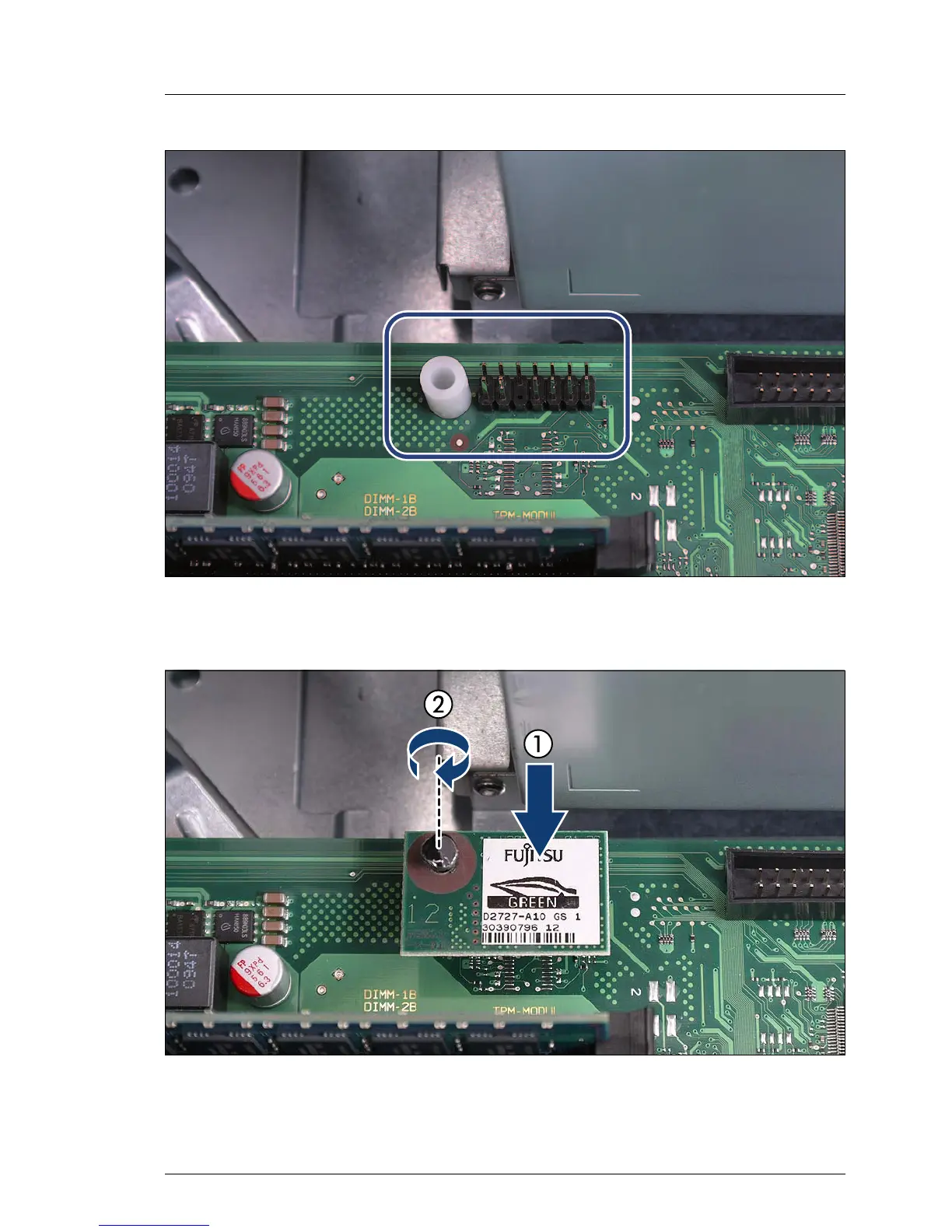

Figure 28: Inserting the TPM spacer on the system board
Ê Insert the TPM spacer into the hole on the system board.
Figure 29: Fastening the TPM
Ê Insert the TPM on the system board (1).
