Fujitsu PRIMERGY TX1330 M3 User Manual

52 Operating Manual TX1330 M3
Hardware installation
5.4 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the “FUJITSU Server PRIMERGY
TX1330 M3 Upgrade and Maintenance Manual”. The standard connectors are
indicated by symbols and color coding:

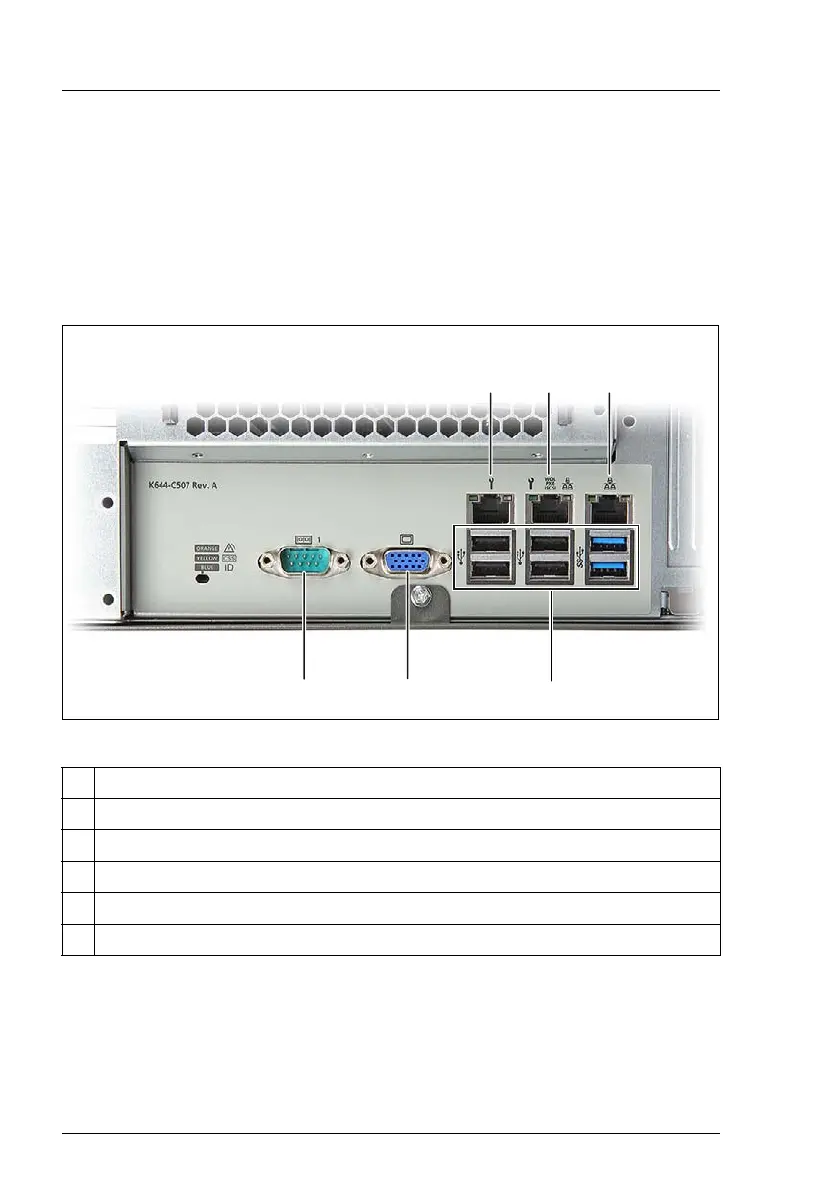

Figure 2: Connector panel on the rear side
I Some of the devices that can be connected may require special drivers
(see the documentation for the connected device).
Ê Connect the data cables to the server and peripherals.
1 Management LAN connector, for iRMC S4 server management function
2 Shared LAN connector (LAN1)
3 Standard LAN connector (LAN2)
4 6 USB connectors: 4x USB 2.0 (black); 2x USB3.0 (blue)
5 Video connector (blue)
6 Serial connector COM1 (turquoise)
햶
햷
햵
햲 햴햳

Fujitsu PRIMERGY TX1330 M3 Specifications

General

Processor socket	-
Built-in processor	No
Motherboard chipset	Intel® C236
Compatible processor series	Intel Core i3, Intel Pentium Dual-Core, Intel Xeon
Number of processors supported	1
ECC	Yes
Number of DIMM slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD & SSD
Number of storage drives supported	24
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Chassis type	Rack (4U)
Product color	Black, Red
