TX1330 M4
Operating Manual 29
Product description
3.3.1.2 Server rear

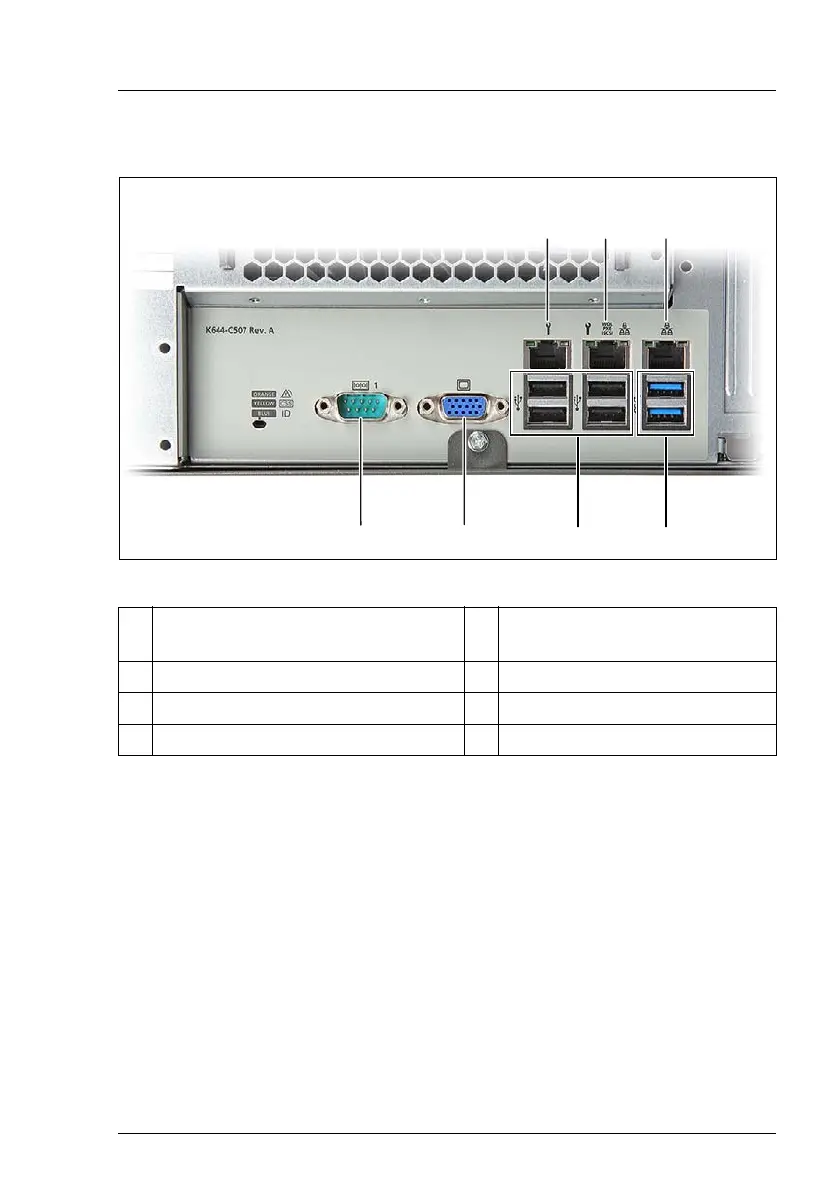

Figure 6: Connectors on the I/O panel
The corresponding indicators are explained in section "Indicators on the server
rear" on page 37.
I Depending on the BIOS settings, the shared LAN connector may also be
used as a management LAN connector. For more information, see the
corresponding BIOS Setup Utility reference manual.
I Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
1 Management LAN connector for
iRMC server management function
5 4x USB 2.0 connectors
2 Shared LAN connector (LAN1) 6 Video connector (VGA)
3 Standard LAN connector (LAN2) 7 Serial connector COM1*
4 2x USB 3.1 Gen 2 connectors
* The serial connector can be used as the standard interface or for
communication with iRMC.
