Operation
6.2 Access to the drives (floorstand model)
6.2.1 Removing the drive covers

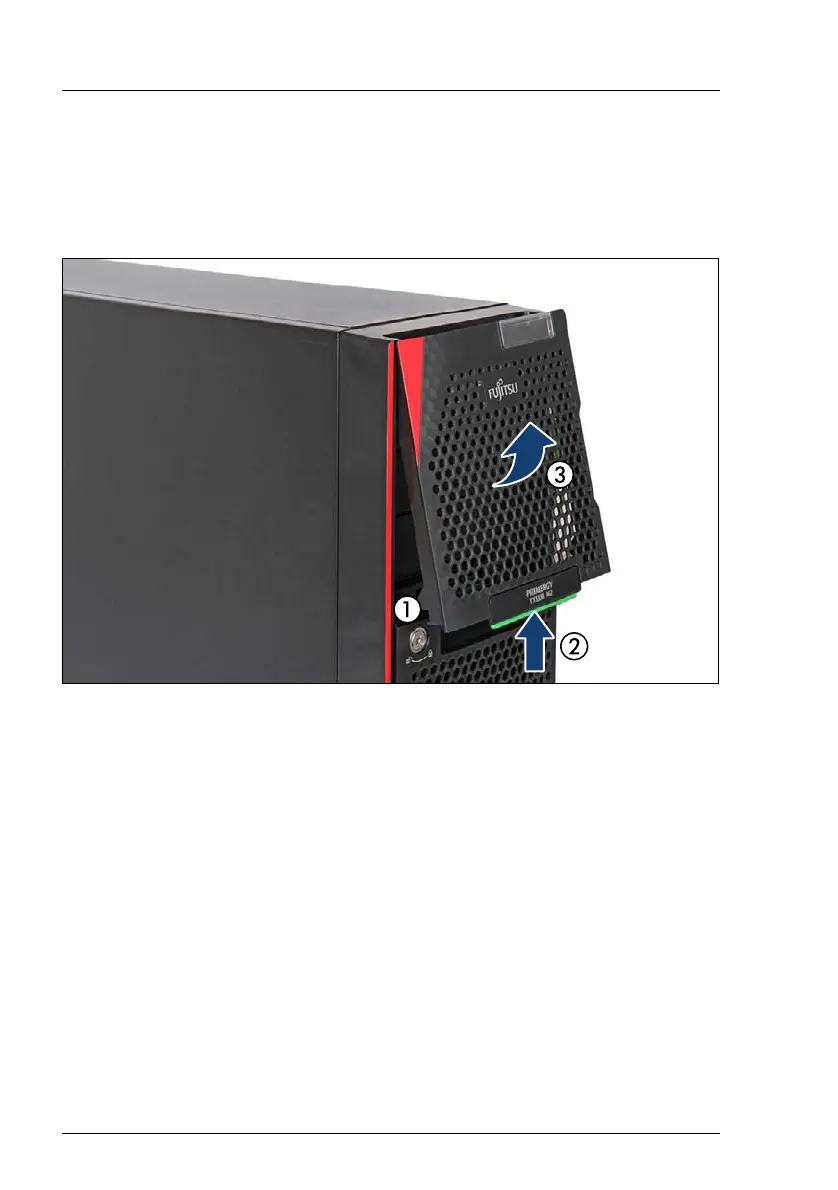

Figure 21: Removing the accessible drive bay cover
Ê Turn the key counterclockwise (1) to unlock the drive cover and remove the
key.
Ê Press up on the locking latch (2) and fold out the accessible drive bay cover
(3).
Ê Remove the accessible drive bay cover from the front cover.
