Fujitsu PRIMERGY TX150 S8 System Configurator And Order-Information Guide

System configurator and order-information guide
PRIMERGY TX150 S8 Status 2016-02-29

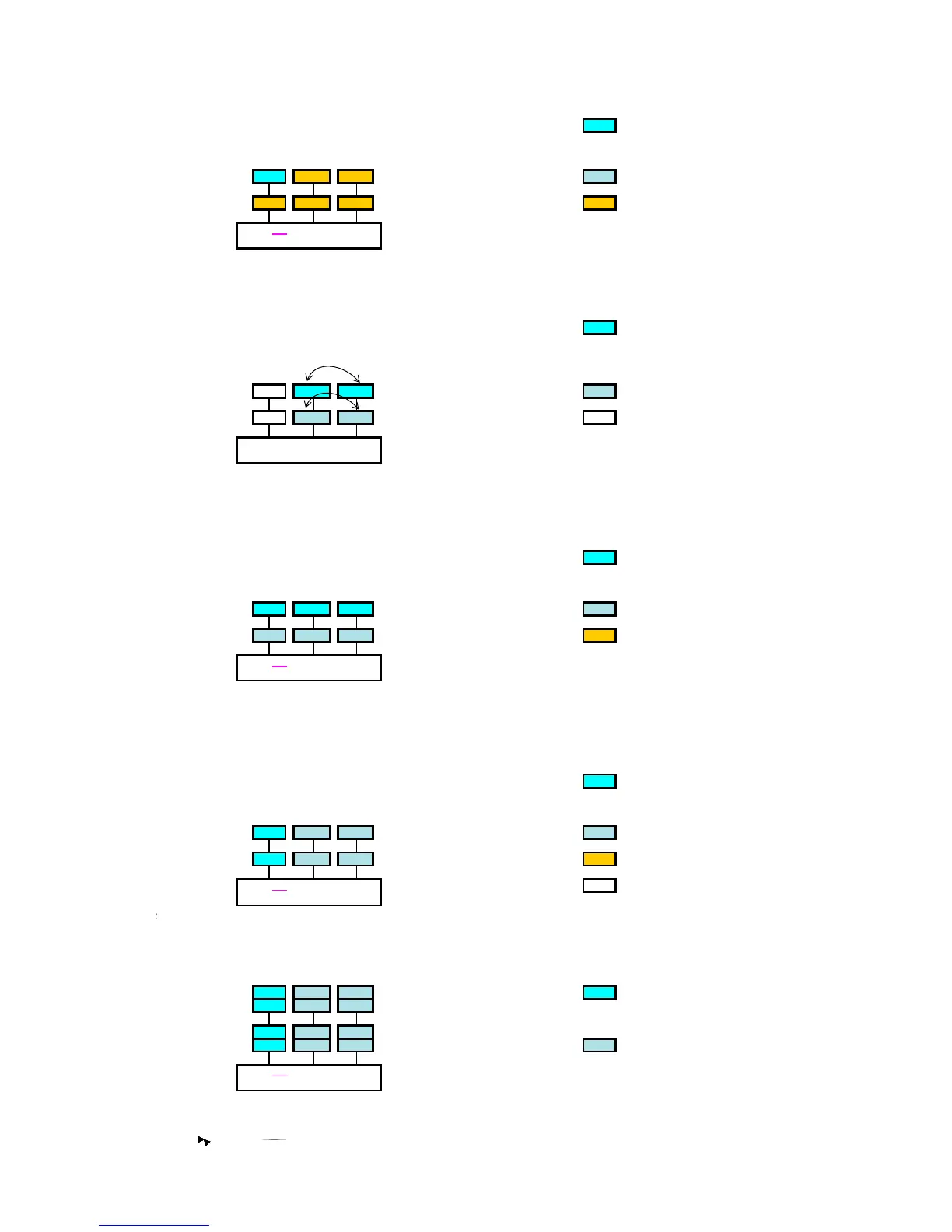

1. Independent Channel Mode
required
Bank I Data
Data
Data optional, same type in Bank per CPU
(black sockets)
Bank II Data
Data
Data optional, any type
(blue sockets)
Independent Channel Mode allows all channels to be populated in any order
Can run with differently rated DIMMs and use the settings of the slowest DIMM installed in the system
2. Mirrored Channel Mode
required
Bank I
--------
Data Mirror
optional, same type in Bank per CPU
(black sockets)
Bank II
--------
Data Mirror
--------
not used
(blue sockets)
Mirrored Channel Mode requires identical modules on channel B / C
50% of the capacity is used for the mirror => the available memory for applications is only half of the installed memory
If this mode is used, a multiple of 2 identical modules has to be ordered.
3. Performance Channel Mode
required
Bank I Data
Data
Data optional, same type in Bank per CPU
(black sockets)
Bank II Data
Data
Data optional, any type
(blue sockets)
Performance Channel Mode requires identical modules on all channels of each Bank per CPU.
If this mode is used, a multiple of 3 identical modules has to be ordered.
4. Rank Sparing Mode
1-Rank Memory modules (RDIMM)
required
Bank I Spare Spare Spare
optional, same type in Channel per CPU
(black sockets)
Bank II Data Data Data optional, any type
(blue sockets)
2-Rank Memory modules (RDIMM)
Bank I R1 Spare Spare Spare
required
(black) R2 Data Data Data
Bank II R1 Data Data Data
(blue) R2 Data Data Data
optional, same type in Channel per CPU
Rank Sparing Mode requires identical modules (same capacity and technology) within the same channel.
The available memory for applications will vary depending on configuration. Please refer to the spreadsheet above
"Effective Memory capacity with active Rank Sparing Mode". Population rule for Rank sparing mode is to achieve max.
available memory.
1st XEON CPU
(4/6/8 Core)
Channel A
Channel B
Channel C
Channel B
Channel C
1st XEON CPU
(4/6/8 Core)
Channel A
Channel B
Channel C
Channel A
1st XEON CPU
(4/6/8 Core)
1st XEON CPU
(4/6/8 Core)
Channel A
Channel B
Channel C
(4/6/8 Core)
Channel A
Channel B
Channel C
Fujitsu PRIMERGY Server 12 of 24
