Fujitsu PRIMERGY TX150 S8 System Configurator And Order-Information Guide

System configurator and order-information guide
PRIMERGY TX150 S8 Status 2016-02-29

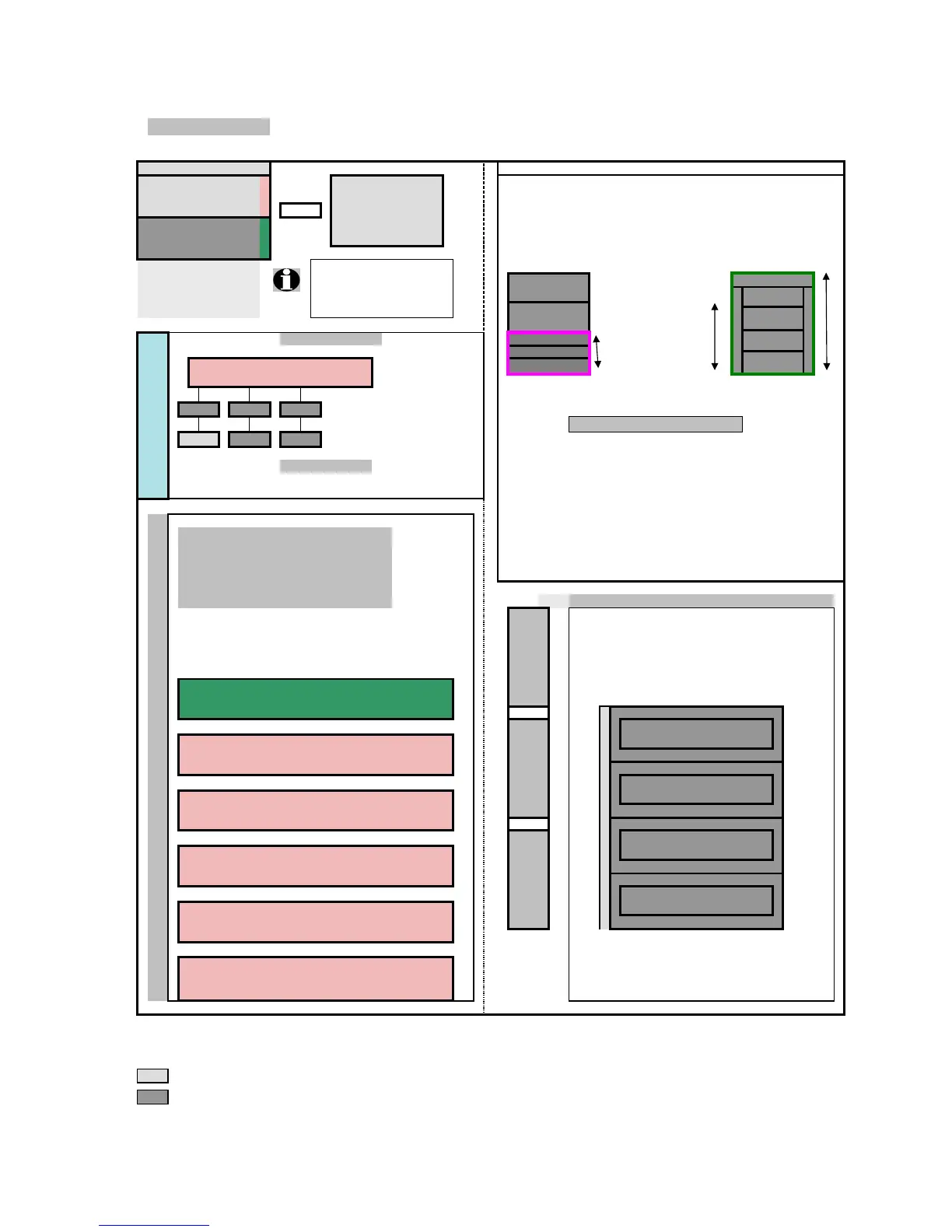

Configuration diagram PRIMERGY TX150 S8 SATA LFF (3.5") System Unit
System unit ( I )
SIDE VIEW FRONT VIEW
red. Fan / PSU Kit 3 x 5.25" bays available
1. PSU
standard
3 x HH 5.25" free or 2 x HH 5,25" free + Option A or
or
Power
2. PSU
Supply
0 x HH 5.25" free + Option C
(red. + hot plug)
Option A Option C
std. PSU + std. Fans
1.6 * 5.25" 3x 1.6 * 5.25"
or
red. hp PSU + red. Fans
Depending on Base Unit
Processor ( II )
1x Xeon 4C, 6C or 8C or Pentium
CPU incl. Heatpipe
II / A II / B II / C
Accessible drives ( V )
I / A I / B I / C
Mounting Kit DVD(sl) + LSP/LSD: (Option A)
Memory ( III )
- support for SL (0.5") DVD Drive + LSD (Local Service Display)
the CPU offers 2 Banks ( I and II ) with 3 Channels each
- occupies one 5.25" bay
MtK DVD(sl) + LSP/LSD + 2x SAS/SATA LFF HDD: (Option B)
- support for 2x 3.5" SAS/SATA HDD hot plug
+ support for SL (0.5") DVD Drive + LSD (Local Service Display)
Extension slots
MtK DVD(sl) + 4x SAS/SATA LFF HDD: (Option C)
- support for 4x 3.5" SAS/SATA HDD hot plug
SAS Controller ( VII ) + support for SL (0.5") DVD Drive
Disk Array ( VIII )
Communication/Network ( IX )
Miscellaneous ( X ) Hard disk drives ( VI )
Slot 6 PCIe-2 x1,170 mm @ PCH
Slot5 PCIe-3 x4, 280 mm @ CPU
Possibility to install PCIe x8 cards; 2nd pref. RAID Slot
Slot 4 PCIe-3 x16, 280 mm @ CPU
Slot 3 PCIe-3 x4, 280 mm @ CPU
Possibility to install PCIe x8 cards
Slot 2 PCIe-2 x4, 235 mm @ PCH
Possibility to install PCIe x8 cards; 1st pref. RAID Slot
Slot 1 (5V): PCI 32-Bit/33MHz, 280mm @ PCH
Key:
Included in basic unit
Option
1.)
2.)
4.)
Fan 1
4x 3,5" HDD Frame
5.)
3.)
LSD Option
Fan 3
4 port SAS Backplane
3x 120 mm Fans (no redundancy)
6.)
3.5"x1" SAS or SATA
3.5"x1" SAS or SATA
3.5"x1" SAS or SATA
3.5"x1" SAS or SATA
Fan 2
6 PCI-Busses
1.6 * 5.25"
not used
1.6 * 5.25"
Slim DVD
Fan4 for Redundancy
Slim DVD
SAS / SATA
SAS / SATA
SAS / SATA
SAS / SATA
Fujitsu PRIMERGY Server 3 of 24

Fujitsu PRIMERGY TX150 S8 Specifications

General

Brand	Fujitsu
Model	PRIMERGY TX150 S8
Category	Server
Language	English
