TX2560 M2 / RX2560 M2
Operating Manual 57
5.5.1 Using the cable clamp
You can secure power cords in a cable clamp to ensure that the insulated
connectors cannot be disconnected from the server accidentally.

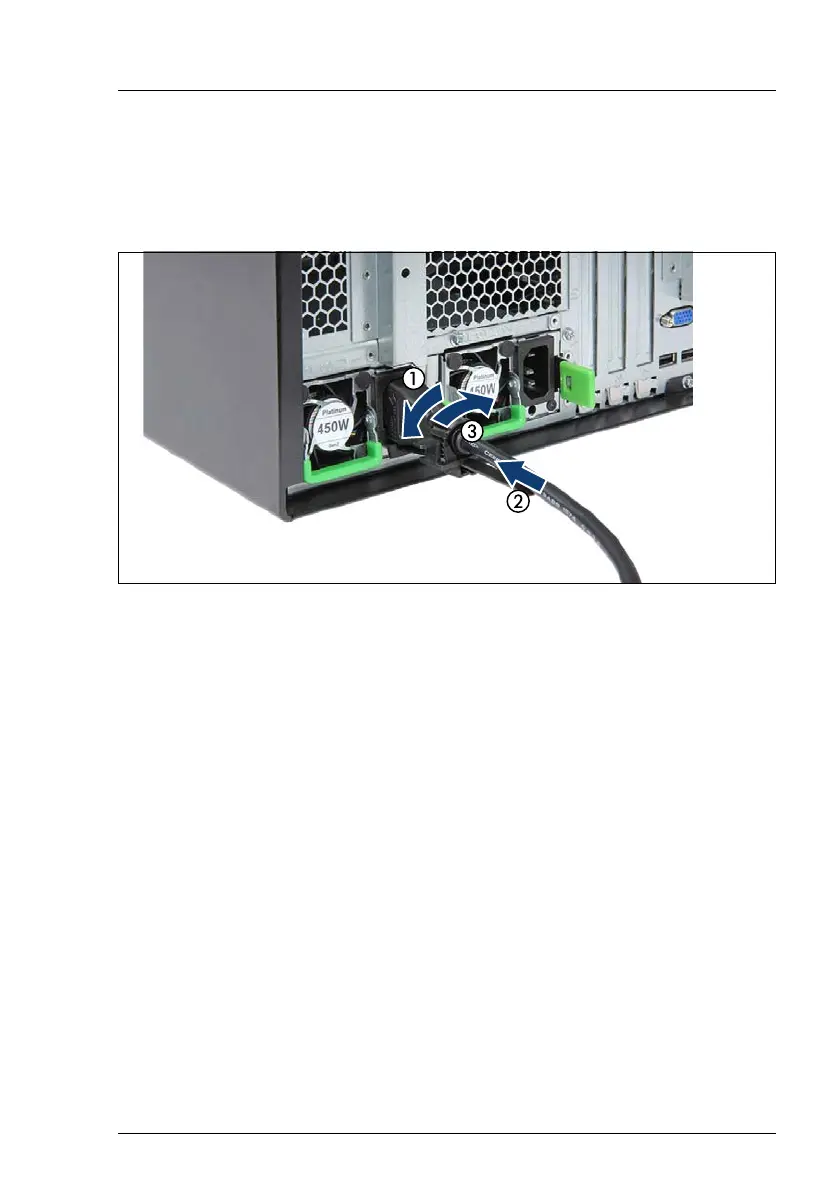

Figure 4: Cable clamp
Ê Pull the cable clamp up (1).
Ê Thread the power cord through the cable clamp (2).
Ê Press the cable clamp down until it engages to secure the cable (3).
I You can open the cable clamp by pressing on the unlocking lever.
