66 Operating Manual
TX2560 M2 / RX2560 M2
Starting up and operation
6.2.1.4 Indicators on the drives
Optical drive activity indicator
Lights up green when the storage medium is being accessed.
Hard disk drive indicators

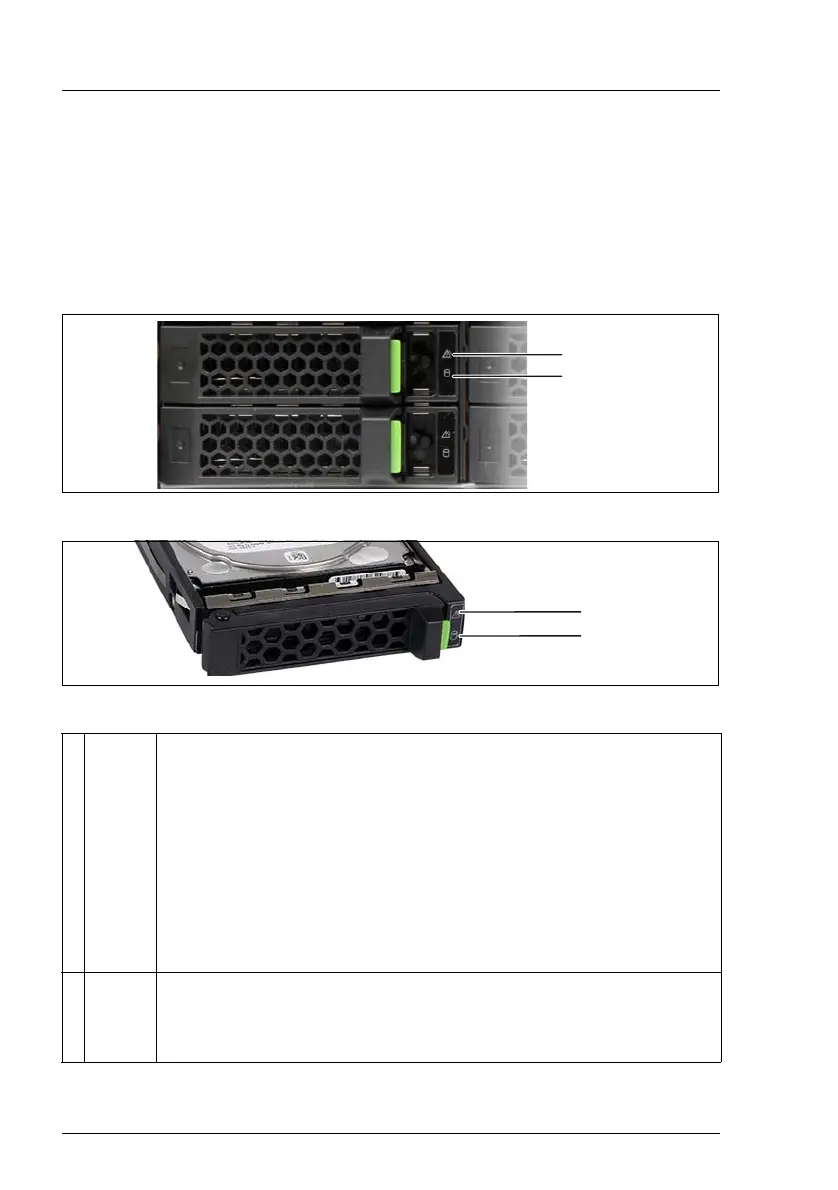

Figure 9: Indicators on the 3.5 inch HDD modules
Figure 10: Indicators on the 2.5 inch HDD modules
1LED
orange
HDD FAULT (orange)
(in conjunction with a RAID controller)
– Does not light: no HDD error
– Lights up: HDD Faulty or Rebuild Stopped (drive
defective/needs replacing, a rebuild process was stopped or
the HDD module is not correctly inserted)
– Slow flashing: HDD Rebuild (the data is being restored after
changing a drive)
– Fast flashing: HDD Identify
2LED
green
HDD BUSY
– Lights up: HDD in active phase
– Does not light: HDD inactive (drive inactive)
햳
햲
햳
햲
